Zeemo recycled wood roof trussel pine timber joist beams

I-joists are comprised of top and bottom flanges, which resist bending, united with webs, which provide outstanding shear resistance. The flange material is typically laminated veneer lumber (LVL) or solid sawn lumber, and the web is made with plywood or OSB. I-joists are used extensively in residential floor and roof framing
Availability:
Quantity:
Inquire Add to Basket

  • ZM-IJ14

  • Zeemo

Product Description

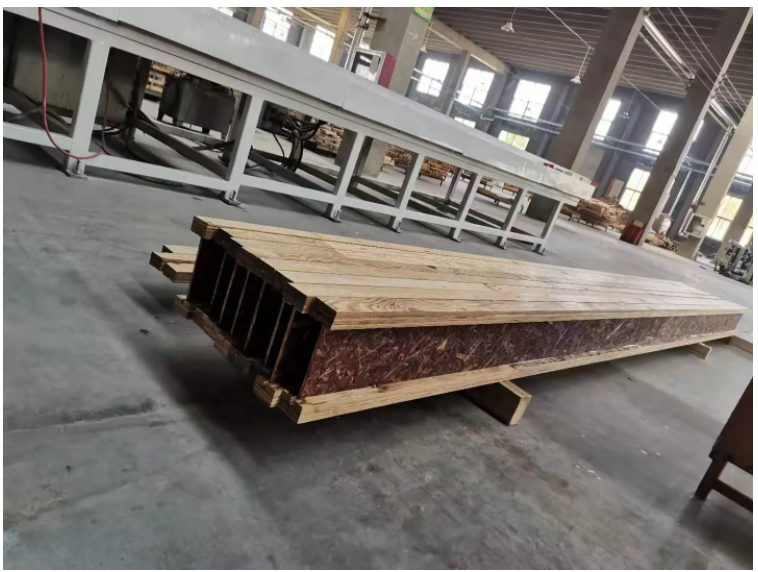

Recycled wood roof trussel pine timber i joist beams

Introducing our I-joists, a versatile and reliable solution for residential floor and roof framing.


Our I-joists are designed with top and bottom flanges that resist bending and are combined with a sturdy web, providing exceptional shear strength. The flanges are typically made of laminated veneer lumber (LVL) or solid sawn lumber, while the web is constructed from plywood or oriented strand board (OSB).


Engineered to withstand heavy loads and provide long-lasting support, our I-joists are the perfect choice for your construction projects. Whether you're building a new home or renovating an existing one, our I-joists offer superior performance and durability.


With their unique design and high-quality materials, our I-joists ensure a reliable and stable framework for your floors and roofs. Trust in our professional-grade I-joists to deliver exceptional strength and resistance to bending, providing peace of mind for your construction needs.

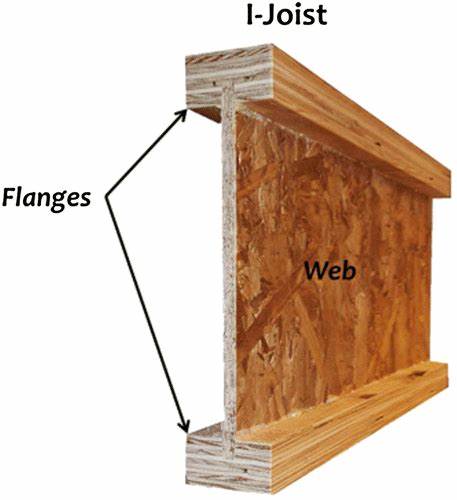

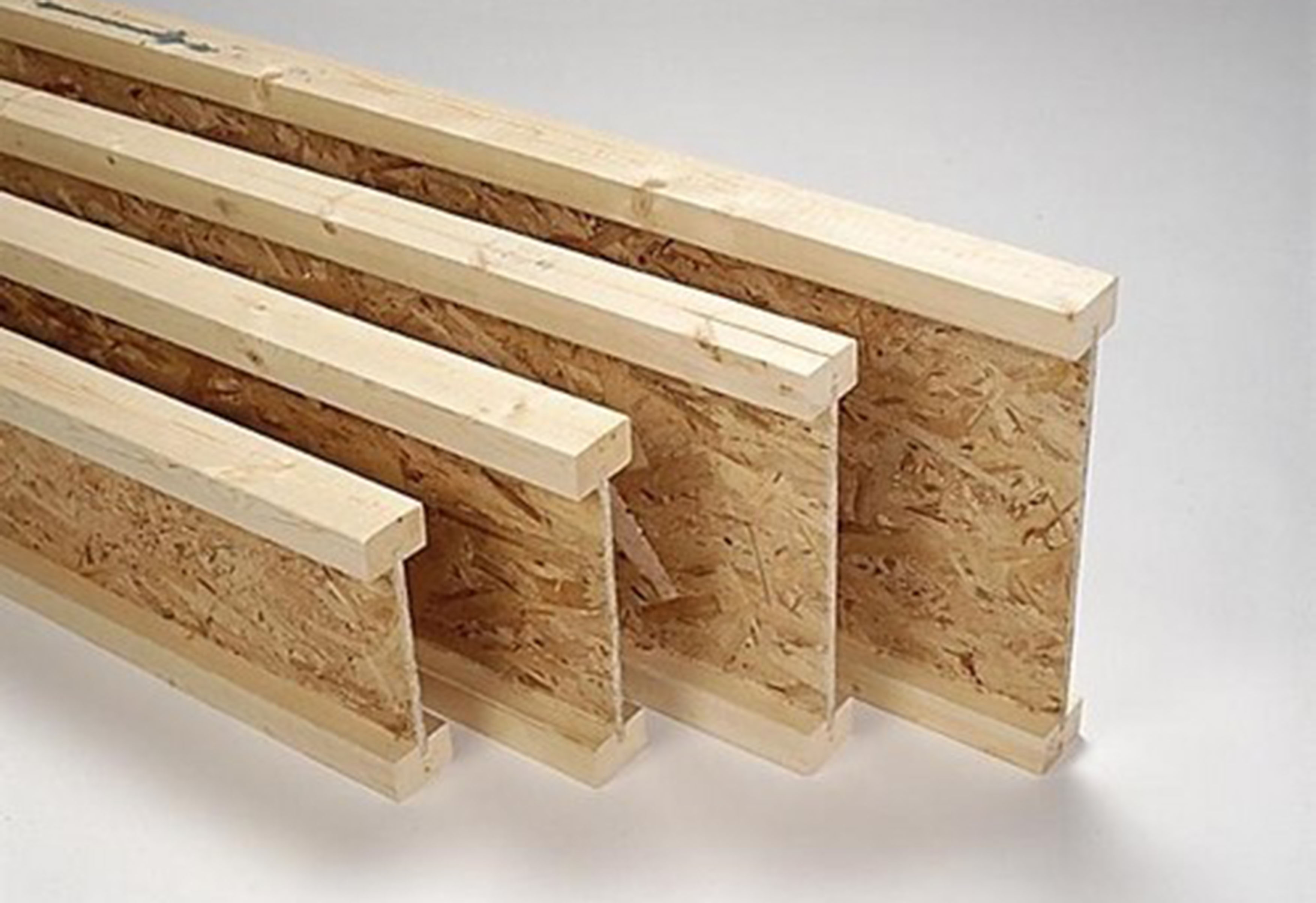

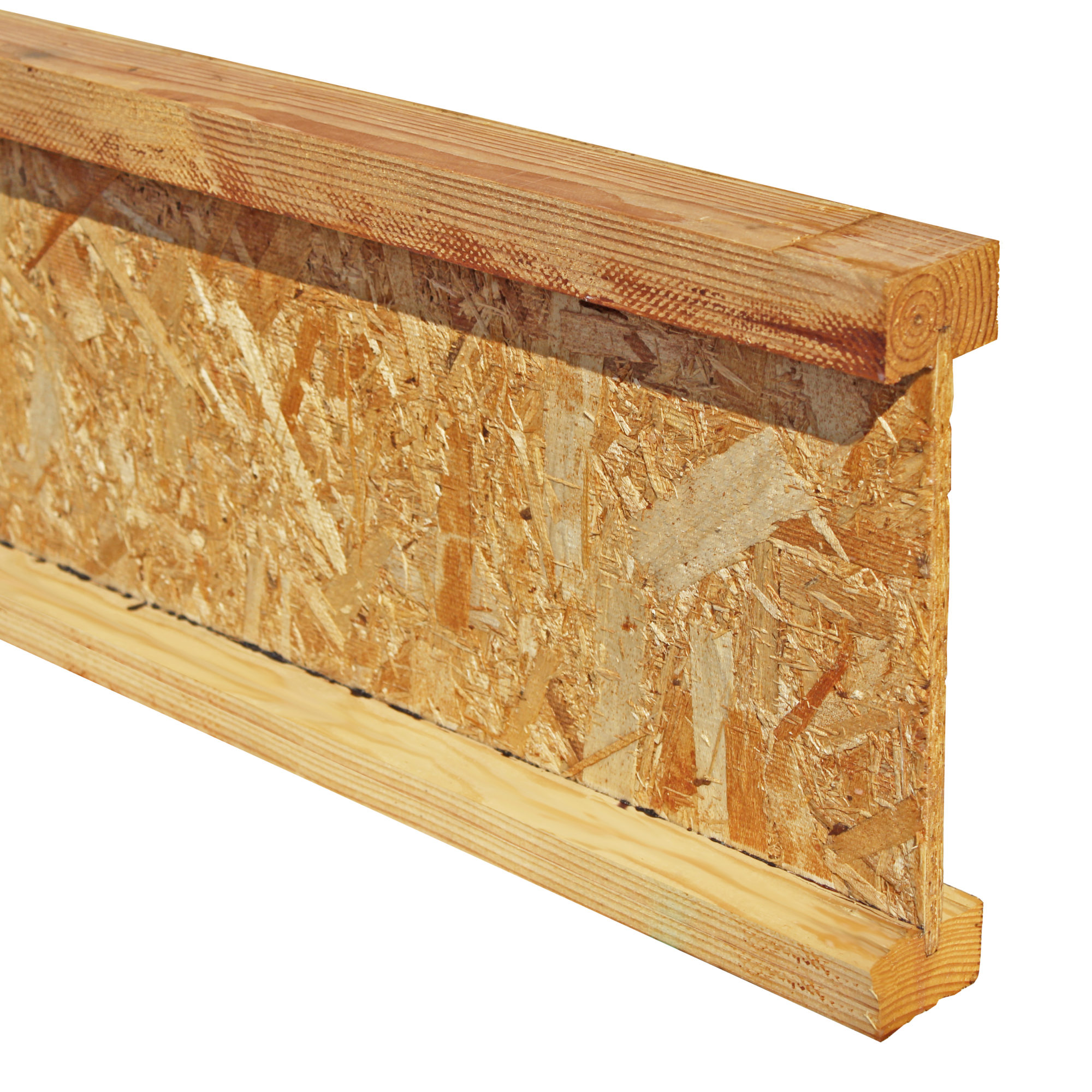

I-joists are strong, lightweight, "I" shaped engineered wood structural members.
The robust combination of structural characteristics results in a versatile, economical framing member that is easy to install in residential and light commercial projects.
Specification
Height
300mm, +/-0.5mm, as request.
Flange
90/65/63/45mm x40/45mm, +/-1mm
Thickness of web
10mm/12mm, +/-1mm (or as request)
Length
1000-12000mm
Weight
4.3-5.6kg/m
Readily length
3m,3.6m,4.2m,4.8m,5.4m,6m,6.6m,7.2m,8m,9m,10.4m,11.4m,11.7m,12 m, etc.
Physical Properties

Test Items
EN request

SGS Test Data
Allowable Values DIN 1052-1:1988-04
Limits of load-bearing Capacity DIN 1052:2008-12/Eurocode 5
Shearing Resistance (KN)
11 KN
23.9
30.8 KN
Bending Resistance (KN)
5 KN.M
10.9
16.2 KN.M
Bearing Resistance (KN)
22 KN
47.8
53.2 KN
Advantages
1. Low cost, high stiffness, light weight
2. Exchangeable, achieve E0 environmental protection standard
3. High degree of standardization system production components, reusable good
4.High rigity, long service life.
They are ideal for long spans, including continuous spans over intermediate supports. Because I-joists are straight and true, it's easier for builders to avoid crowning and maintain a level framing surface. In addition, wood I-joists are typically stocked and readily available in depths that meet the needs of residential framing.
Installation

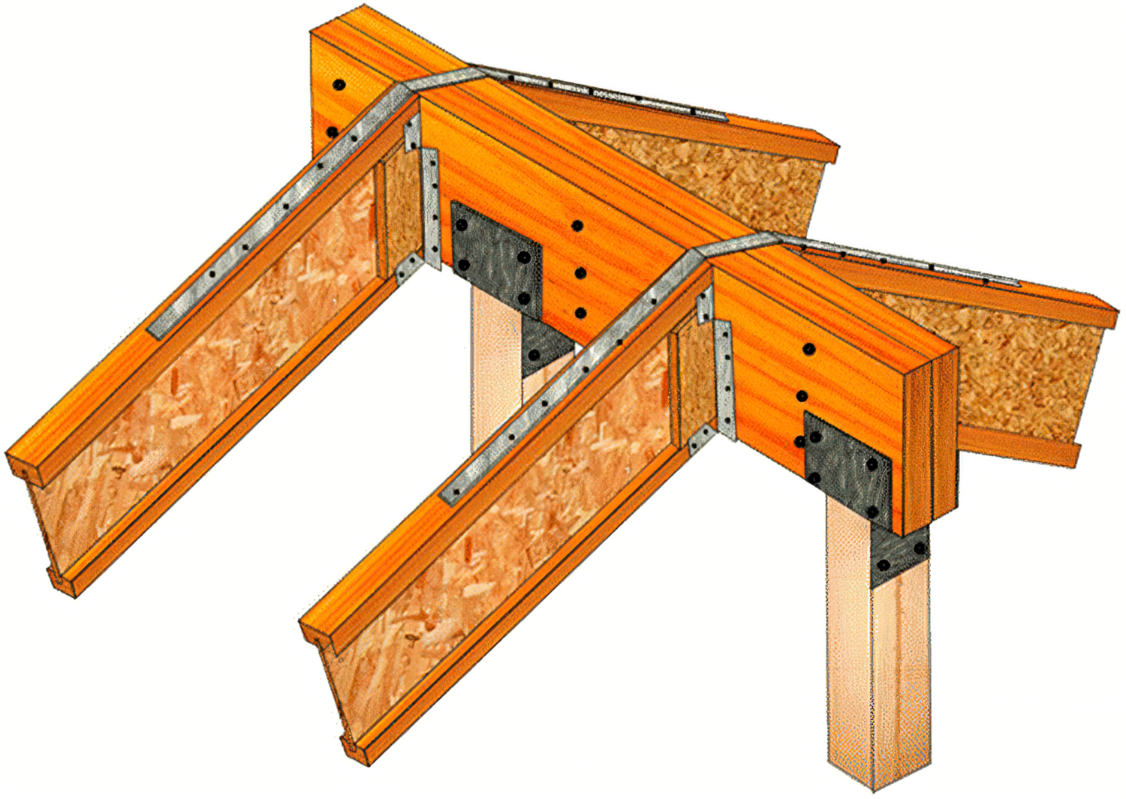

Connect with main beam

1. holes, cuts and notches.
                      2.bearing;
                      3.bracing;
                      4.blocking;

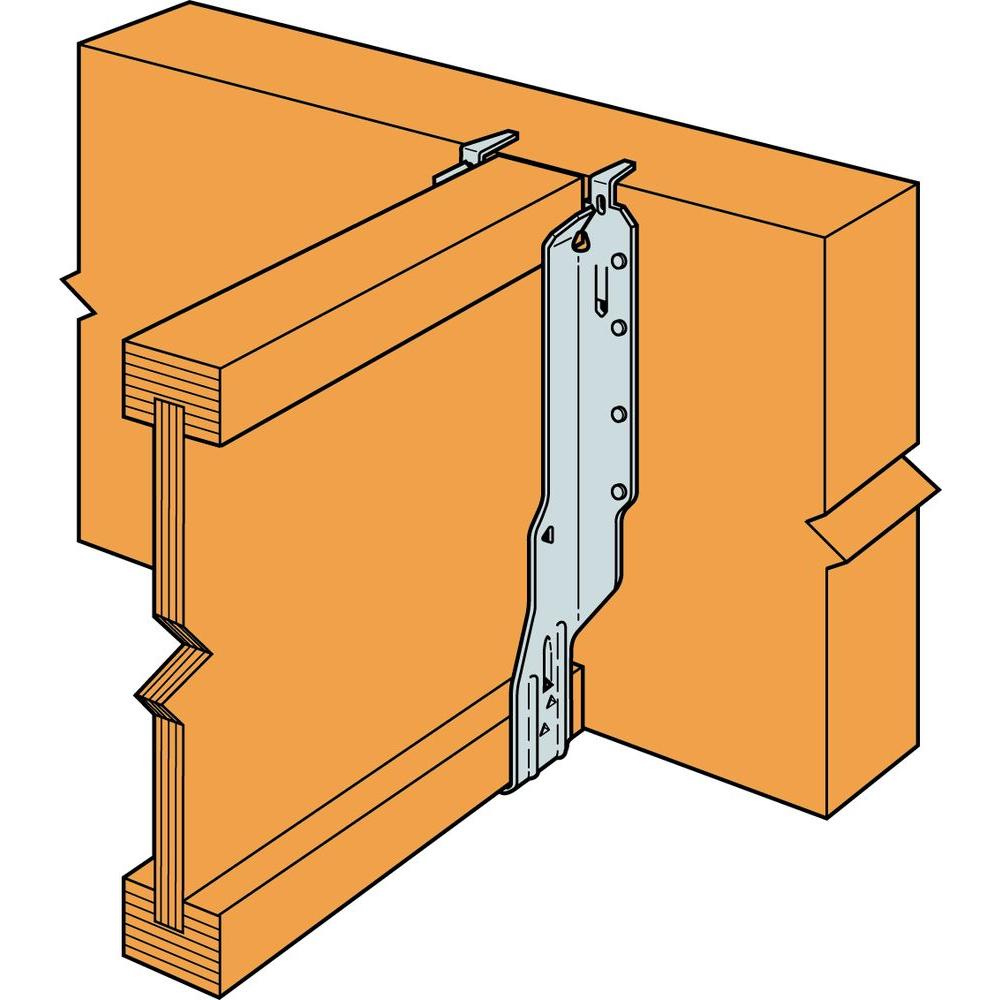

                      5.hanger hardware installation;
                      6.rim-joist installation.

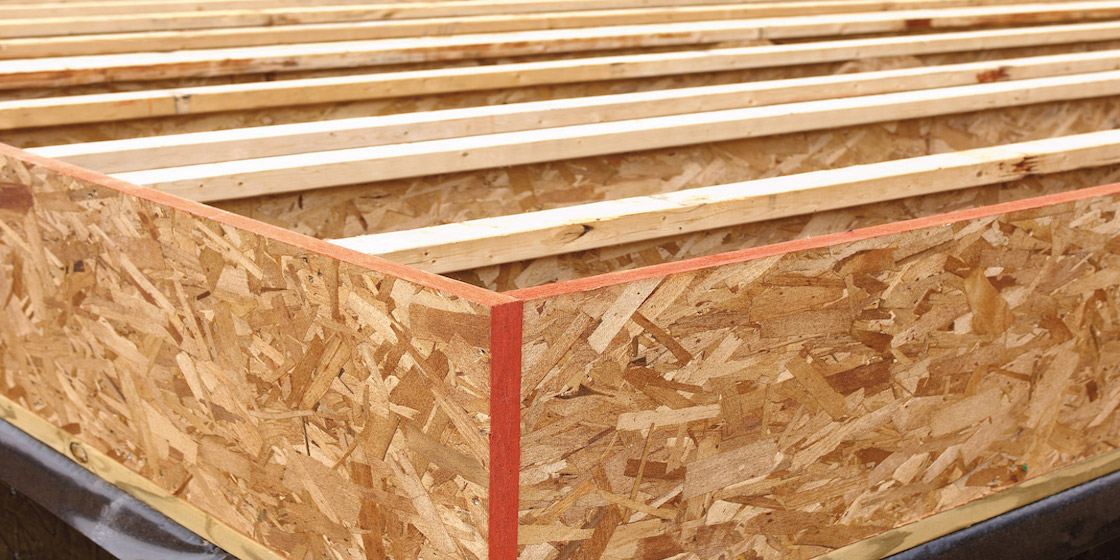

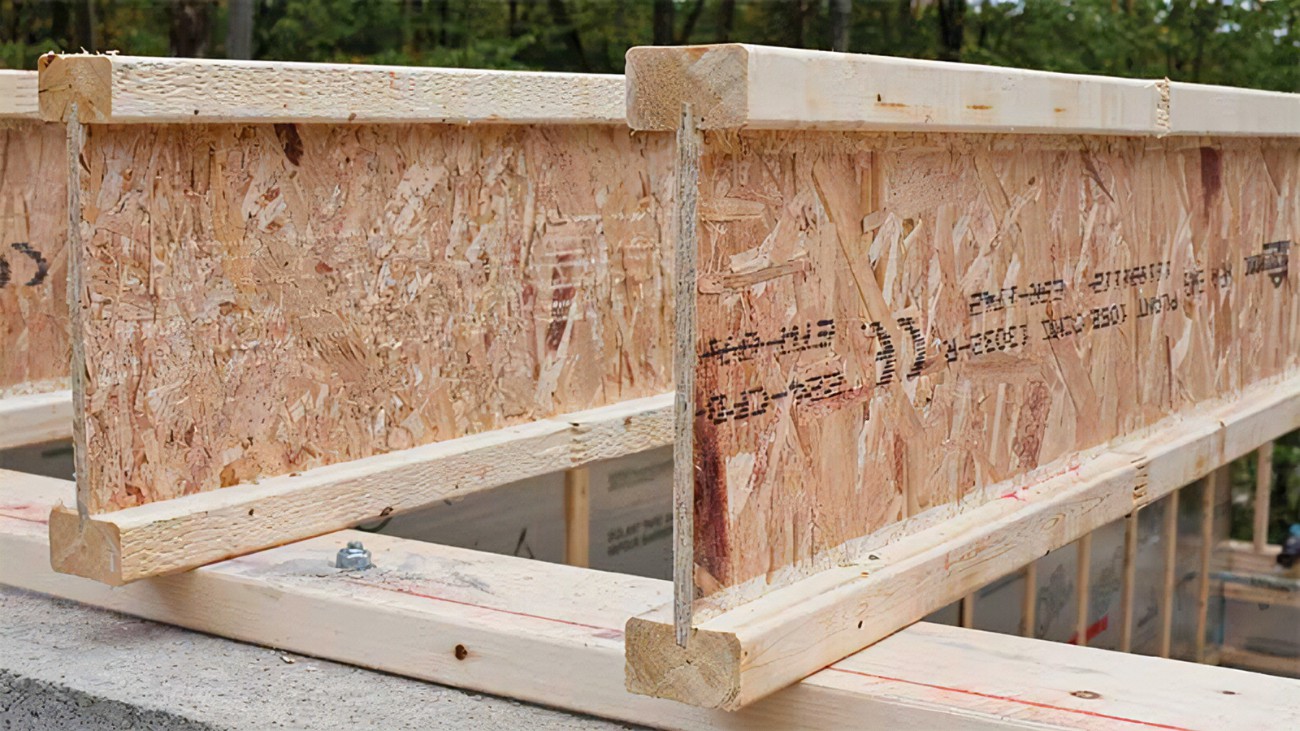

Connect with rim


With strong tie to make sure the safety

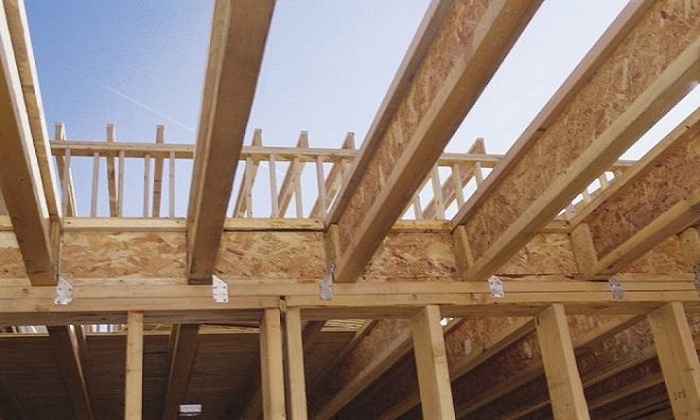

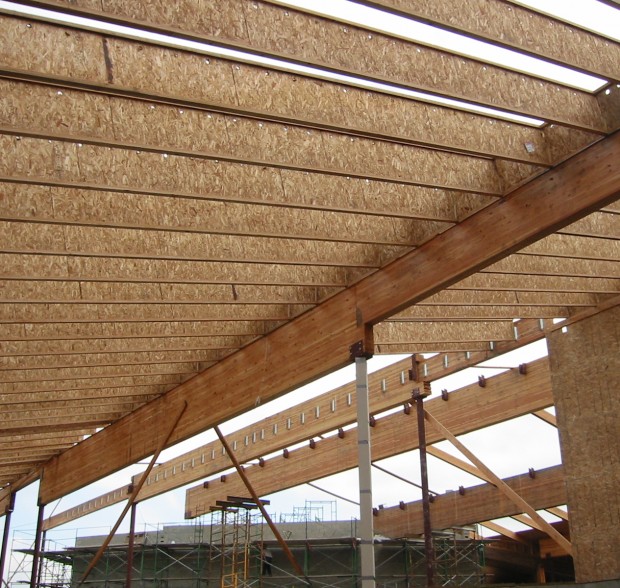

Product Application

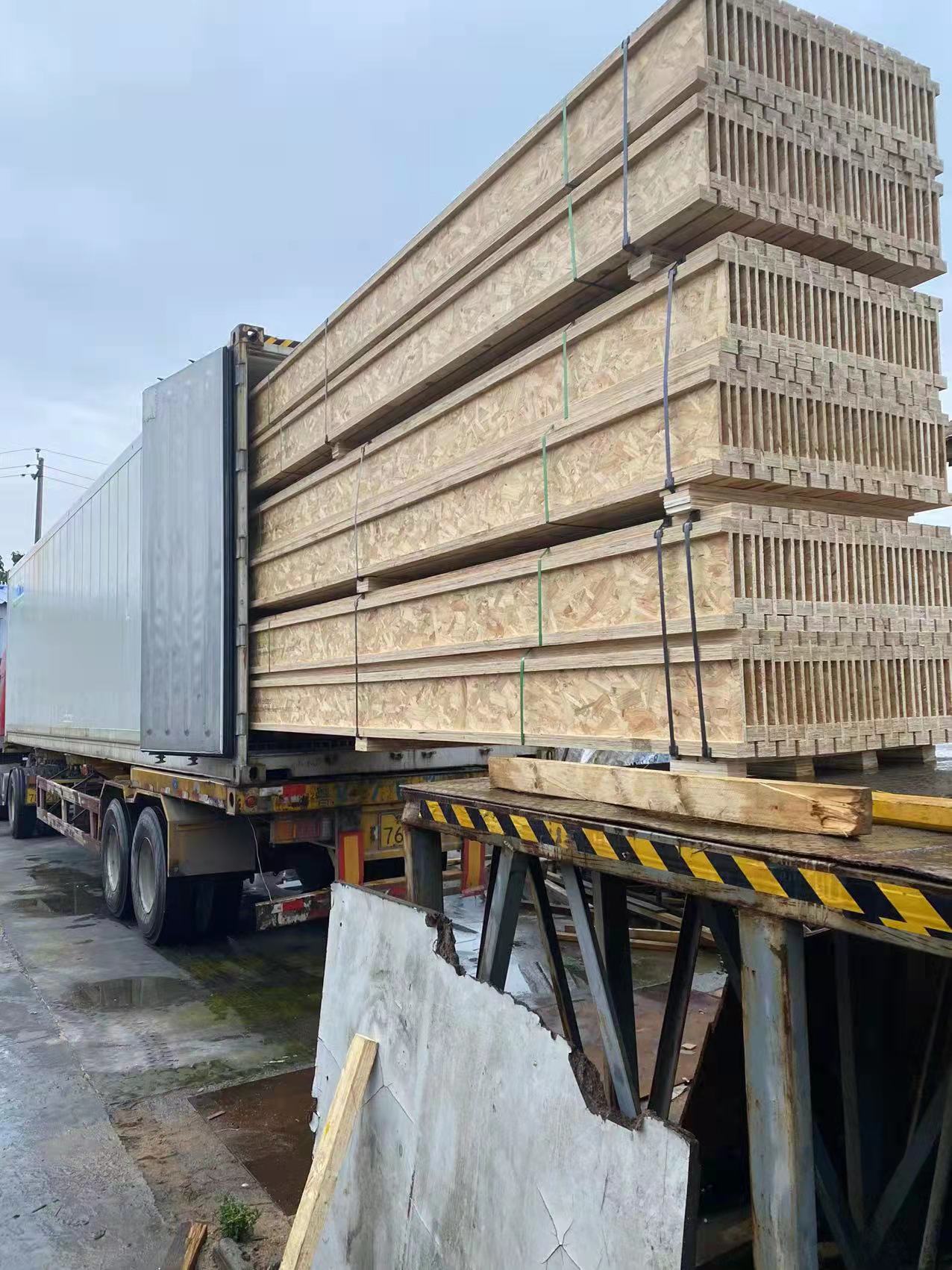

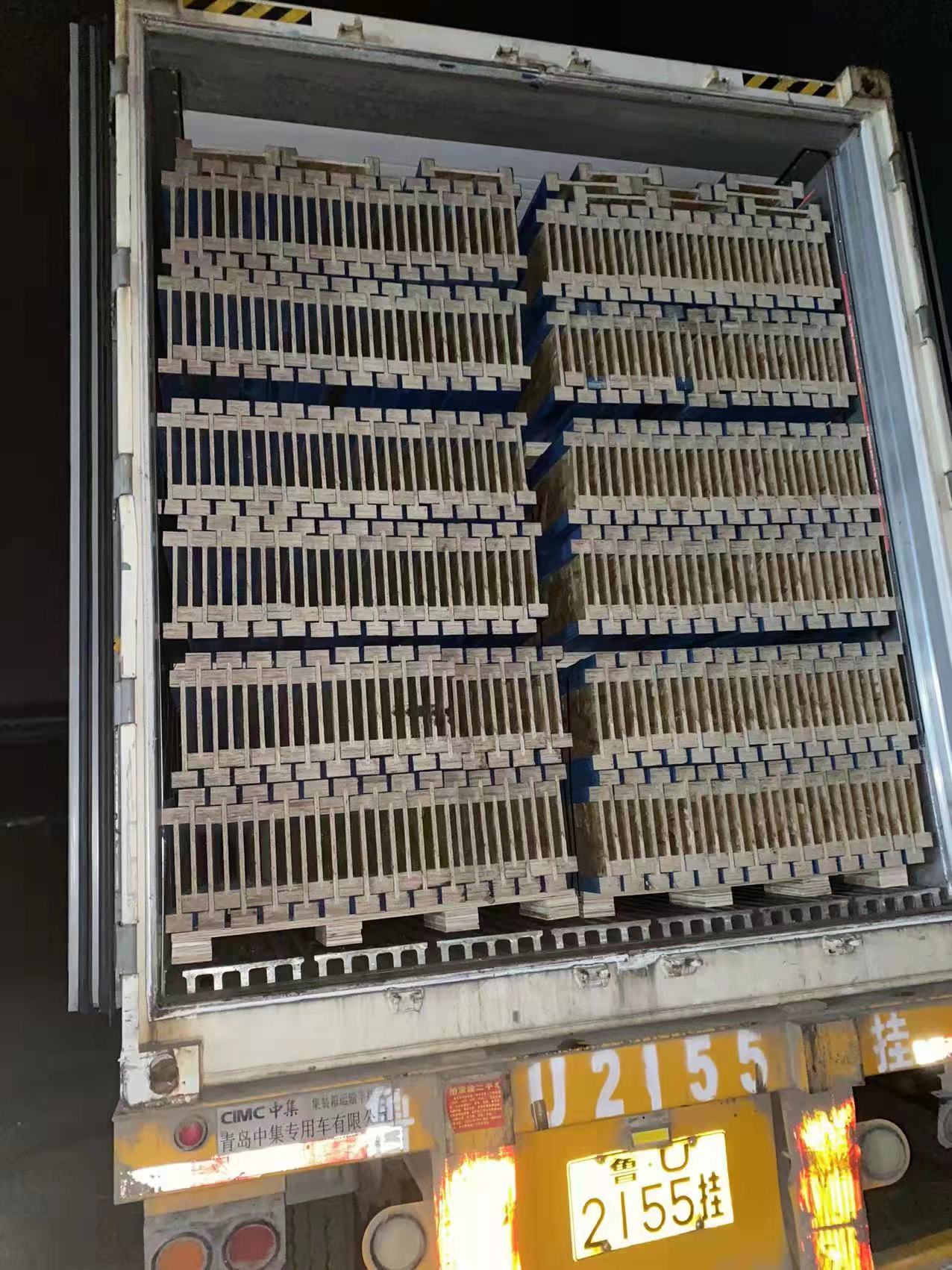

Packing & Delivery
Packing Details:
1. plywood pallets, pallet leg 80mm, outside pack with plastic bag & plasterboard, then fasten with belts.
2. packing in pallet, 105pcs / pallet or special logistic packing according to customer request.
Delivery Details:
5-10 days after order
Company Profile
Shandong Zeemo Construction Technology Co Ltd is a member of Dongstar Group , a multiple industry group in filmface plywood , construction formwork system , Scaffolding & accessories. President Mr. Wei, is nominted as the president of China Shuttering Board Committee .
Our core is integrating these formwork products to compose an optimium solution.
Our intelligent logistic net can deliver products timely & cost effectively.
Service team will follow all the way.
CULTURE
we are one family, members care each other, cooperate intimately, we sharing dream, idea and love in family. We holding same duty-- to serve clients .
ENTERRISE RESPONSIBILITY:
we cherish clients' trust , oriented to solve the solution for project.
Vision is making the project Zero Emission, Efficient, Money Saving ,Outstanding.
Certifications
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.

Q: How long is your delivery time?
A: Generally 5-10 days if the goods are in the stock, or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples？Is it free or extra?
A: Sample is chargable, also the freight.

Q: What is your terms of payment?
A: Payment<=1000USD,100% in advance. Payment>=1000USD, 30%T/T in advance, balance against copy BL.
