Self-Climbing Attached lifting scaffold system for high concrete construction building

Availability:
Quantity:

Product Description

facade climbing

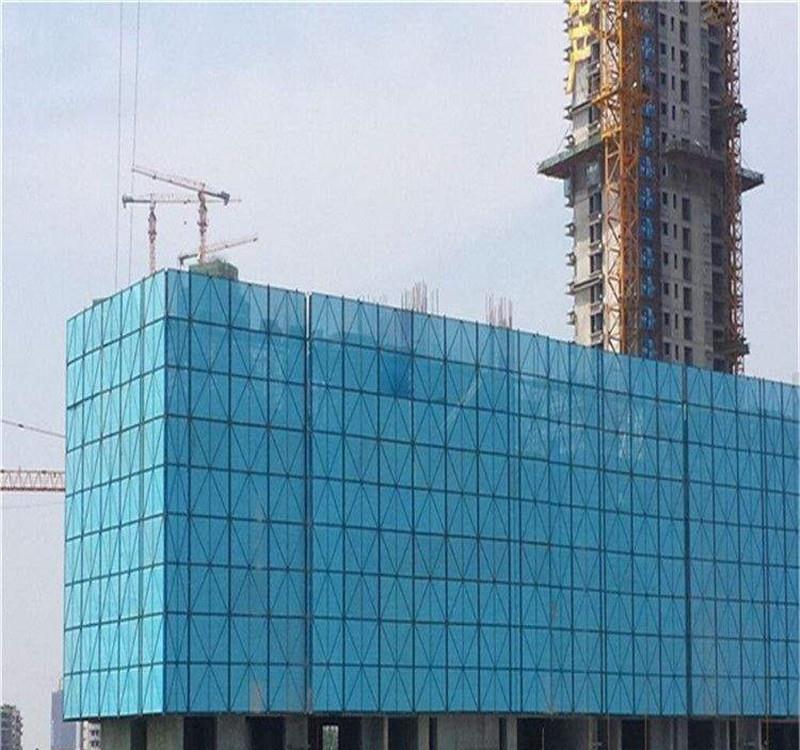

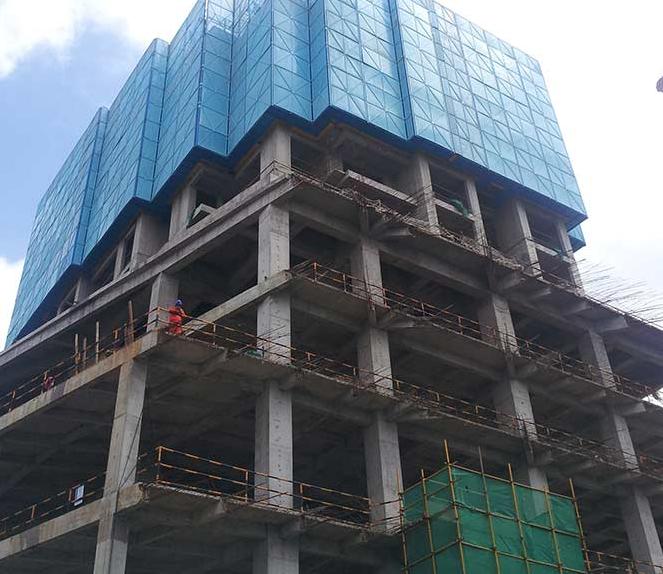

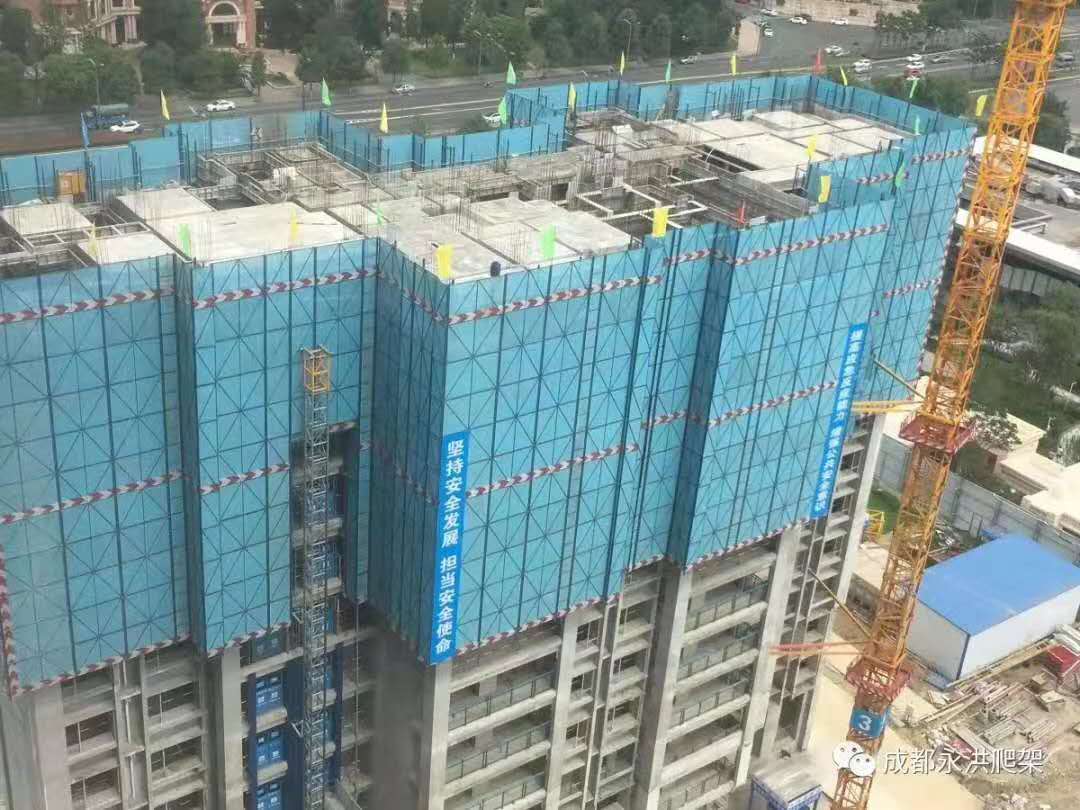

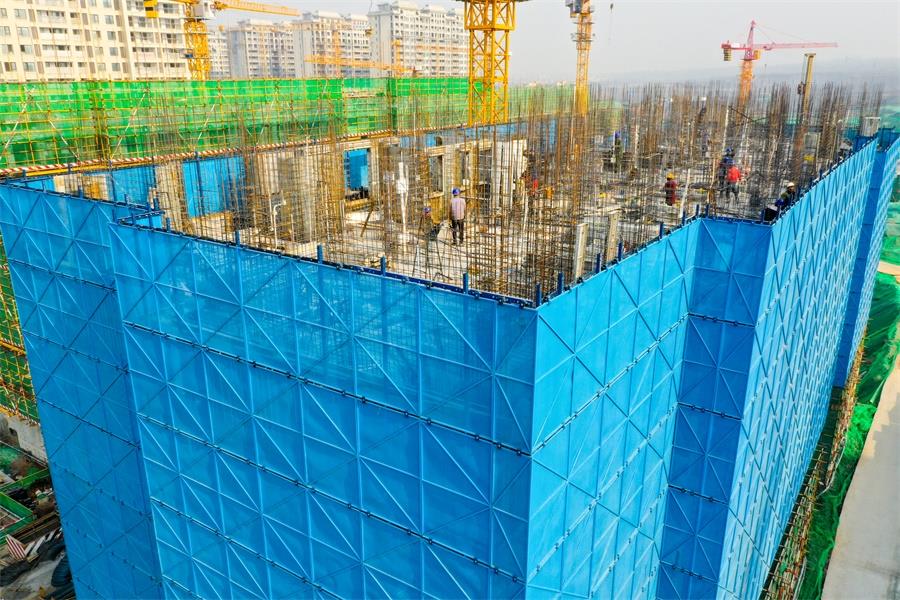

The attached climbing scaffold is an auto-climbing device by hanging on the wall. With bracket and screen, the equipment can protect labor working at hight same ground.

Gerenally, this equipment consist of 4 parts, bracket system, anchor system, anti-troppling, anti-falling, power system, control system.

Protection screen is made of color plate, with grid mesh. Fireproof, wind proof.

The discharging unit is separated from Bracket system. Can coouple them in multiple way to meet complex project plans.







R-C (6)


The equipment with high performance in: simple structure, easily assembled,
efficient operation, safe platform.

Its power comes from hydraulic or electronic
system which can elevate the steel rail and the whole. No need hoist crane in the
process of climbing.












Product Details

1

_02

Specification
ZM-ZPJ-02 climb scaffolding parameter table
NO
Item
Unit
Criteria
remarks
1
Frame height
m
<5 times the height of the floor

2
Frame width
m
0.6-1.2m

3
Support span
m
≤ 7.0m, curve or polyline, 5.4m

4
The length of the cantilevered end of the frame
m
≤2.0m

5
Frame step distance
m
1/2 floor height of the working floor

6
Fall arrest device

Adopting the no-fall concept, each position guarantees 3 independent devices

7
Self-weight of the frame
KN
It is about 5.8-7.5kN per linear meter

8
Hydraulics

5.0t, a stroke distance of 300mm, motor power 1.5KW, 380V/50Hz, pump displacement 1.5L/min.

9
Frame body lifting control mode

Remote control, two main remote controls and six small remote controls in each building

10
Synchronous lifting load control of the frame

When overload or loss of load is 30%, it will automatically alarm and stop the whole group

11
Deviations are allowed in embedded holes
mm
±50mm

12
Operational layer carrying capacity
KN/m2
Three layers are allowed to work at the same time, and 2.0KN/m2 is allowed

13
Scissor braces
m
Two layers are allowed to work at the same time, and 3.0KN/m2 is allowed

14
Number of attached supports

The distance between the scissor supports is 4.5m, and the angle with the horizontal plane is about 60°

15
Attachment supports

3 pcs

For more information please contact our engineers

Conditions of use and technical requirements

1. Conditions of Use
1) Working environment temperature: -20°C~+50°C;
2) The working power supply is three-phase 380V±5%, and the frequency is 50±1Hz;
3) Meteorological requirements: wind < level 5, visibility ≥ 50m;
4) There is no explosive medium, no corrosive metal substance and no dust that destroys electrical insulation and conductivity in the surrounding air;
5) Relative humidity: ≤80%.
2. Attachment technical requirements
1) When fixed: ensure that the three attached supports are effective;
2) When the lifting state: ensure that the number of attached supports of the restraint guide rail is not less than two;
3) The spacing between the upper and lower adjacent attachment supports: ≥2.8m;
4) Concrete strength of the superstructure: ≥10MPa;
5) Allowable deviation of embedded hole: ≤±50mm.
