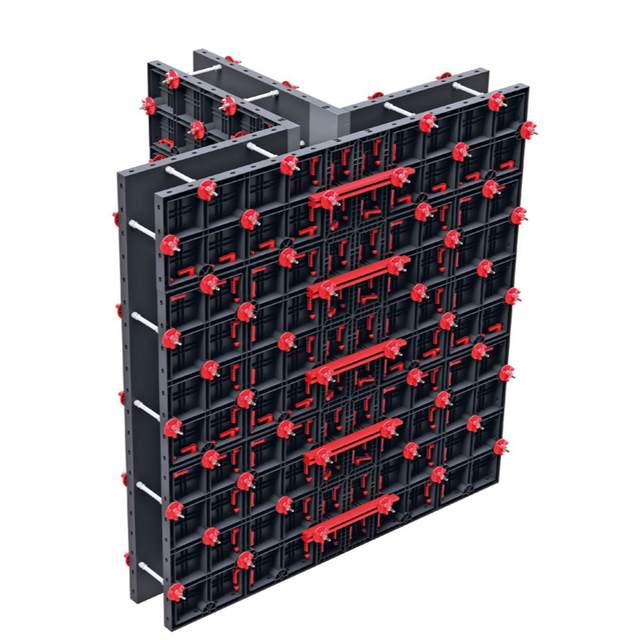

ZEEMO Plastic formwork ZP60 is recognized as the lightest formwork system due to its medium size panel design and the application of ABS (Acrylonitrile Butadiene Styrene).

It’s extremely easy for use due to modular design, all parts connected with universal handles even by unskilled workers. Versatile for Walls, columns, slabs can be efficiently formed with only a few panel sizes. Mostly use in residential project, apartment, canal infra project.

Compared with the traditional timber or steel systems, modular formwork is handier, more cost effective and faster to set up, save time and labor charge. Modular formwork has panels of various sizes, fastened together by means of fast-lock nylon handles. Thanks to the several possible panel combinations, and special inner and outer corner elements, the possible wall thickness goes from 10 to 40 cm

Features

Universal forming application

Different sizes configuration can be achieved by just several panelsizesWide application in column, slabs, beams, walls , fence walls, foundations, basements, elevator shafts, swimming pools as wellas canal etc.

Multiple savings on time & labor cost

 Capable to build modular house with one cast for both wall & slabThe biggest panel (1200x600mm) weights 9.7kg only, thus can beeasily handled by manpower, and saves crane time

 Fast erection handle ensure high assembly efficiency, even noexperienced workers required

 Non-water-absorption panel produces smooth flat concrete withoutrelease agent assistance

 Easy stripping from concrete surface, even no plastering workrequired

Long service life, recyclable

 Can work in hot and cold areas, proven by SGS laboratory test andworldwide tough sites environment

 Modified thermoplastic material and high rib design enhancespanel' s strength, up to 100 uses when correctly cleaned andproperly used

 Easy cleaning by water, and no dry environment required forStorage

 Anti-corrosion from seashore, moist areas and even chemicals

 Friendly to environment, can be recycled by professional recyclingPlant

Details

Panel sizes

1200x600mm is the most popular panel size which is often applied in major shuttering areasThe main panels whose widths ranging from 400mm to 180mm with 600mm height, make them possible configuration to shutter the remaining areasSmall size panels are the additive covering for small holes or areas50mm in their sizes increment

High strength

Intensive high ribs design, acts as built in walings to increase panel's strengthThe depths of ZP 60 panel reaches 75mm 60KN/M2

Pre-assembled panels

Once pre-assembled, no need to dismantle them all for nextcastingsYou can keep several preassembled panels together ascomplete section for transportation, assembly and strippingEasy handling panel

Advantages

Application
plastic formworks are suitable for concrete columns,pillars,walls,and foundations directly onsite.Their modularity allows to satisfy every construction and planning needs.

Packing & Delivery

USER MANUAL COLUMN

WALL

ZP60 panels can produce various sizes and shapes of walls.They can be widely used in houses, commercial buildings, foundations, elevators shatfts, windows & doors and swimming pools etc. after properly planned by your engineer or ZEEMO technical team.

Different wall thickness can be easily achieved such as 100mm, 150mm, 200mm, 250mm at50mm increment.

SLAB

Beam
