Zeemo formwork adjustable column clamp for concrete square column mold


它是一个模板支架,用于承受浇注柱子时的字面压力,它由单杆和销子组成,1 套表示 4bar + 4 销子。通常 1 根柱子需要 6-7 套,(柱子组:500*500* H 3000mm )

Availability:
Quantity:
  • ZM-CC31

  • ZEEMO

Specification
Adjustable column clamp
adjustable column clamp
Clamp specifications(mm)
Model(#)
Total Length(mm)
Weight(kg)
400-600
8.0# steel
1161
21.6
500-800
8.0# steel
1361
26.2
500-800
10# steel
1361
48.14
700-1000
10# steel
1647
51
900-1200
10# steel
1847
57.2
1100-1400
10# steel
2047
65
1300-1600
10# steel
2247
70.4
1500-1800
10# steel
2447
115.8
1900-2100
10# steel
2747
129.8
Product Description

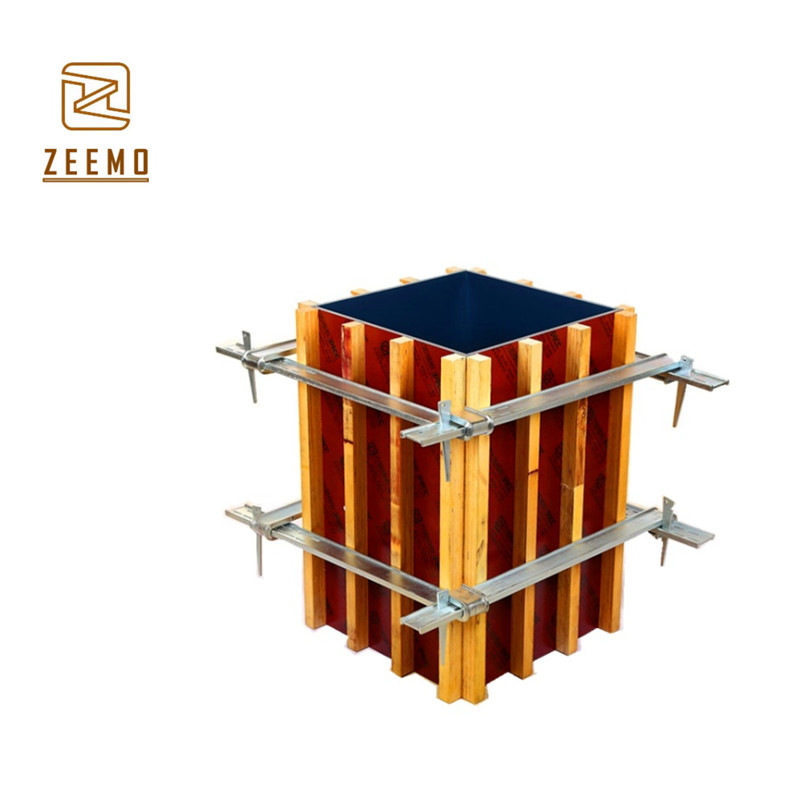

ADJUSTABLE COLUMN CLAMP
Its a formwork bracket, to withstand the literal pressure when pouring a column, Its consist of single bar and pin , 1 set means 4bar + 4 pin.Normally 1 column require 6-7 sets , ( column set : 500*500* H 3000mm )

column clamps

Feature
1.Free of Tie Rod

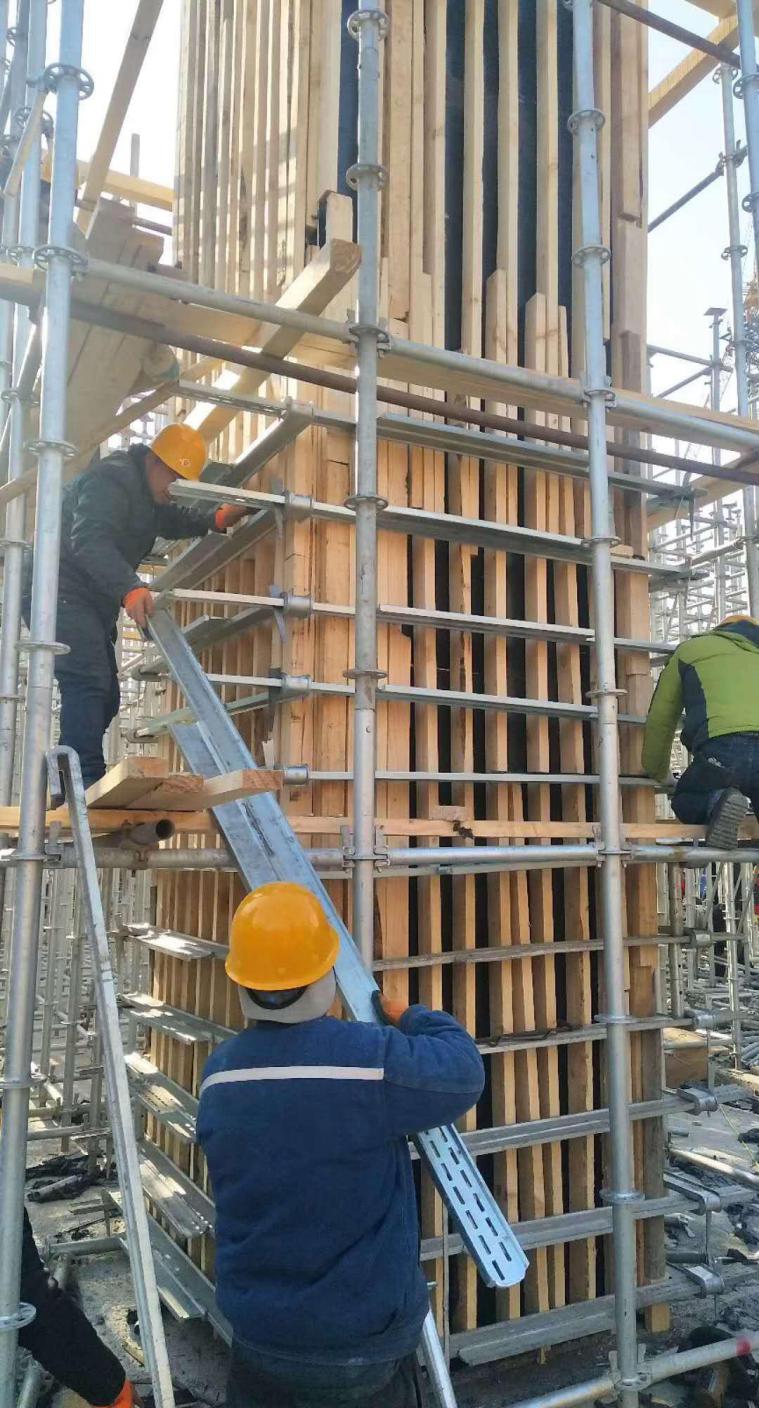

Adjustable column clamp is free of tie rod, applicable up to 3m width.Just hammer  the pins , that's all, save time and labor.
Moreover, the clamp can make sure the column shape and size, no deform happens.
galvanized column clamps
fare faced concrete
2.Adjustable size
There are double slots, width 25.4mm space 12.7mm, then every mm can be reached.

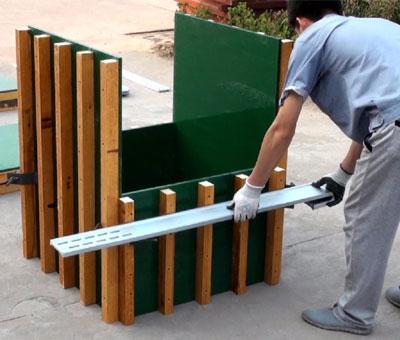

you can adjust the size till it fix to your formwork.
e.g. when you pick clamp 500-800mm, you can work for column width 500*500mm
or 750*750 mm or 620*800mm
adjustable size
high quality
easy install
steel bar
3.Long Life Service

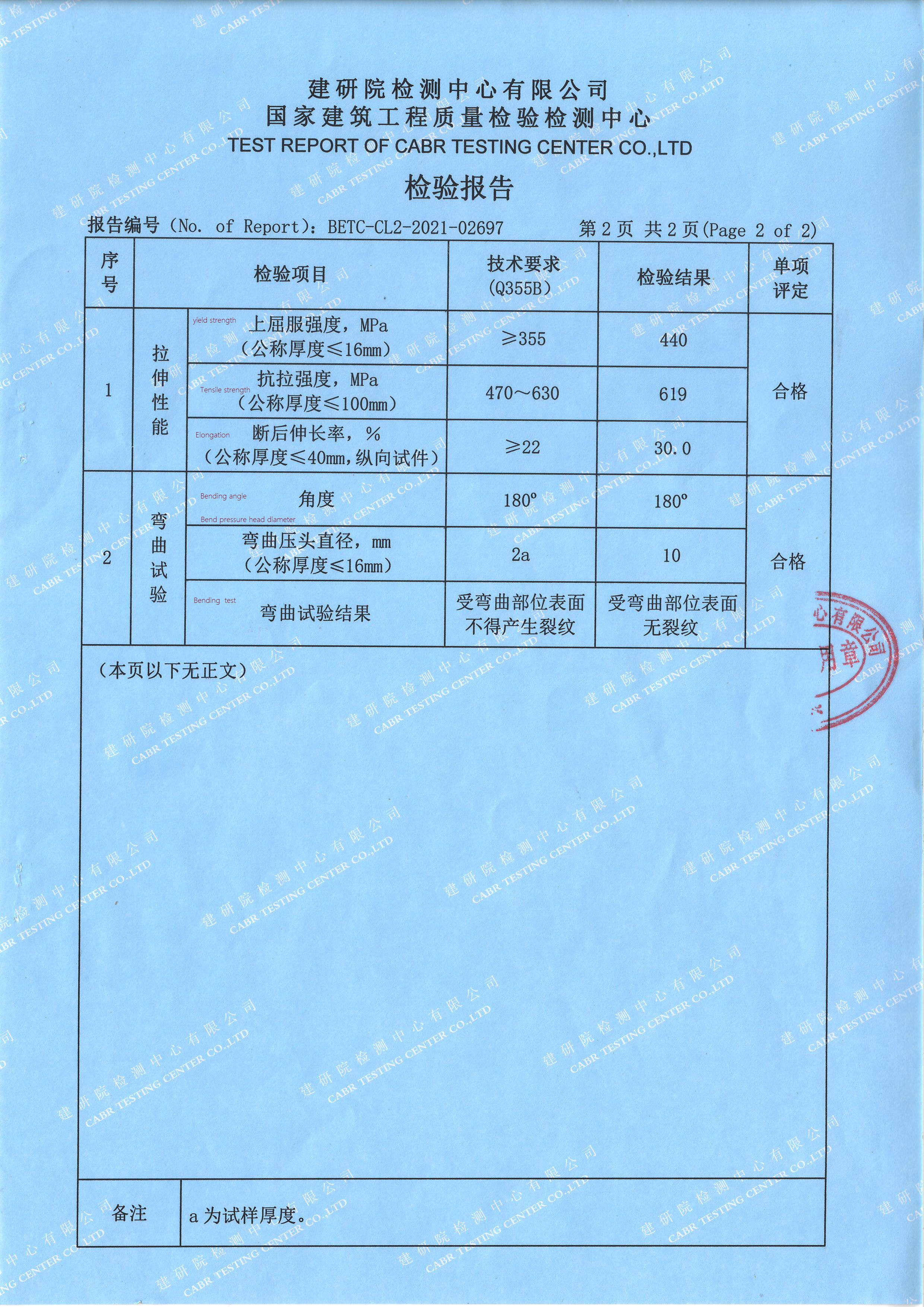

Made of Steel Q355B, surface hot dip galvanized, no rusty. Strength 355 MPA.Life span up to 15 years or more.

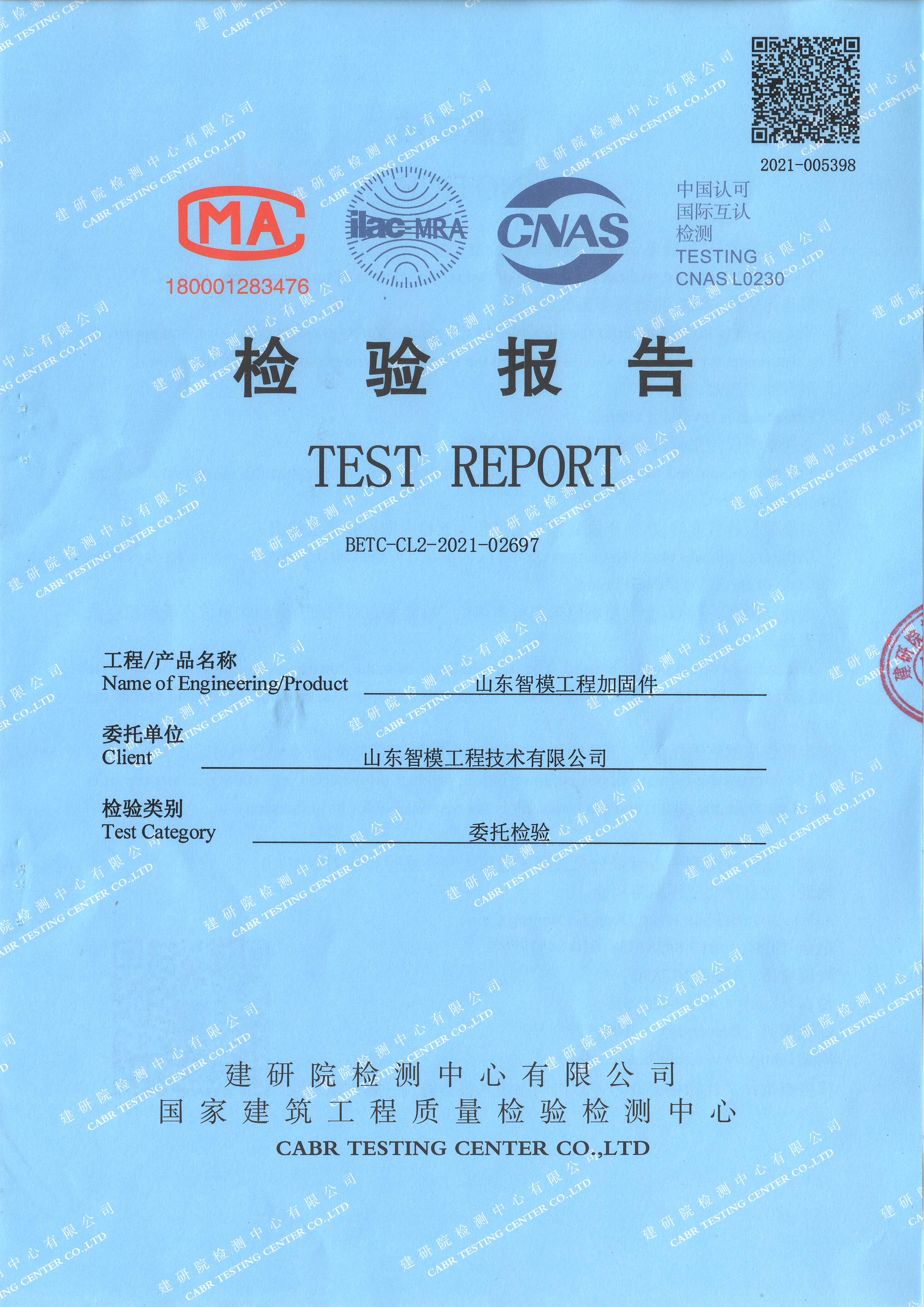

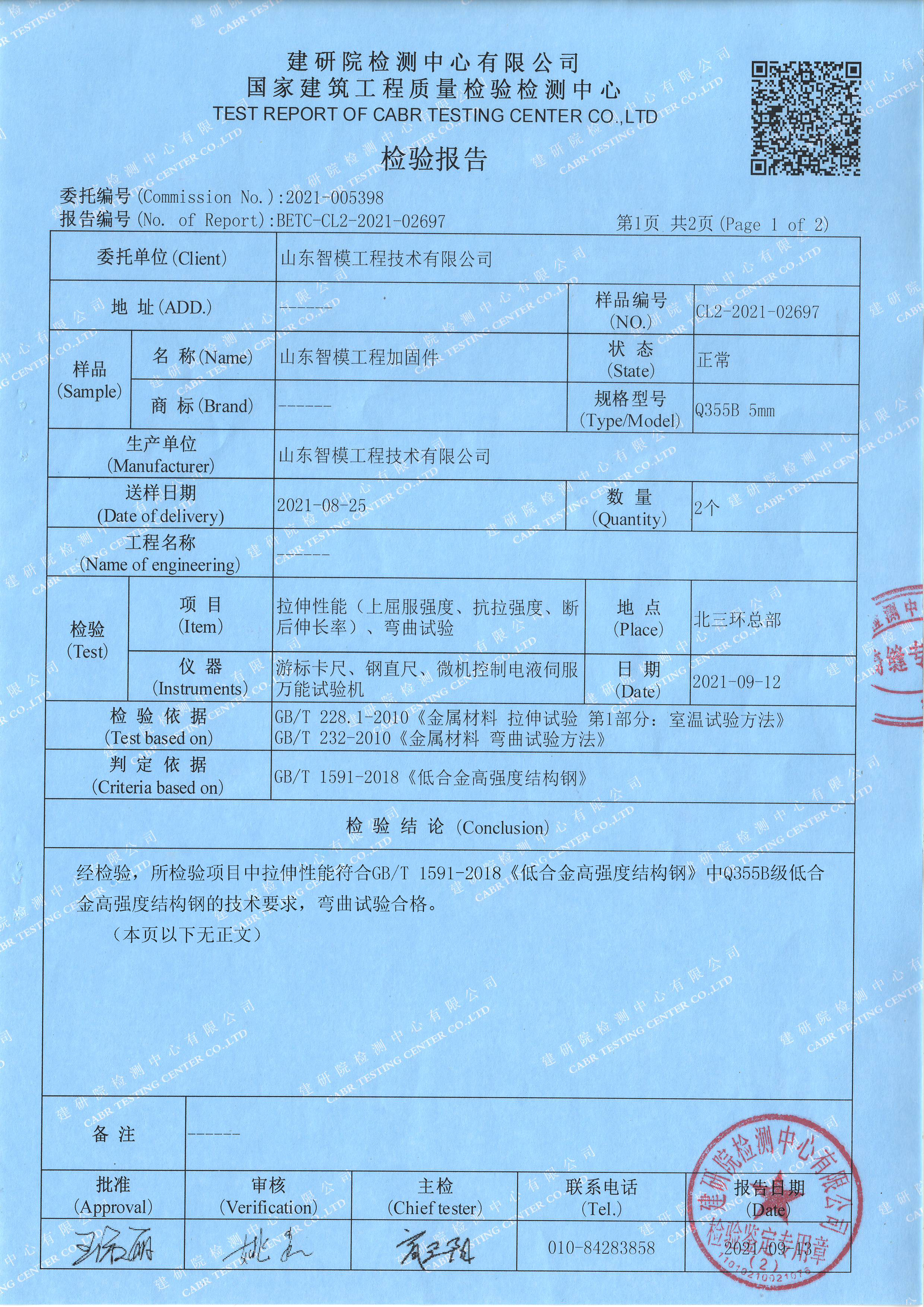

Certifications
Packing & Delivery
column formwork
metal column clips
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

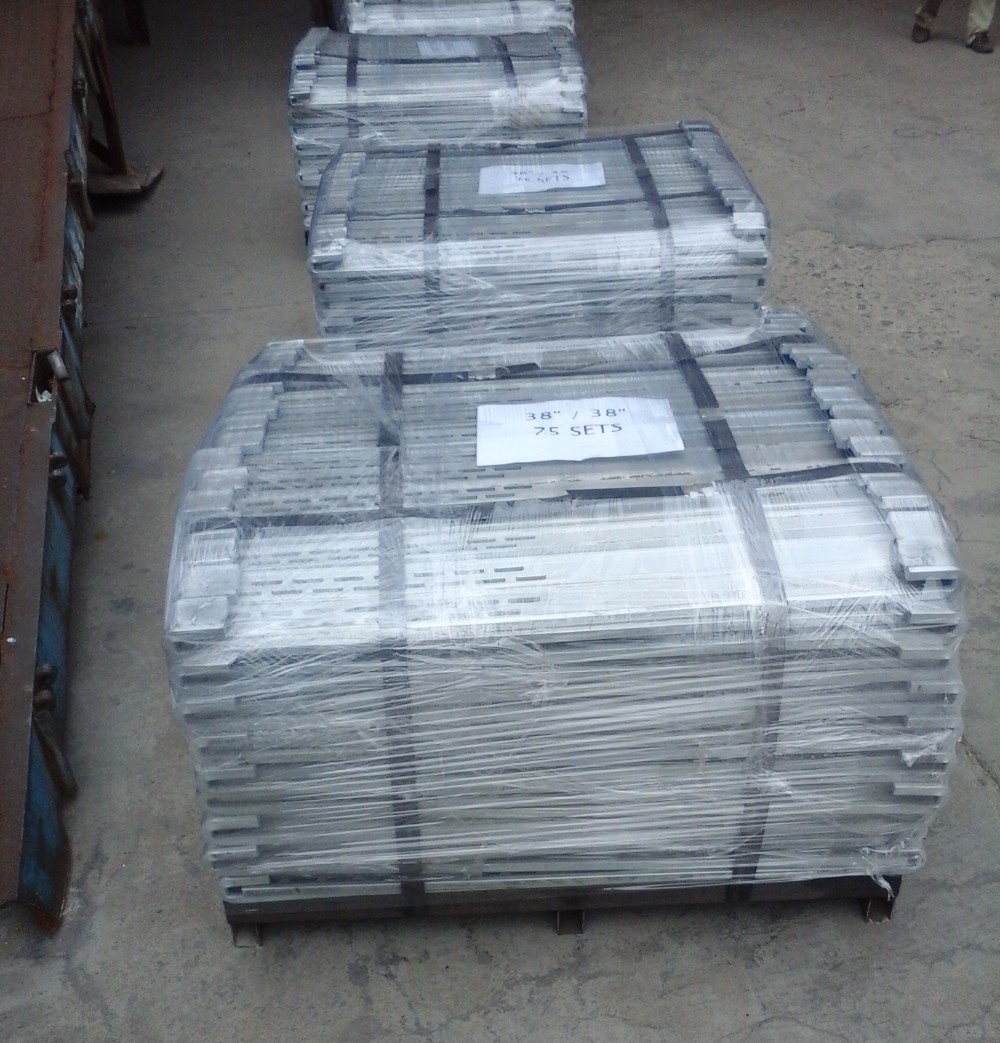

Packing details: Export package covered with waterproof shrinking film and craft paper, bundle with steel stripes outside or as customer request.
Delivery Details: 5-10 days after order
