Zeemo cylindrical plywood building formwork

Zeemo 圆柱形胶合板建筑模板,用于圆柱形混凝土成型。

Availability:
Quantity:
  • ZM-CC13

  • Zeemo

Product Description

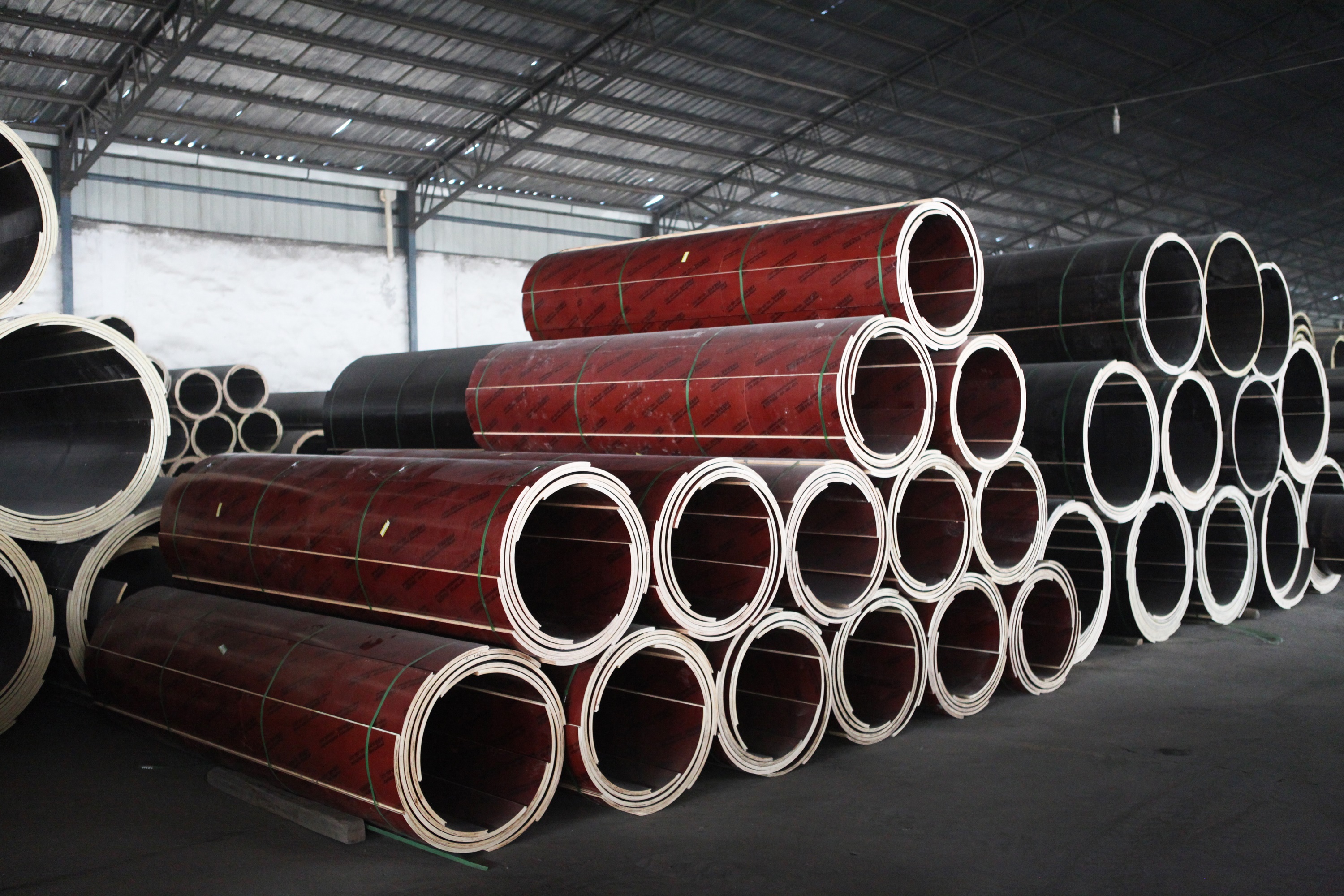

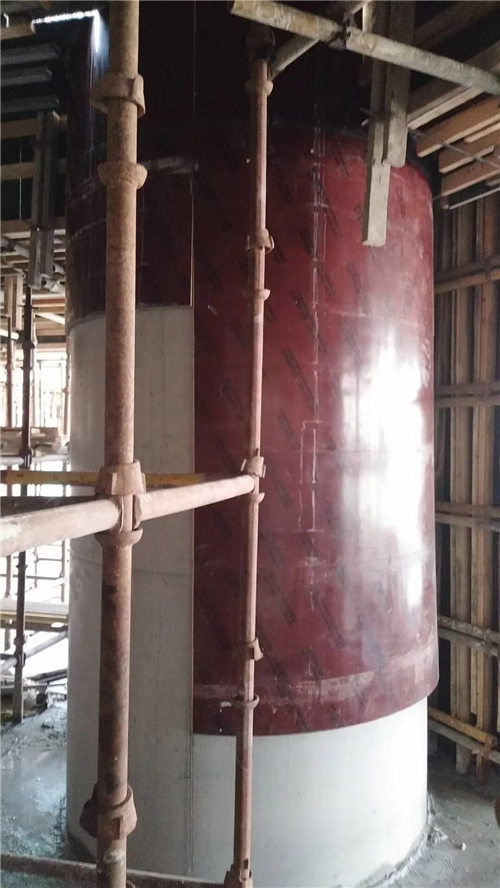

Zeemo plywood circular column formwork

For concrete forming of circular column
circular column
screw
steel bundle
film faced plywood

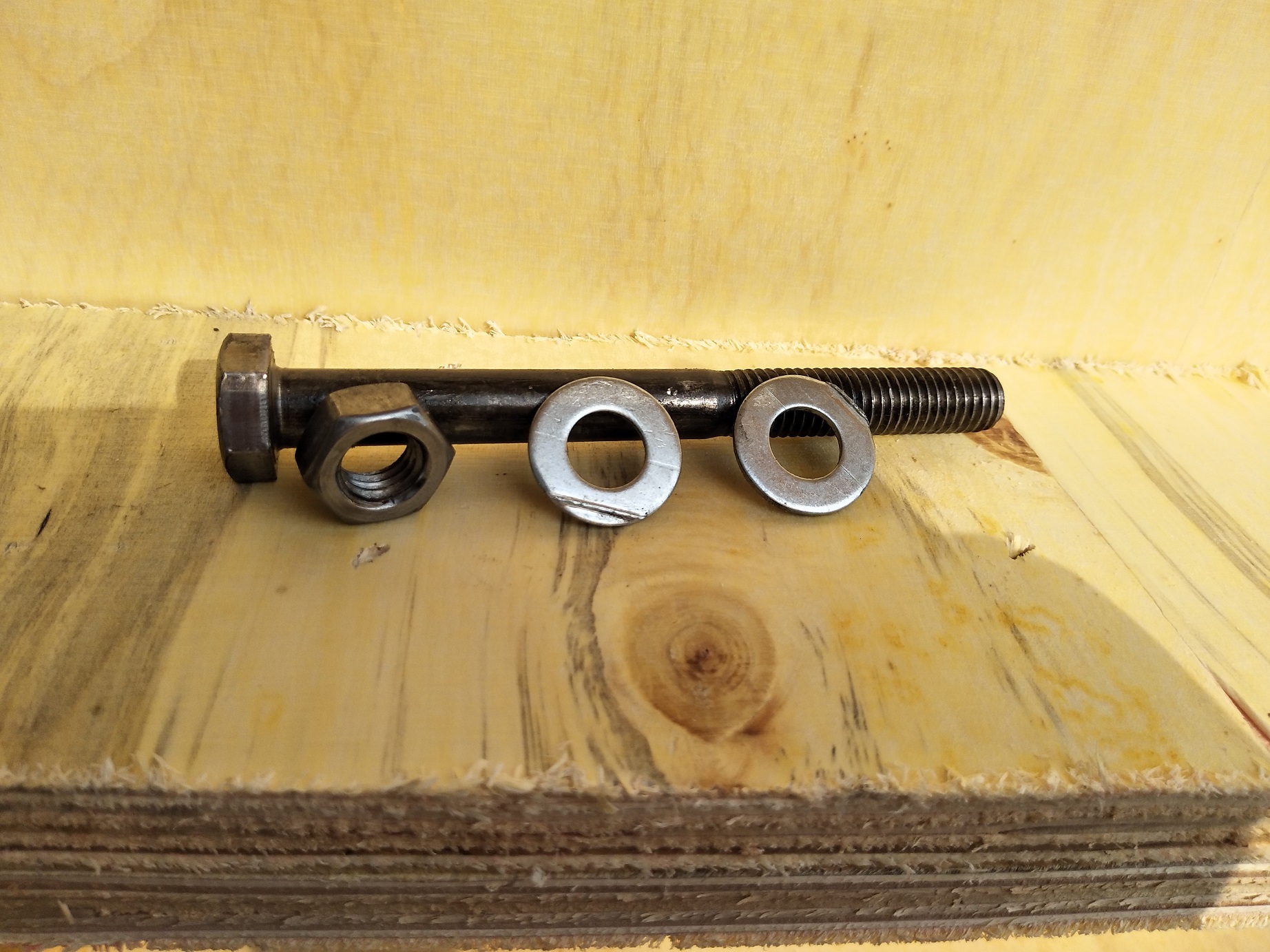

Screws
Size:12x80mm
Diameter: M12
Power level: 8.8 grade
Tensile strength: 400 N/mm2

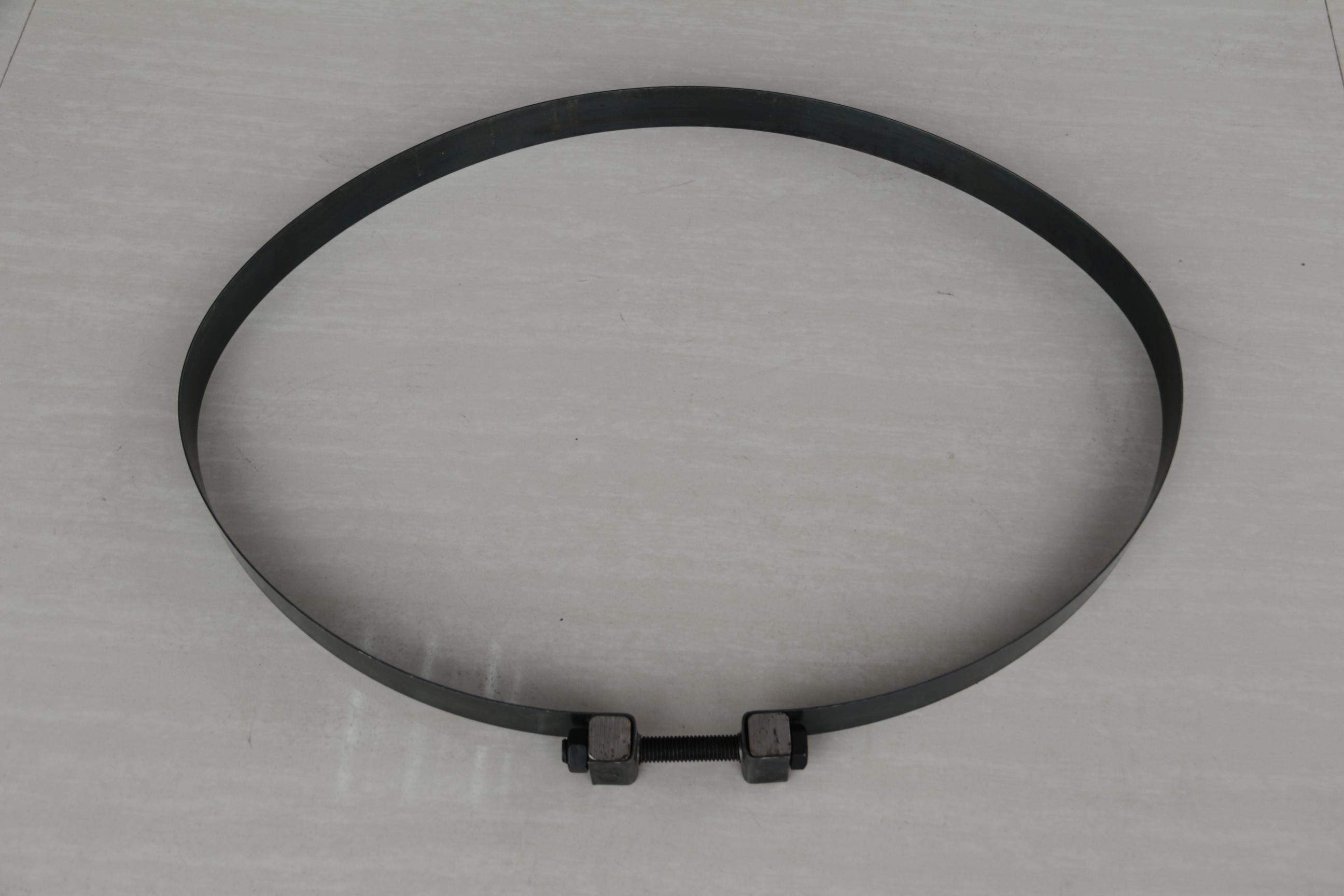

Steel strap
Material: Q235B
Width: 32mm
Thickness: 1.2mm

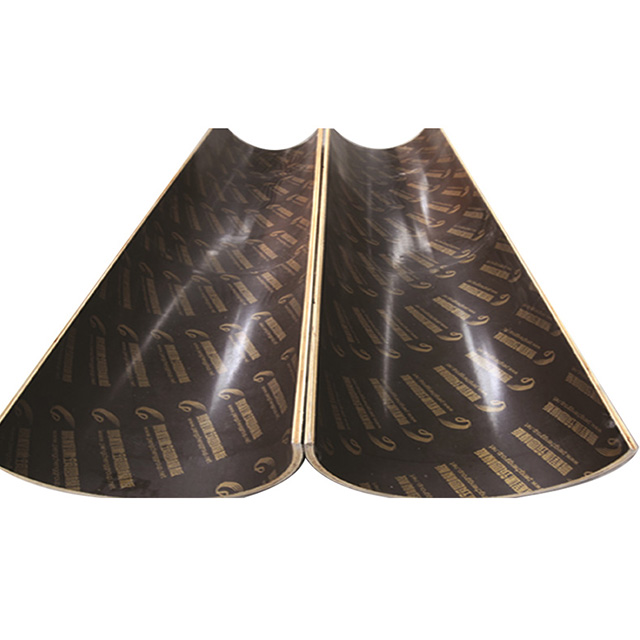

Film face plywood
Core: poplar
Thickness: 18mm/22mm
Flexural strength: 11.5 N/mm2
Elastic Modulus: 4000 N/mm2

◆Specification
Inner Range of diameter
Standard height
Thickness
Parts
250-550mm
3000mm
14.5mm
2
600-1200mm
3000mm
17.5mm
2
1250-1500mm
3000mm
20.5mm
2
1600-4200mm
2440mm
20.5mm
4-10
Note: customized size available
Main Features

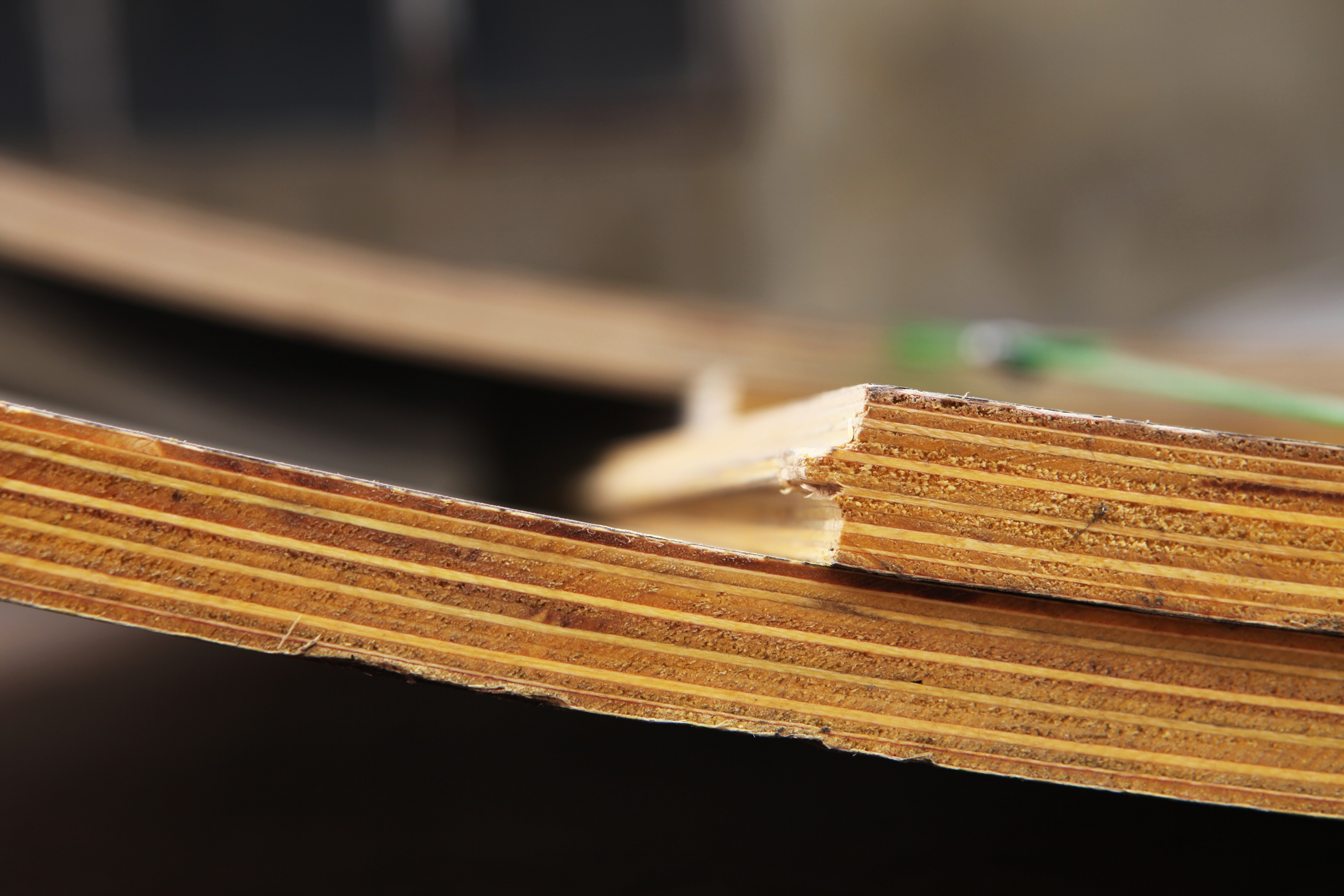

1.Made of plywood, light weight, easy handling, easy cutting.
poplar plywood
easy cutting

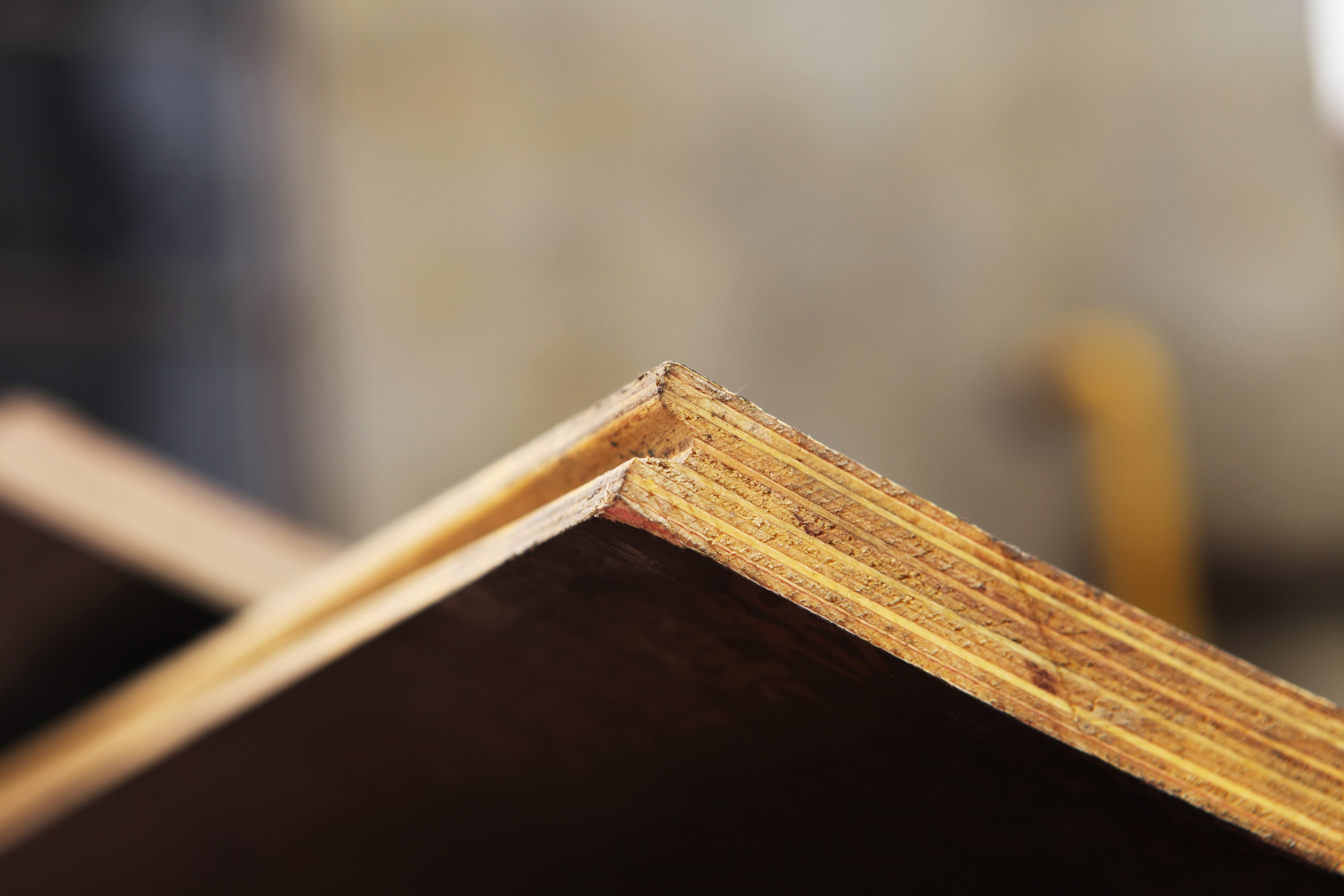

2.Tongue Grooves prevent the leakage of concrete
plywood
wooden panel
3.Efficient installation and dismantling. From feedback on site, only 2 skilled workers can install 15 circular columns in 8 hours.
circular column formwork
column formwork

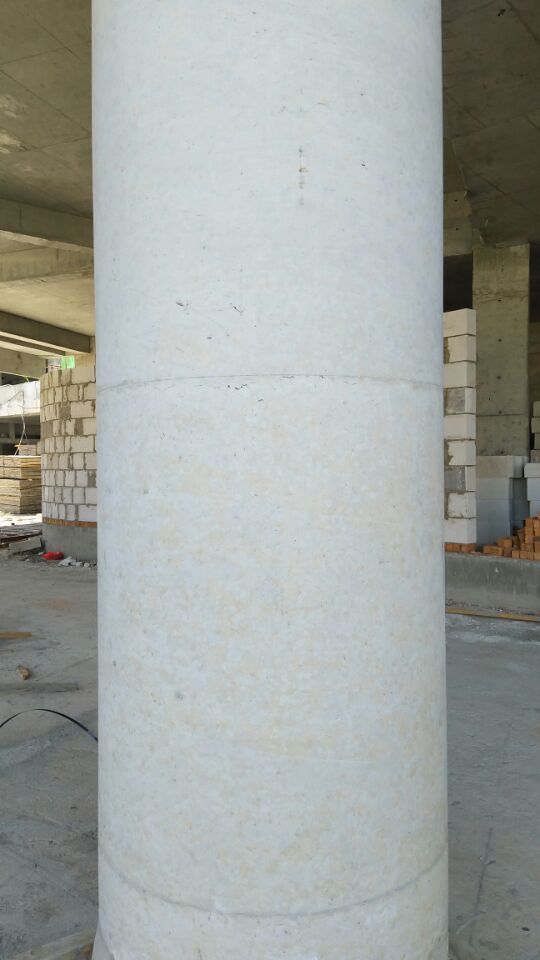

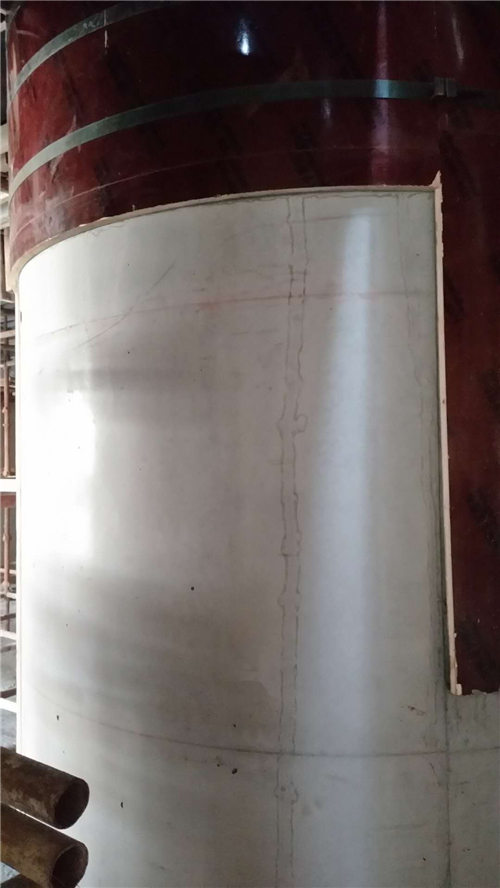

4. Nice concrete finish without re-work
wooden column
fare faced concrete

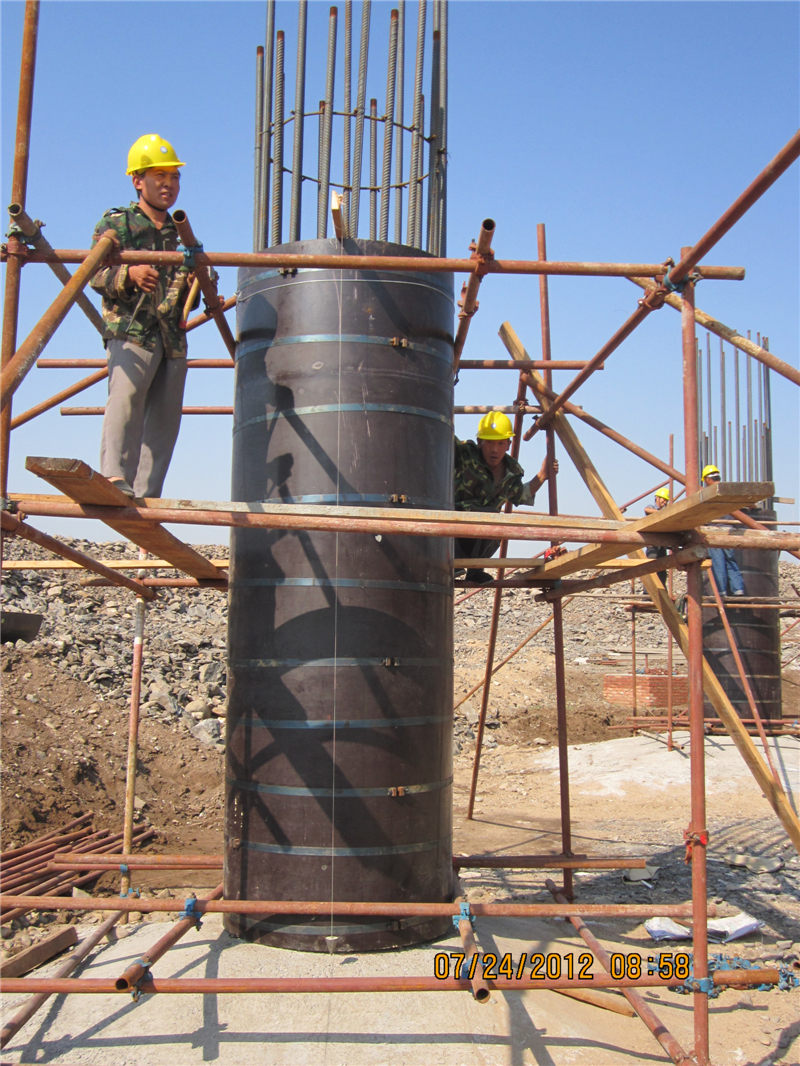

Recommend Installation

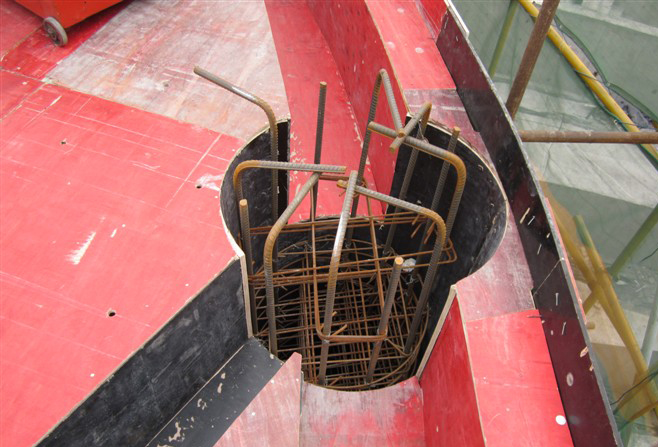

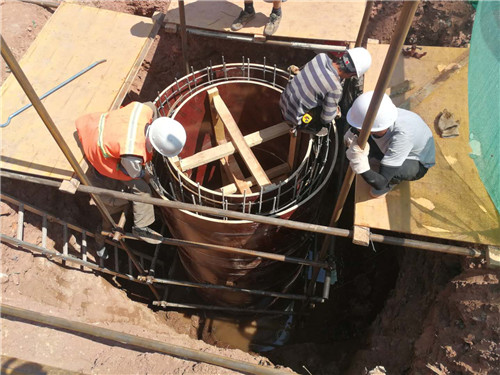

Installation
Treat inner ply film with concrete release agent firstly. Fix the steel belts horizontally according to the lines.

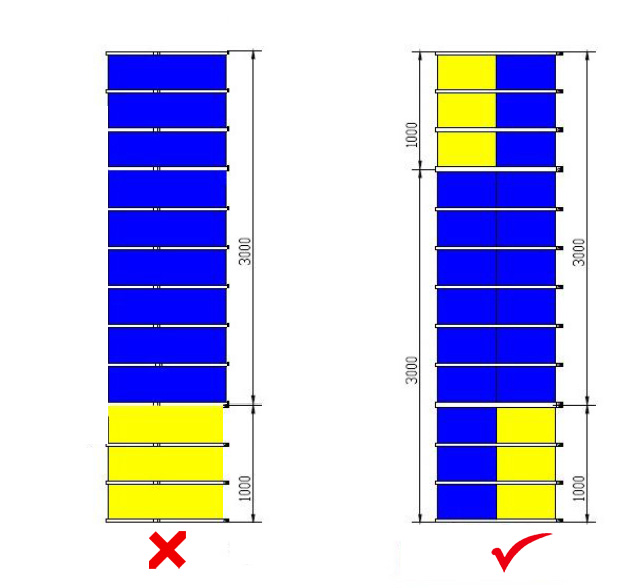

If the height is more than 3000mm , please install it as the indication below.

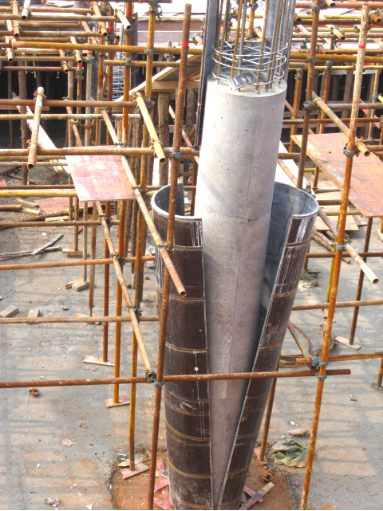

 Dismantling
Simply untie the steel belts and the ply will separate easily
construction
concrete construction
Certifications
Packing & Delivery

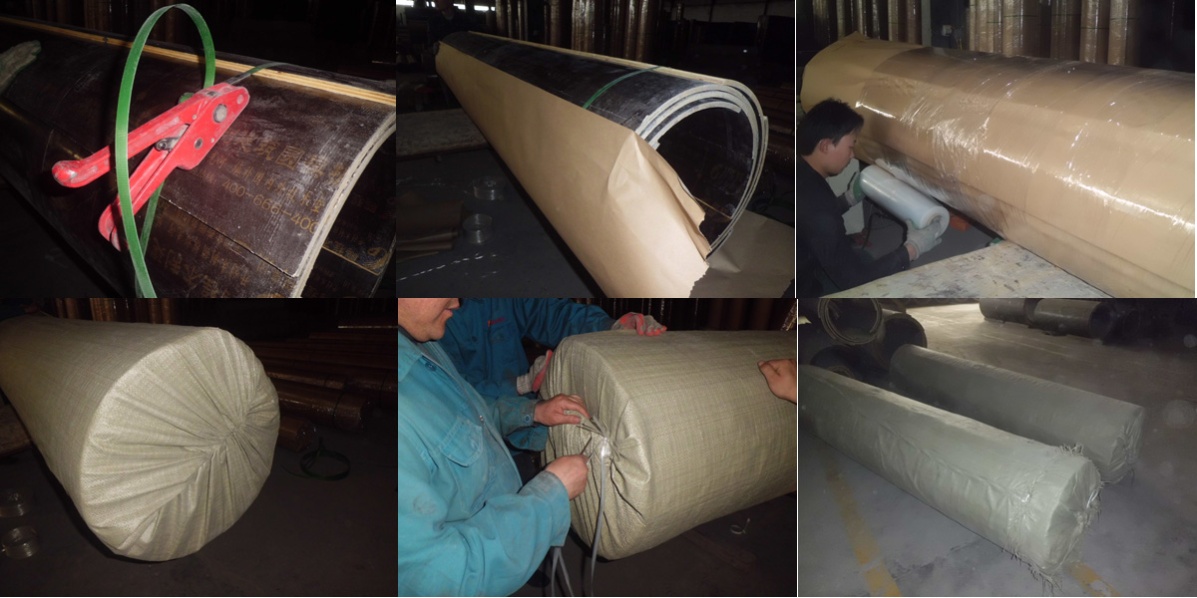

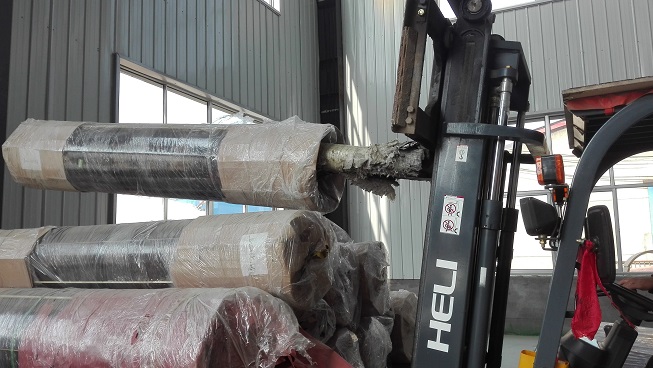

Packing
one bundle by 6-8 pieces, inside craft paper and waterproof shrinking film, outside bag.
packing
cylinder
Case
cylinder

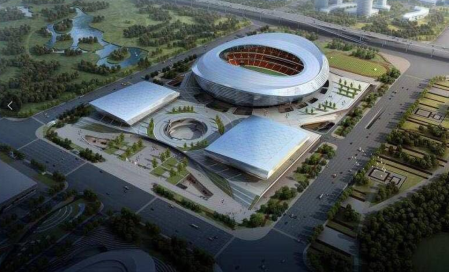

Zhengzhou Olympic Sports Center

cylinder

Shanghai Disneyland

cylinder

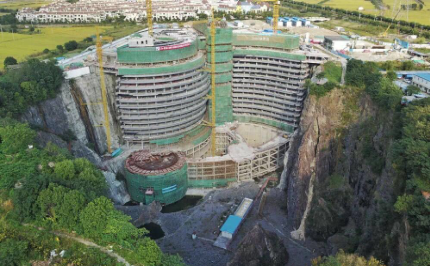

Sheshan Shimao Quarry Hotel

cylinder

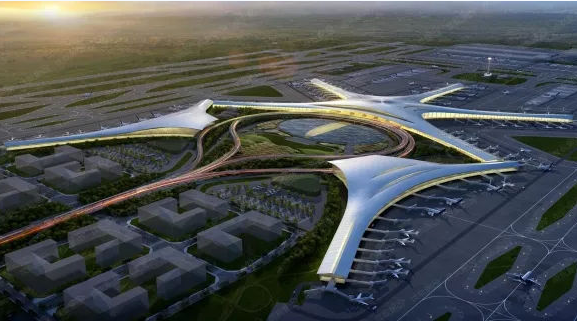

Qingdao Jiaodong New Airport

Company Profile

Shandong Zeemo Construction Technology Co Ltd is a member of Dongstar Group , a multiple industry group in filmface plywood ,construction formwork system , Scaffolding & accessories. President Mr. Wei, is nominted as the president of China Shuttering Board Committee .
Our core is integrating these formwork products to compose an optimium solution.
Our intelligent logistic net can deliver products timely & cost effectively. Service team will follow all the way.
CULTURE: we are one family, members care each other, cooperate intimately, we sharing dream, idea and love in family. We holding same duty-- to serve clients . ENTERRISE
RESPONSIBILITY: we cherish clients' trust , oriented to solve the solution for project. Vision is making the project Zero Emission, Efficient, Money Saving ,Outstanding.
