2.High design values for bending, stiffness and shear strength ;
3.Resists shrinking, warping, splitting and checking ;
4.Ordinary nail assembly - installs as easily as ordinary lumber;
Availability: | |
---|---|
Quantity: | |
ZM-LP10
Zeemo
Introducing Zeemo Building Wood LVL Scaffolding Plywood, a high-quality product designed for construction purposes.

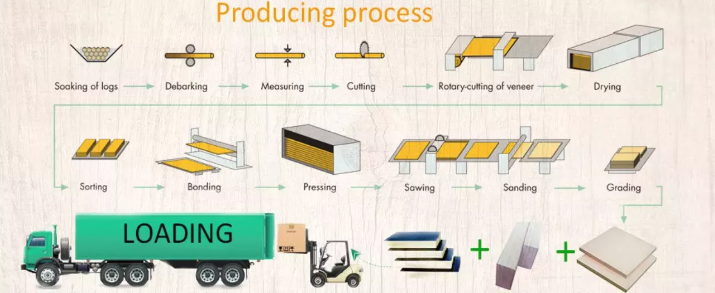

LVL, short for Laminated Veneer Lumber, is a type of plywood made from peeled or sliced veneers. After drying and gluing the veneers together, we arrange them in a horizontal orientation and apply heat and pressure. When all the veneers are placed horizontally, it is referred to as LVL.
Our Zeemo Building Wood LVL Scaffolding Plywood offers exceptional strength and durability, making it an ideal choice for scaffolding applications. The horizontal arrangement of the veneers ensures enhanced load-bearing capacity and structural stability, providing a reliable and safe platform for construction workers.
Crafted with precision, our LVL plywood undergoes rigorous quality control measures to ensure consistent performance and reliability. It is resistant to warping, splitting, and twisting, ensuring longevity and cost-effectiveness.
With its professional-grade construction, Zeemo Building Wood LVL Scaffolding Plywood meets industry standards and regulations, offering peace of mind to contractors and builders. Its versatility allows it to be used in a wide range of construction projects, including residential and commercial buildings.
Invest in Zeemo Building Wood LVL Scaffolding Plywood for your construction needs, and experience the quality and reliability that our product brings to your projects.
Size | Width 225 mm * Length: 500/1000/1500/2000/2500/3000/4000 mm |
Thickness | 38mm |
Tolerance | +/-1mm |
Core | pine,Larch |
Glue emission level | Carb P2(EPA), E0, |
Usage | scaffolding planks |
Moisture Content | 12%~15% |
SPECIMEN SPECIFICATION | 38*225*3048mm ( Thickness * Width * Length ) | ||||
Test Item | Test Method | Test Result | Standard | Conclusion | |
Stiffness Test | AS/NZS 1572013 Appendix A | Load on the edge at the midspan | Defection=16.46 mm | ≦ 18mm | PASS |
The sample did not dislodge from the point of support | Requirement in AS/NZS 1577:2013 | ||||
Load on the center of the midspan | Defection =17.28 | ≦ 18mm | |||
The sample did not dislodge from the point of support | Requirement in AS/NZS 1577:2013 | ||||
Strength Test | AS/NZS 1572013 Appendix B Paragraph B4(a) to (e) | Permanent deformation | 1.75 mm | ≦ 3.6mm | PASS |
Observation | 1. The sample did not dislodge from the point of support 2. Plank does not show any visual signs of distress,bucking,and audible signs of distress | Requirement in AS/NZS 1577:2013 | |||
Load at failure | 8.61 KN | ≧4.84 KN | |||
Mode of failure | The sample failed progressively and did not break into separate parts | Requirement in AS/NZS 1577:2013 |
Our core is integrating these formwork products to compose an optimium solution.Our intelligent logistic net could deliver products timely & cost effectively. Service team will follow all the way.
