Zeemo Foundation Adjustable Concrete Column Wall Forms

  • Standard: EN13377
  • MOQ:1 squre meter
Material:
H20 Timber Beam
Availability:
Quantity:
Inquire Add to Basket

  • ZM-SCFF

  • ZEEMO

Zeemo Customized Timber Beam Concrete Column Formwork for Wall

Timber Beam Column Formwork is used for the concrete pouring of column. The application of column box formwork has greatly increased  the construction efficiency and reduced the labor cost, the system is convenient for construction and it is easy to control the quality.


IMG_1396(1)
The system has four parts: film faced plywood, H20 timber beam, double channel waler/waling, and pull-push props
Pull-push props can be designed according to the project or simply select the scaffold.
Tie yoke and tie rod are used to reinforce the corner.

Ajustable Column Formwork

The adjustment of adjustable column formwork is realized by changing the steel waling relative position.

The steel waling of standard adjustable column formwork has three specifications, this can satisfy the need of concreting of column with side length from 200mm to 1200mm.
The length of steel waling(mm)
The size of column(mm)
1500-1800
800-1200
1200-1500
400-800
900-1200
200-400

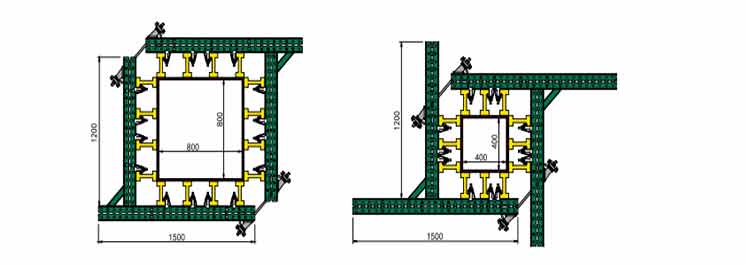

When the steel waling are 1200-1500 mm long, we can adjust the section dimension from 800*800 mm to 400*400 mm or any size column with side length from 400mm-800mm, squre or rectangle.

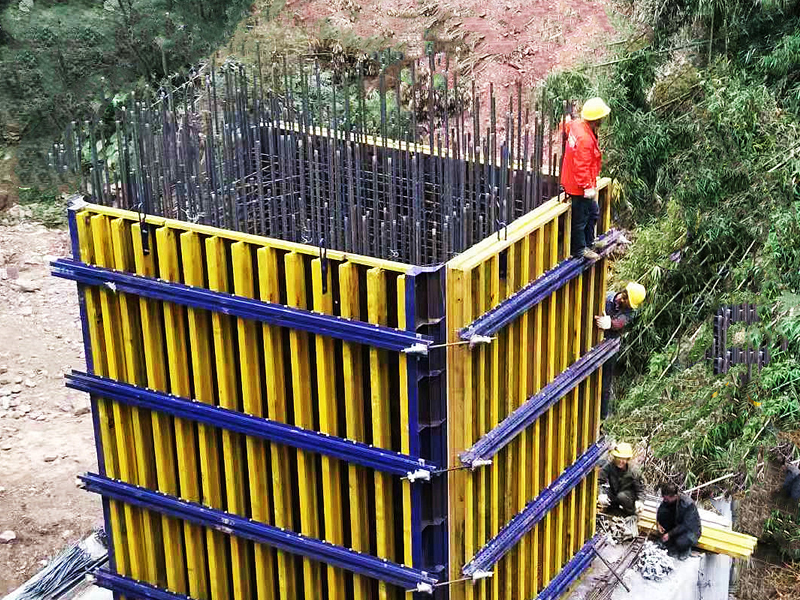

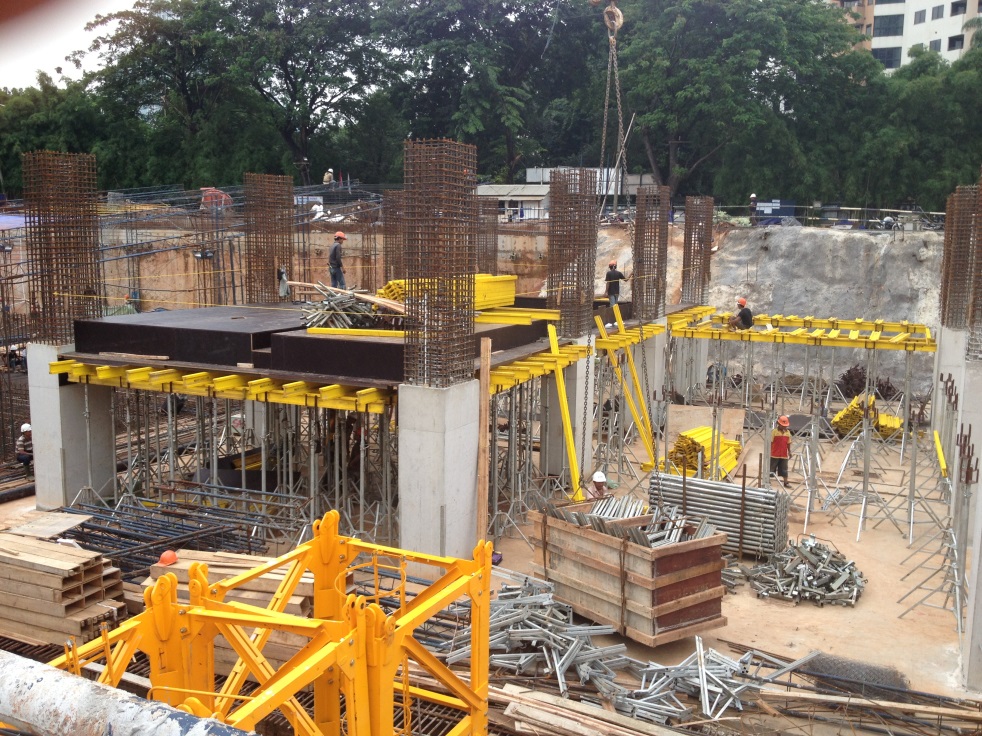

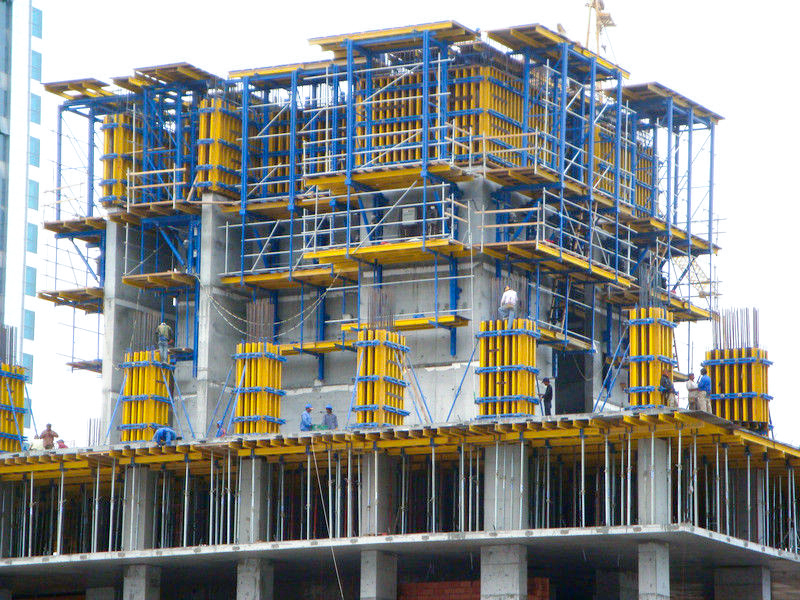

Customer Photos
IMG_1396(1)
