ZM-HF24
Zeemo

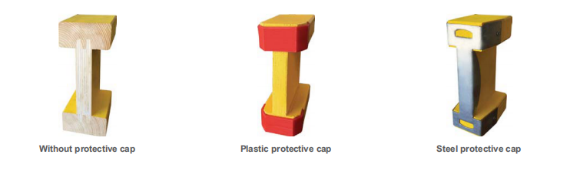

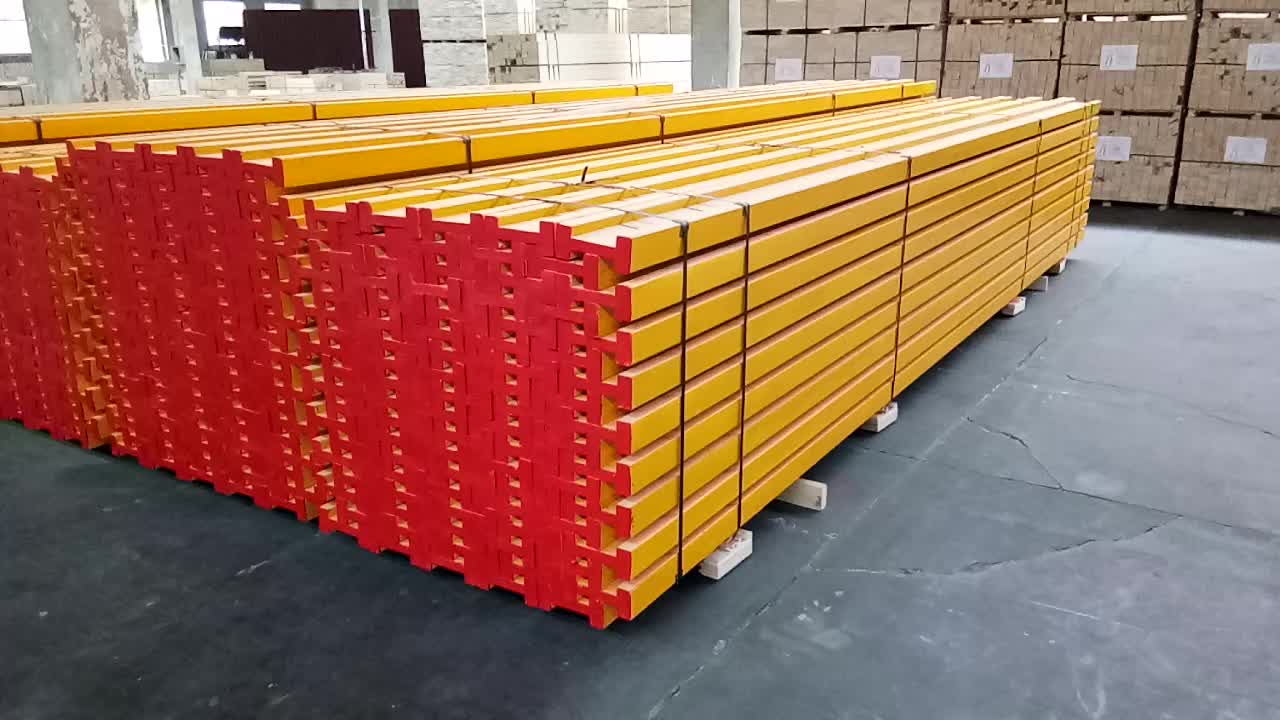

Formwork LVL timber beams with plastic cap H20 beam

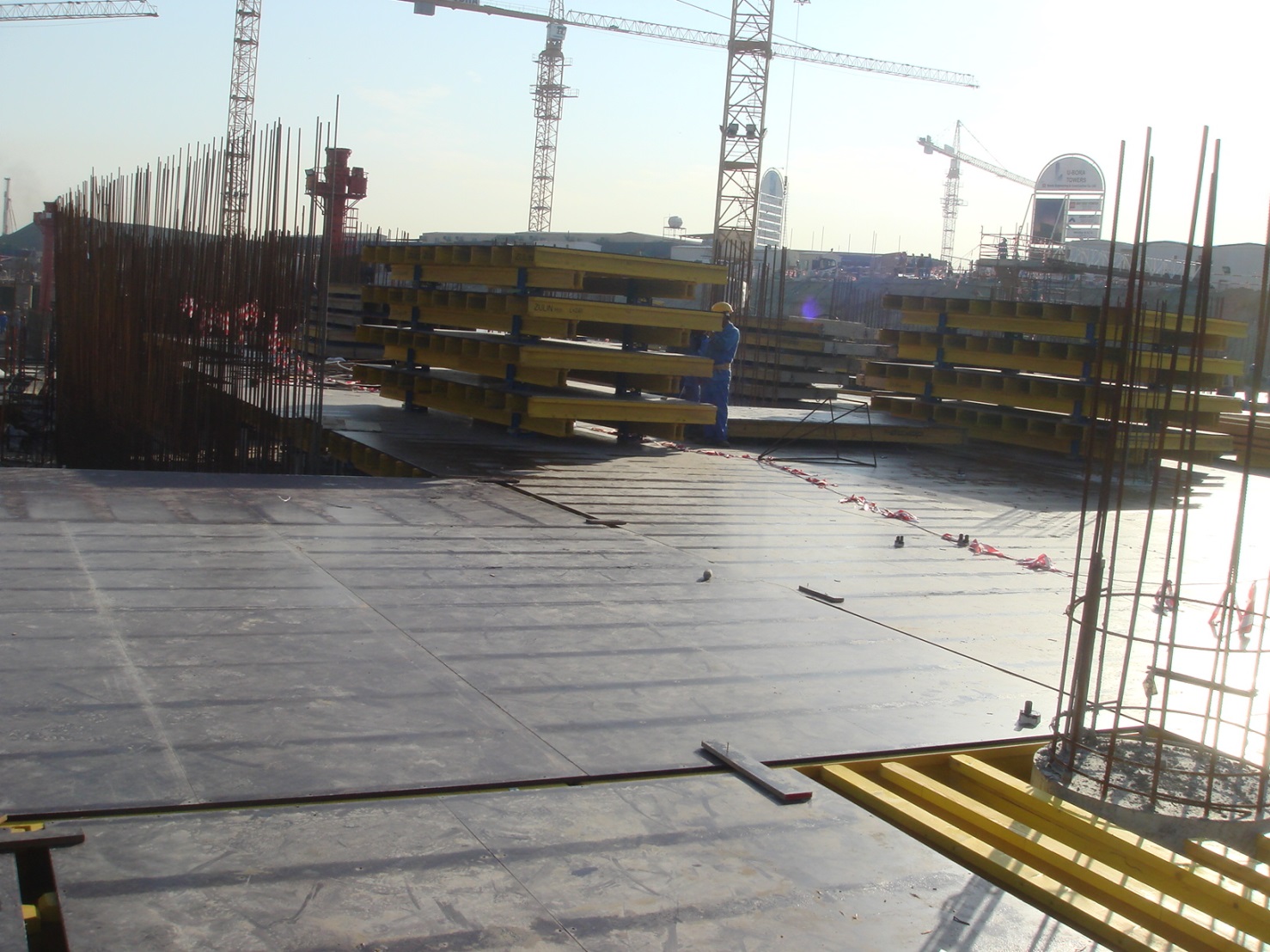

Introducing our premium product, the Wood Beam. As an integral component of the formwork system, the Wood Beam has gained widespread recognition in the construction industry. Its versatile application extends beyond high-rise commercial projects, as it is also suitable for public infrastructure such as bridges, tunnels, airports, power plants, and water treatment facilities.

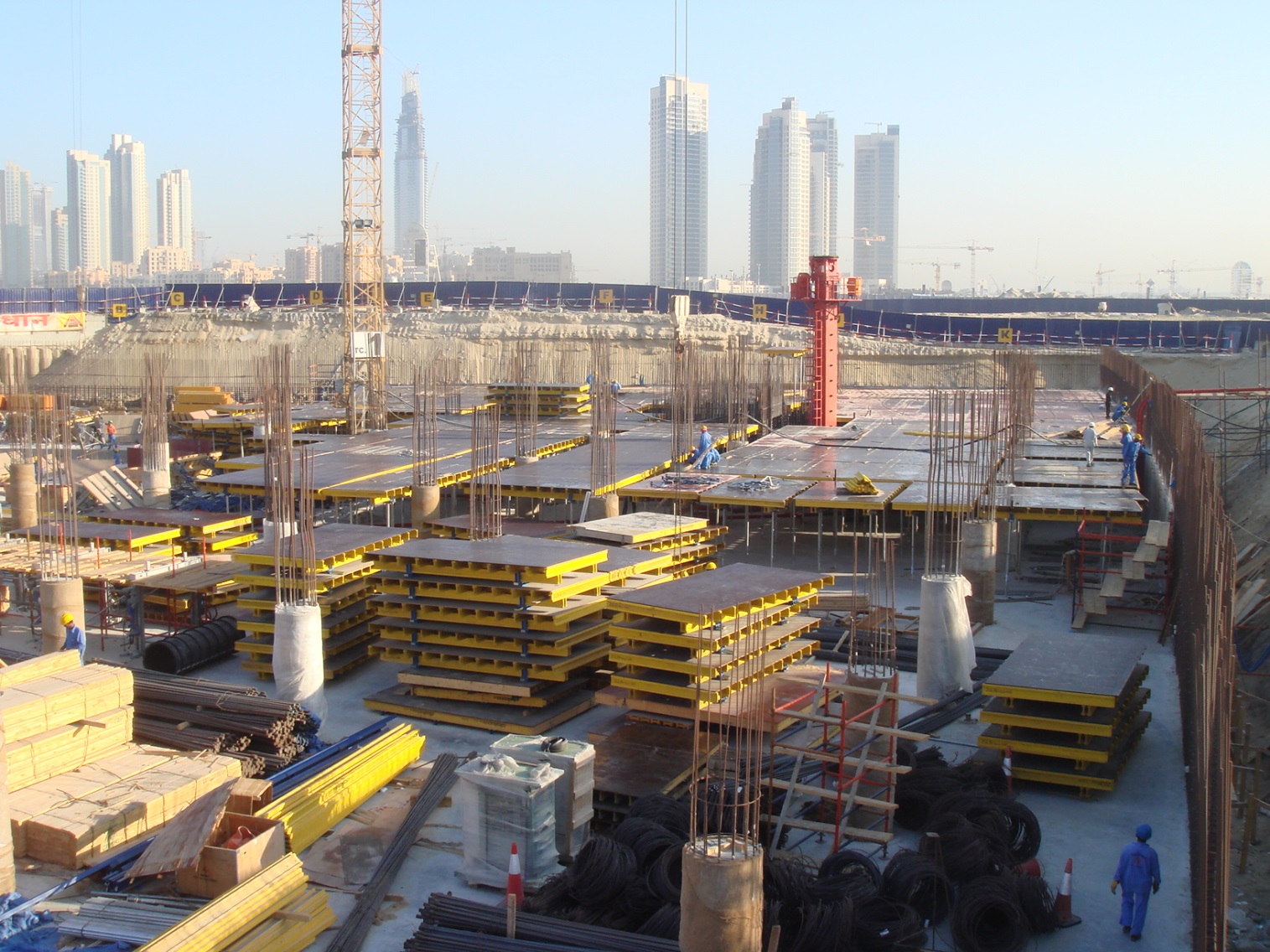

Crafted with utmost precision and expertise, our Wood Beams are specifically designed to meet the demanding requirements of wall, column, slab, and core wall formwork in high-rise commercial developments. Its robust construction ensures exceptional strength and durability, making it a reliable choice for even the most challenging construction projects.
Not only does our Wood Beam excel in commercial applications, but it also proves to be a valuable asset in various public infrastructure projects. From the construction of bridges and tunnels to the development of airports, power plants, and water treatment facilities, our Wood Beam offers unmatched performance and reliability.
Choose our Wood Beam for its exceptional quality, reliability, and versatility. Experience the difference it brings to your construction projects, ensuring seamless formwork execution and superior structural integrity. Trust in our Wood Beam to elevate your construction endeavors to new heights.

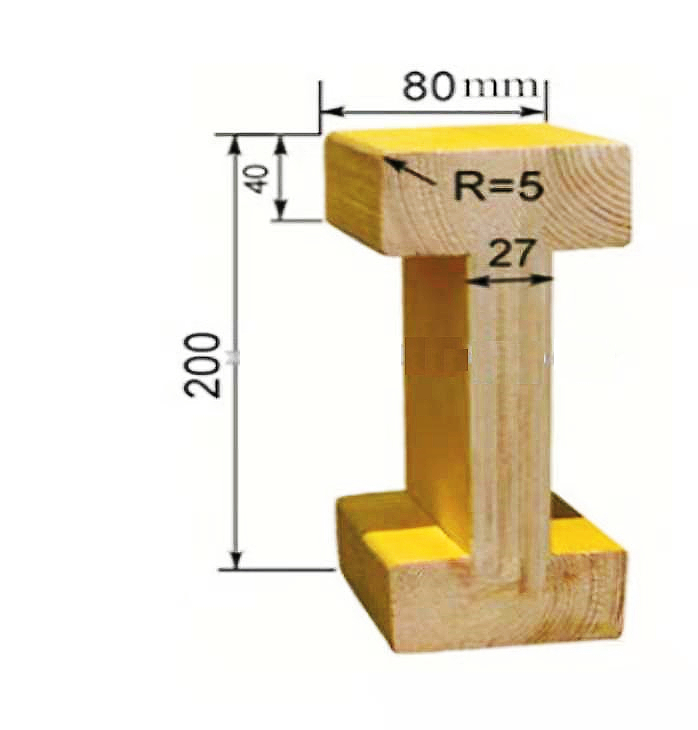

H20 Size | Height 200mm , width 80mm |
Available length (M) | 1.5 1.9 2.45 2.75 2.9 3.0 3.3 3.6 3.9 4.5 4.9 5.9 ect. |
Flange | North Europe solid wood spruce ,width 80mm thickness 40mm |
Web | Plywood 27mm * 150mm |
Glue | WBP glue |
Weight | 4.5 kg/m |
Moisture Content | 12% ex workshop |
Test Items | European Standard | Test Data | ||
Allowable Values DIN 1052-1:1988-04 | Limits of load-bearing Capacity DIN 1052:2008-12/Eurocode 5 | H20 Beam | H20 Beam ECO | |
Shearing Resistance (KN) | 11 | 23.9 | 29.13 | 37.22 |
Bending Resistance( KN ) | 5 | 10.9 | 15.74 | 19.77 |
Bearing Resistance (KN) | 22 | 47.8 | 50.20 | 63.30 |
Formwork LVL timber beams with plastic cap H20 beam
Introducing our premium product, the Wood Beam. As an integral component of the formwork system, the Wood Beam has gained widespread recognition in the construction industry. Its versatile application extends beyond high-rise commercial projects, as it is also suitable for public infrastructure such as bridges, tunnels, airports, power plants, and water treatment facilities.
Crafted with utmost precision and expertise, our Wood Beams are specifically designed to meet the demanding requirements of wall, column, slab, and core wall formwork in high-rise commercial developments. Its robust construction ensures exceptional strength and durability, making it a reliable choice for even the most challenging construction projects.
Not only does our Wood Beam excel in commercial applications, but it also proves to be a valuable asset in various public infrastructure projects. From the construction of bridges and tunnels to the development of airports, power plants, and water treatment facilities, our Wood Beam offers unmatched performance and reliability.
Choose our Wood Beam for its exceptional quality, reliability, and versatility. Experience the difference it brings to your construction projects, ensuring seamless formwork execution and superior structural integrity. Trust in our Wood Beam to elevate your construction endeavors to new heights.
H20 Size | Height 200mm , width 80mm |
Available length (M) | 1.5 1.9 2.45 2.75 2.9 3.0 3.3 3.6 3.9 4.5 4.9 5.9 ect. |
Flange | North Europe solid wood spruce ,width 80mm thickness 40mm |
Web | Plywood 27mm * 150mm |
Glue | WBP glue |
Weight | 4.5 kg/m |
Moisture Content | 12% ex workshop |
Test Items | European Standard | Test Data | ||
Allowable Values DIN 1052-1:1988-04 | Limits of load-bearing Capacity DIN 1052:2008-12/Eurocode 5 | H20 Beam | H20 Beam ECO | |
Shearing Resistance (KN) | 11 | 23.9 | 29.13 | 37.22 |
Bending Resistance( KN ) | 5 | 10.9 | 15.74 | 19.77 |
Bearing Resistance (KN) | 22 | 47.8 | 50.20 | 63.30 |
