Zeemo column formwork circular circle concrete column formwork
For concrete forming of round or circular columns.

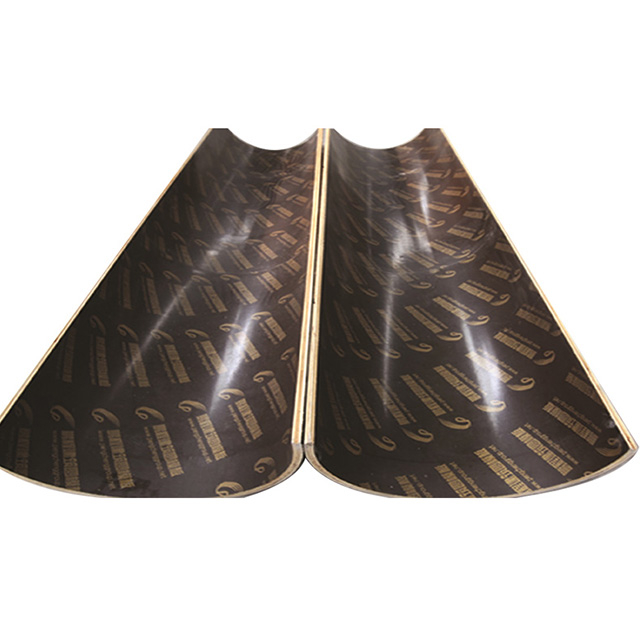

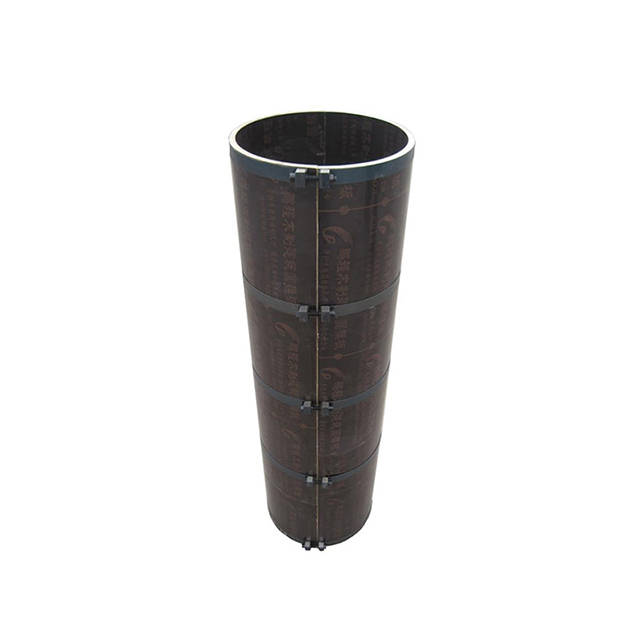

1. Made of two semi-circle film faced plywood. 2. Plywood edges have slots to make sure that two half-circle plywood can join seamlessly. 3. Fixing: one piece of steel belt with screw every 300mm.
◆Accessories
Screws
Size:12x80mm
Diameter: M12
Power level: 8.8 grade
Tensile strength: 400 N/mm2
Steel strap
Material: Q235B
Width: 32mm
Thickness: 1.2mm
Film face plywood
Core: poplar
Thickness: 18mm/22mm
Flexural strength: 11.5 N/mm2
Elastic Modulus: 4000 N/mm2
◆Main Features
1. Light weight-- around 50kg per piece, only need 2-3 people for operation. 2. Installation and removal is easier, no need of crane. 3. Can be cut easily to meet exact needs. 4. Can be repeated for times. 5. Smooth surface finishing. 6. Lower cost.
◆Installation
Treat inner ply film with concrete release agent firstly. Fix the steel belts horizontally according to the lines. If the height is more than 3000mm , please install it as the indication below.
◆ Dismantling
Simply untie the steel belts and the ply will separate easily
Contact Us
Product Description
◆Specification
Inner Range of diameter
Standard height
Thickness
Parts
250-550mm
3000mm
14.5mm
2
600-1200mm
3000mm
17.5mm
2
1250-1500mm
3000mm
20.5mm
2
1600-4200mm
2440mm
20.5mm
4-10
Note: customized size available
