ZEEMO h20 timber beams column box concrete formwork

Timber beam column formwork is used for the concrete pouring of Column. The application of column box formwork has greatly increased the construction efficiency and reduced the labor cost. The system is convenient for construction and it is easy to control the quality.
Availability:
Quantity:
Inquire Add to Basket

  • ZM-CFS22

  • Zeemo

Specification
Square Column H20 Beam Plywood Formwork

     The steel waling of standard adjustable column formwork has 3 specifications. This can satisfy the need of concreting of column with side length from 200mm to 1200mm.
The length of steel waling(mm)
The size of column(mm)
1500~1800
800~1200
1200~1500
400~800
900~1200
200~400

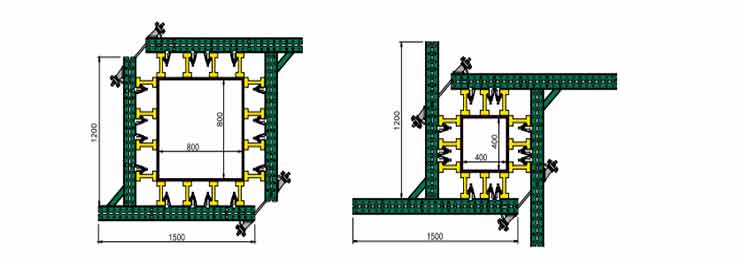

When the steel waling are 1200~1500 mm long, we can adjust the section dimension from 800x800mm to 400x400mm or any size column with side length from 400mm to 800mm, square or rectangle.

Product Description
     Timber beam column formwork is used for the concrete pouring of Column. The application of column box formwork has greatly increased the construction efficiency and reduced the labor cost. The system is convenient for construction and it is easy to control the quality.


The system has four parts:
plywood, timber beam, steel waling and Pull-push props. Pull-push props can be designed according to the project or simply select the scaffold. Tie-yoke and tie-rod are used to reinforce the corner.

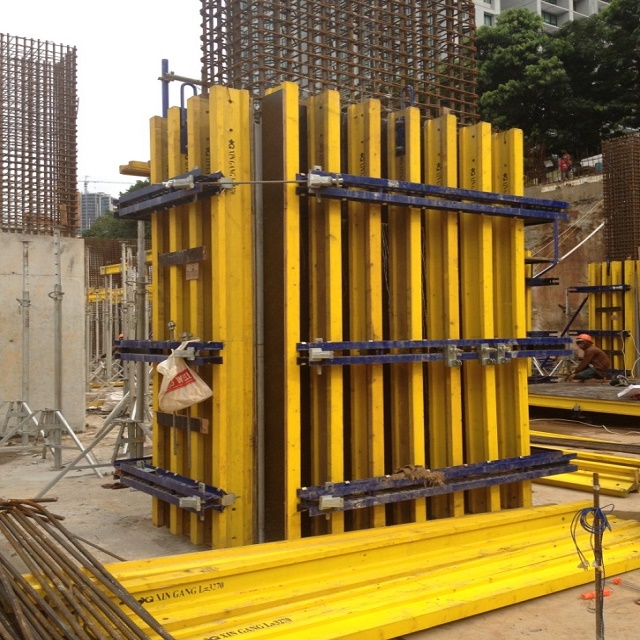

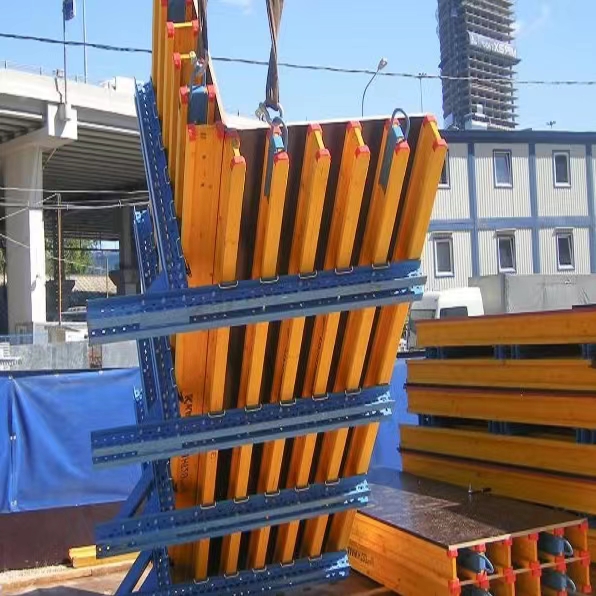

Timber Beam Column Formwork:
Timber Beam Column Formwork is used for the concrete pouring of square or rectangle column.

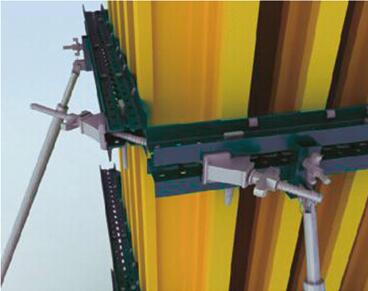

Adjustable column formwork:
The adjustment of adjustable column formwork is realized by changing the steel waling relative position.

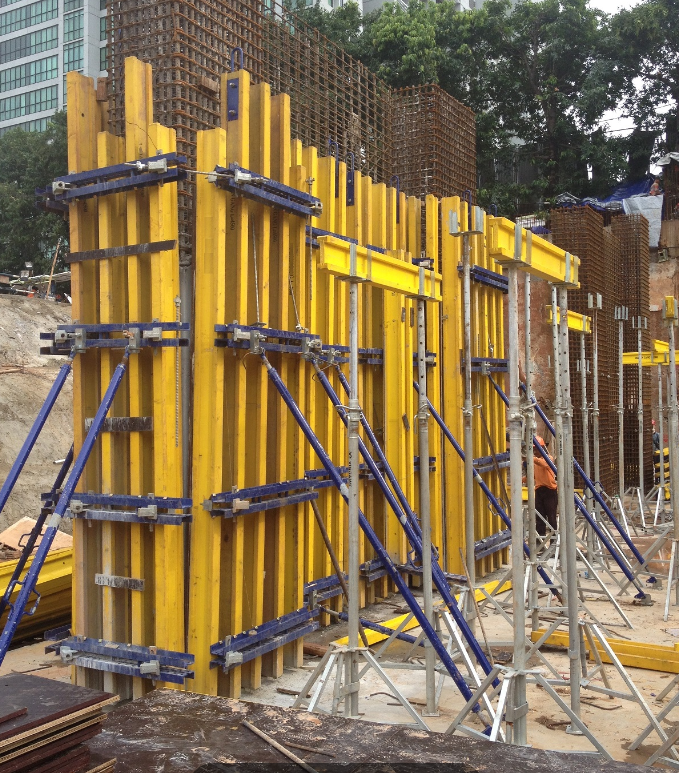

Completed Projects- Indonesia

Certifications

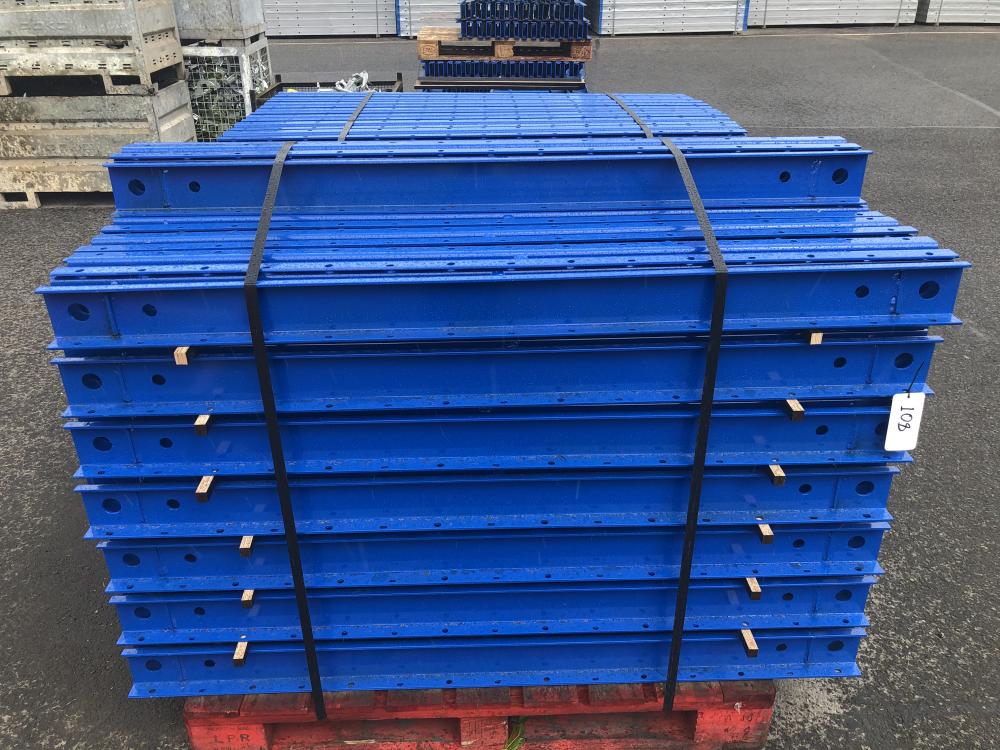

Packing & Delivery

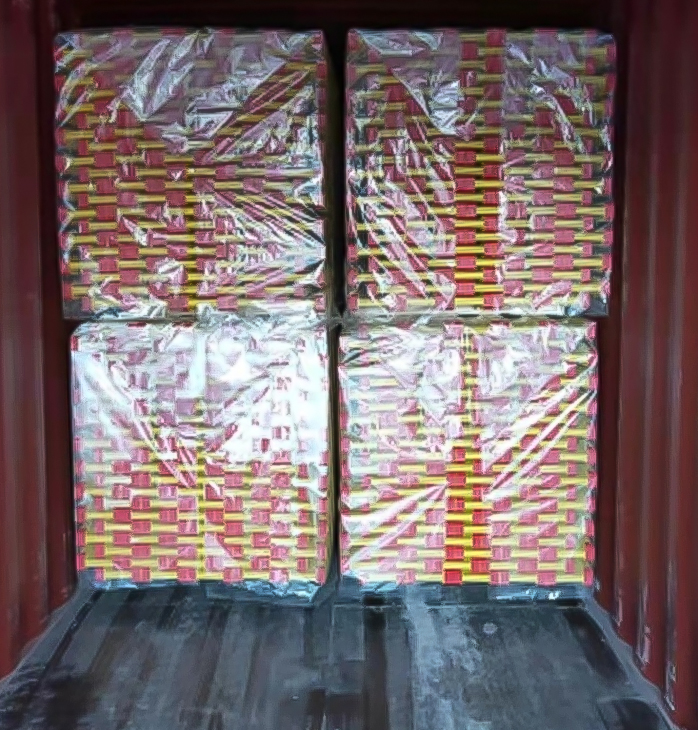

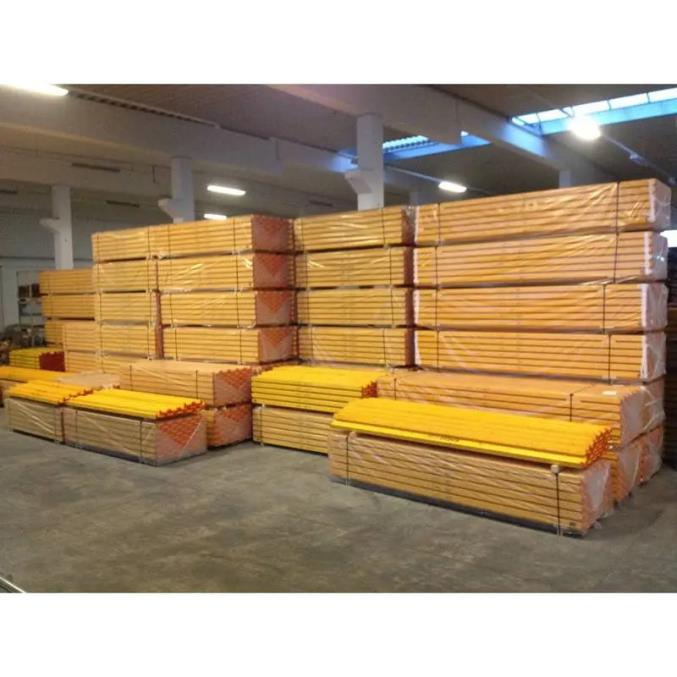

Packaging Details: By steel pallet or by strap in bundle, or according to client's request.
Port: qingdao, lianyungang.
Company Profile
Shandong Zeemo Construction Technology Co Ltd is a member of Dongstar Group , a multiple industry group in filmface plywood,construction formwork system , Scaffolding & accessories. President Mr. Wei, is nominted as the president of China ShutteringBoard Committee .
Our core is integrating these formwork products to compose an optimium solution.
Our intelligent logistic net could deliver products timely & cost effectively.
Service team will follow all the way.
CULTURE
we are one family, members care each other, cooperate intimately, we sharing dream, idea and love in family. We holding same duty-- to serve clients .

ENTERRISE RESPONSIBILITY
we cherish clients’ trust , oriented to solve the solution for project.
Our vision is making the project Zero Emission, Efficient, Money-saving ,Outstanding.
FAQ
Q1. What do you do?
A: We manufacture and integrating existing formwork and scaffolding products to compose a optimium solution for pouring concrete structure in the field of housing, multi-story structure, high rise buildings, towers, sports stadiums, bridges, hydropower stations, industrial structures etc.

Q2. How many construction projects have you accomplished?
A: 400 both in China and abroad.

Q3. Have you accomplished any landmark?
A: Yes, we have. For example, PAFC (660 meters tall), The 21 Century Building, 2008 Beijing Olympic Main Stadium, CCTV New Site, Colombo Lotus Tower(Sri Lanka), Hong Kong-Zhuhai-Macau Bridge, Gezhouba Pubugou Hydropower Station etc.

Q4. What can you do for us?
A.We offer our suggestions, drawings of formwork layout, and quotations to the owners, design institutes, or contractors of the construction projects.
B.We sell our products to the contractors, building companies, or trading companies
C.We support our worldwide peer companies with our outstanding formwork or scaffolding products.
D.We provide remote or on-site instruction to the builders.

Q5. What do you need in order to make a brief design and quotation when we have a construction project to be built?
A: Structural drawing and section drawing.
