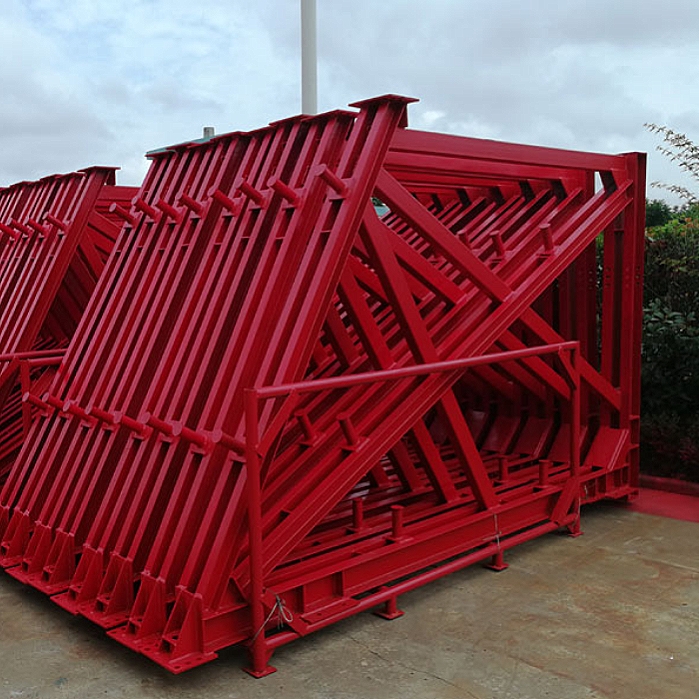

Retaining wall dam walls single side steel formwork

It is a system used in Metro station, retaining wall, curtains, Dam , Pier ,guy anchor ,tunnel, underground car park/workshop and rebuilt areas,with single sided mold space problem
Availability:
Quantity:
Inquire Add to Basket

  • ZM-SS11

  • Zeemo

Specification

Retaining wall dam walls single side steel formwork


It is a system used in Metro station, retaining wall, curtains, Dam , Pier ,guy anchor ,tunnel, underground car park/workshop and rebuilt areas,with single sided mold space problem
Single maximum pouring height
2.7m
Concrete lateral pressure
≤40Mpa
Frame spacing
≤0.8m
Ancher spacing
≤0.8m
Product Description
SYSTEM FEATURES:

Concrete pressure is met by the struts, horizontal belts and permanent anchors. Thus, tie- rod and opposite wall panel is not required.
As the single-sided formwork elements are connected to each other, they can be transported by means of a crane.
Wall formwork is climbed unilaterally with climbing consoles.
The production is carried out in the welding robots of EN ISO 3834-3 quality standards.

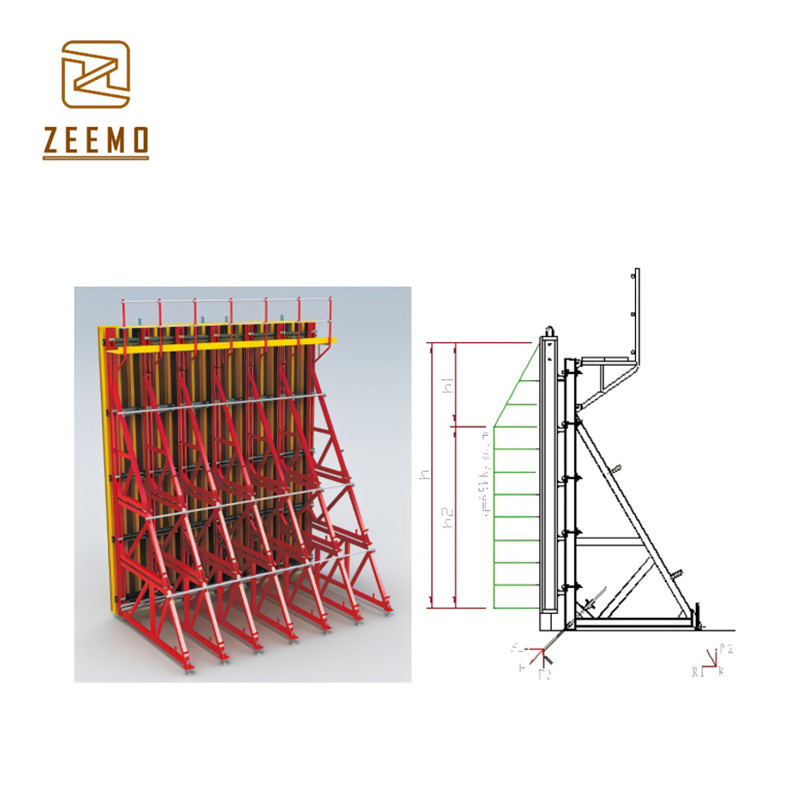

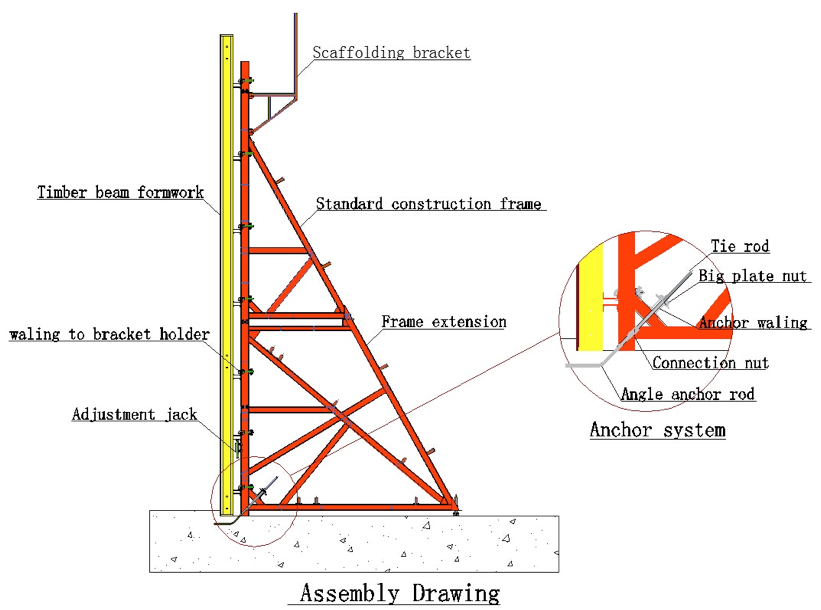

COMPOSITION:

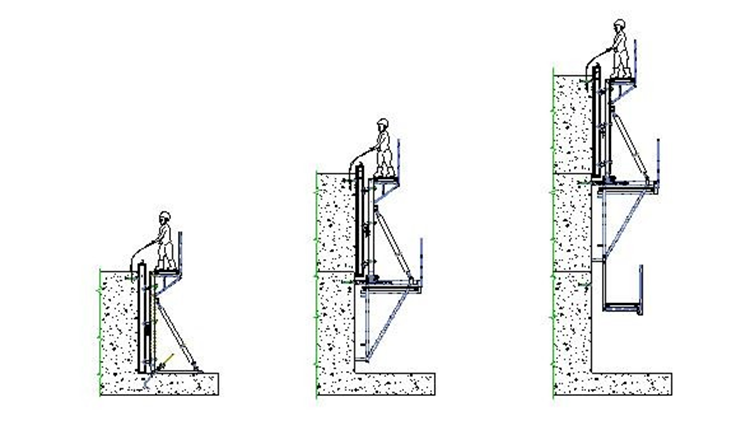

KNOW-HOW OF SINGLE SIDE WALL:
1. The first pouring
The lateral pressure is supported by bottom beam anchor system during the first concrete pouring.Embed wall anchor system which will be the most important supporting parts during the next pouring.
2. The second pouring (the first lift)
The climbing brackets are used in the second pouring, which are fixed on the anchor system in the finished wall.
3. The third pouring (the second lift)
Fix the suspend platform under the whole system, the workers can remove the tensile bolt and V- climbing cone on the platform and then fill the holes left by the V-climbing cone. The later lifts are standard same as the second lift until the concreting is finished.
ENGINEERING ANALYSIS:
1. The lateral pressure of the concrete is entirely supported by struts, horizontal belts and permanent anchors, thus wall-through tie-rods are not needed.
2. The formwork can move backward entirety, which will be convenient for dismantle
3. Coupling is used for connecting the neighbouring forms to make sure the forms standing in a beeline.
4. The connecting components have a high standardization and versatility.
5. The formwork can prop to the finished concrete tightly to avoid offset or leakage.
6. The formwork can be adjusted horizontally or vertically as request.
7. ZS-180 system can be adjusted forward and backward. The Max. angle is 30°.

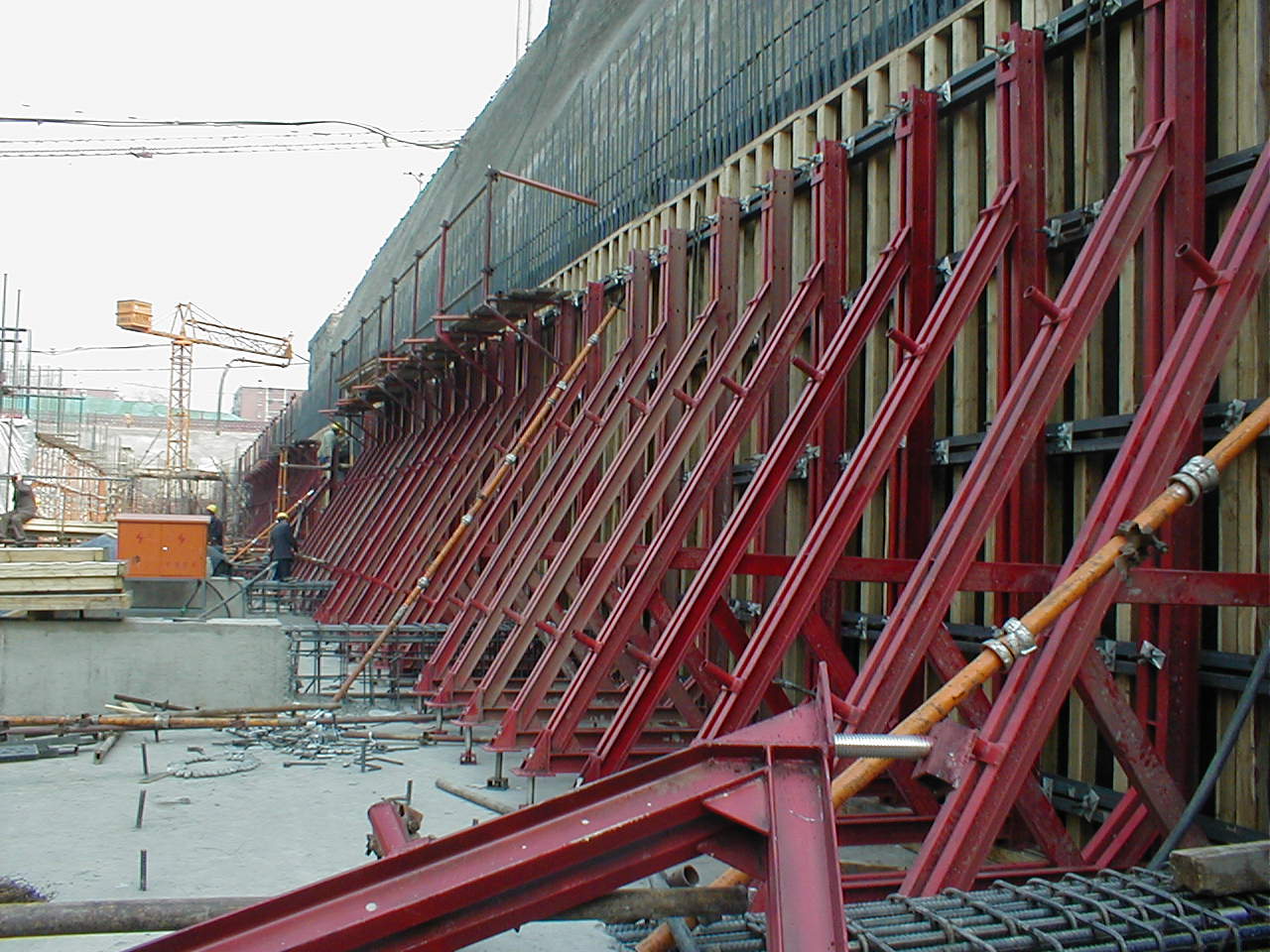

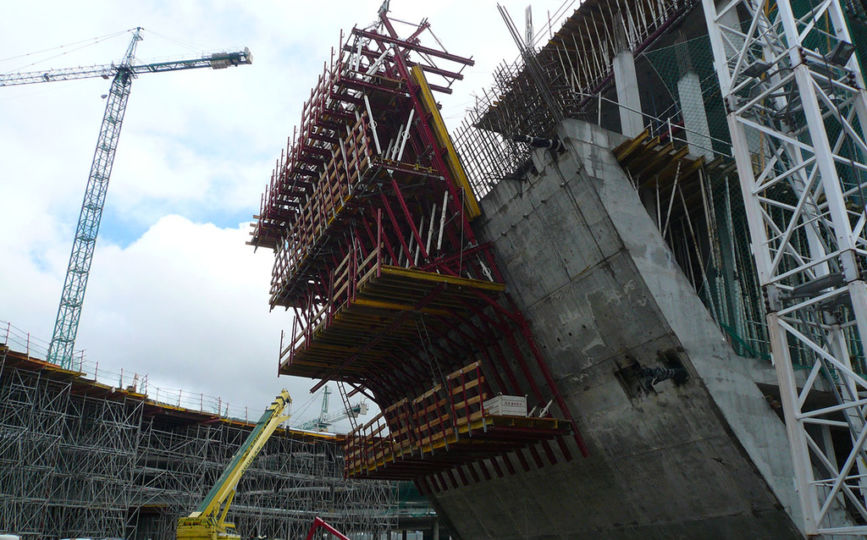

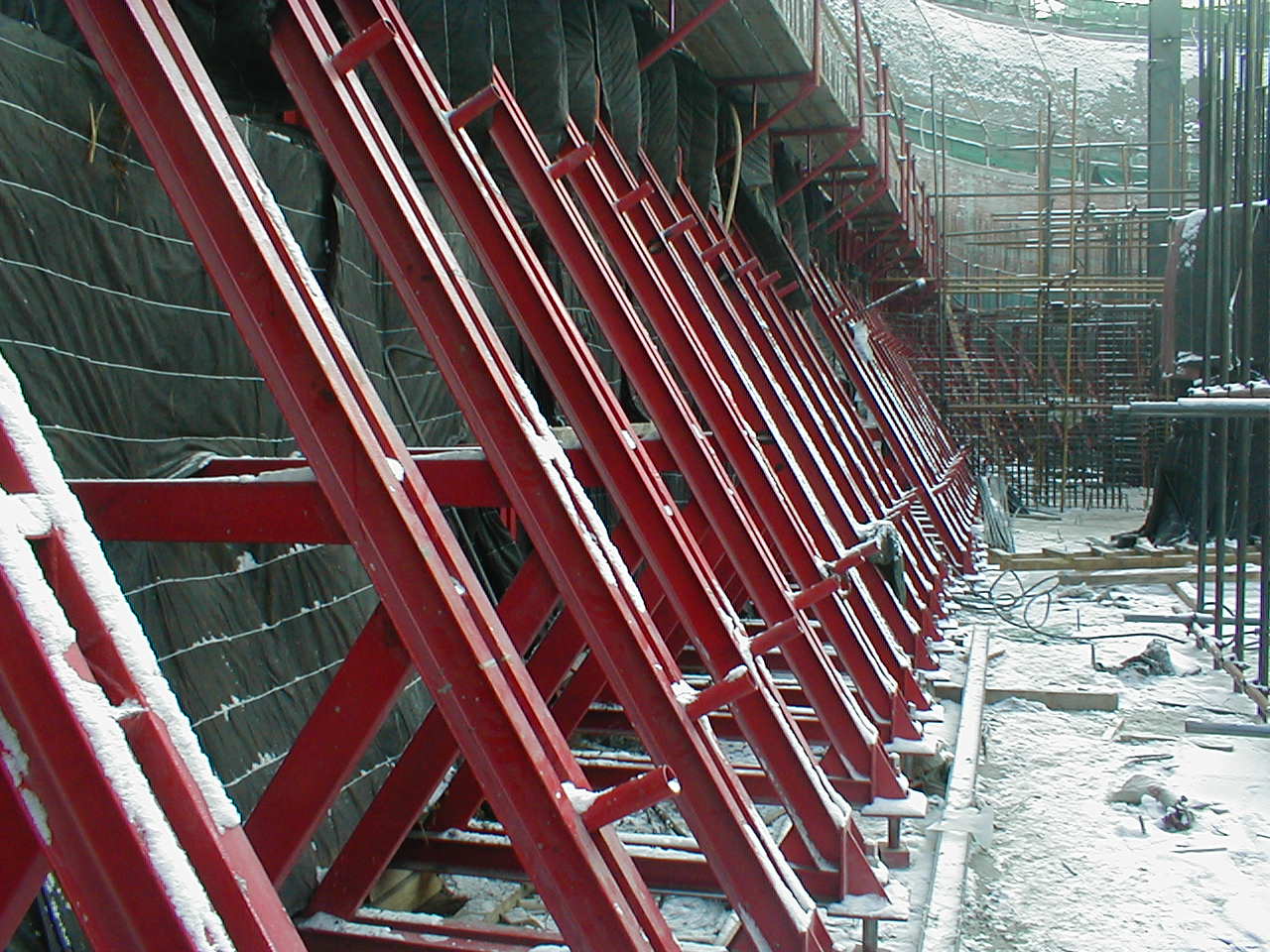

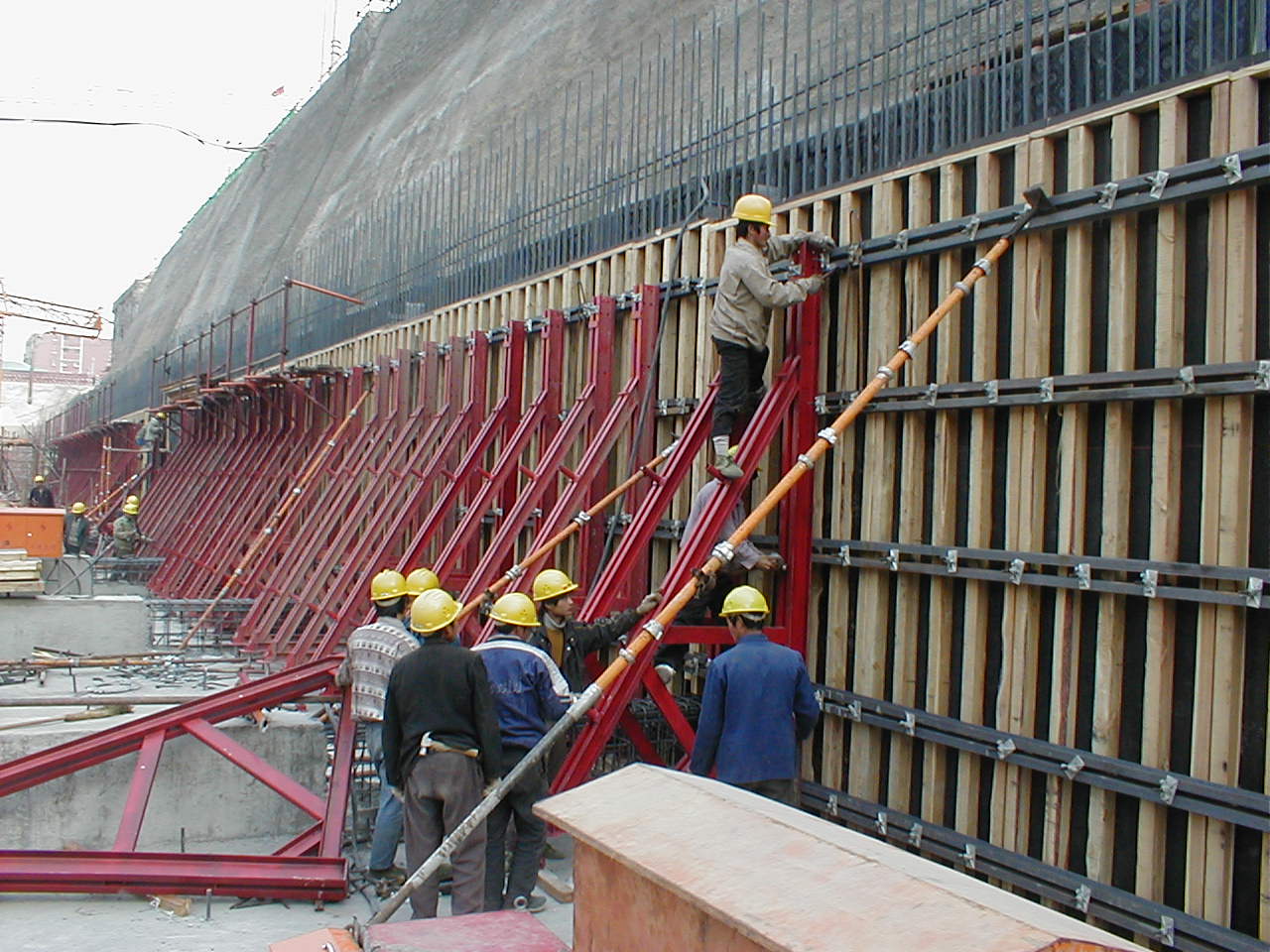

Project display
Packing & Delivery
Certifications

Company Profile

Shandong Zeemo Construction Technology Co., Ltd is subordinate to Dongstar Group.
The group was established in the 1990s and has a 30-year development history. lt is a comprehensive industrial group.The products include coated plywood, formwork system, scaffold and accessories.
Dongstar group is the founding president of china template association. Our intelligent logistics network will deliver in time and effectively reduce costs.Intimate service will cover the whole process.Please rest assured to cooperate with us!
CULTURE:
We are one family, members care each other, cooperate intimately, we sharing dream, idea and love in family. We holding same duty-- to serve clients .
ENTERRISE RESPONSIBILITY:
We cherish clients' trust , oriented to solve the solution forproject Our vision is making the project Zero Emission, Efficient, Money-saving ,Outstanding.
FAQ
Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples? Is it free or extra ?
A3: sample is rechargeable, also the freight.
Q4: What is your terms of payment?
A4: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance against copy B/L.
