Most Popular Circular Curved Concrete Water Tank Formwork for Concrete

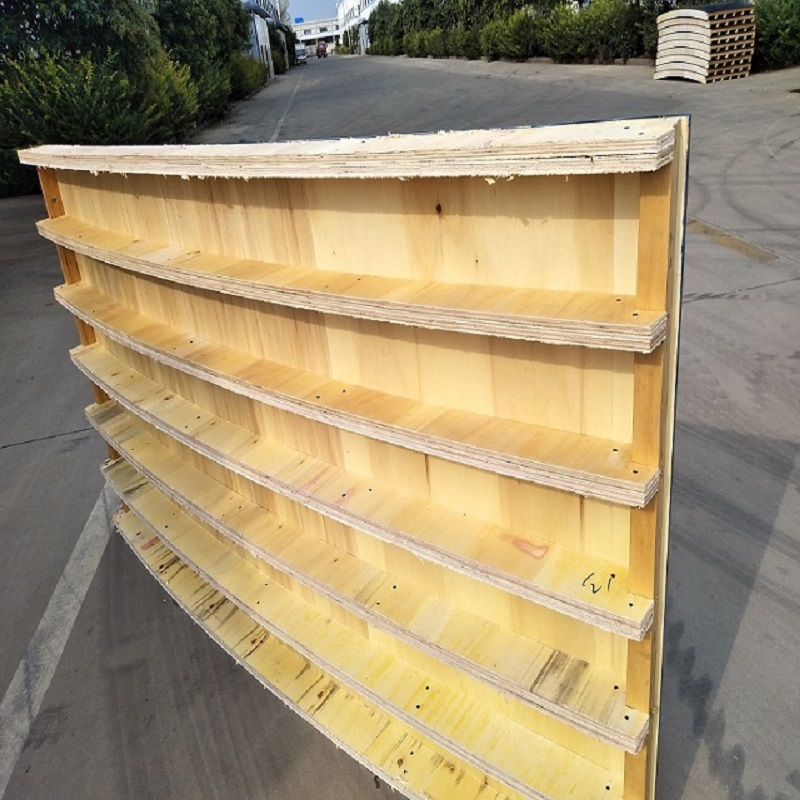

Our Tank formwork is made of plywood, plastic coated face/back/edge.
1)lightweight than steel , easy handling, quickly, save time and labour
2)lower cost
3)easy installation, easy dismantle
4)no need mold-release agent,water can clean, because surface is plastic.
5)nice finish,no need re-work.
Availability:
Quantity:
  • SW-09

  • ZEEMO




         Tank Formwork / Curved Wall

        白底


Our Tank formwork is made of plywood, plastic coated face/back/edge.  then

1) lightweight than steel,easy handling, quickly, save time and labour

2) lower cost

3) easy installation, easy dismantle

4) no need mold-release agent,water can clean, because surface is plastic.

5) nice finish ,no need re-work.

3  白底2

Installation:

1) shape  fixed , no need calibrate onsite

2) place the parts on the ground, joint the parts by fasteners.

3) props and supports.



                                                            Thickness of Plastic   0.5mm

微信图片_20221117103621

Packing:

    16    HK1

Technical Data:

Testing items

Unit

Standard used

Tested value

Bonding quality

N/mm²

EN314

0.72

Bending strength

Longitudinal grain

N/mm²

EN310

50.0

Cross grain

N/mm²

40.2

Elasticity in bending

Longitudinal grain

N/mm²

EN310

5137

Cross grain

N/mm²

3519

Bearing concrete pressure

KN

EN310

70
