ZM-CC15
Zeemo

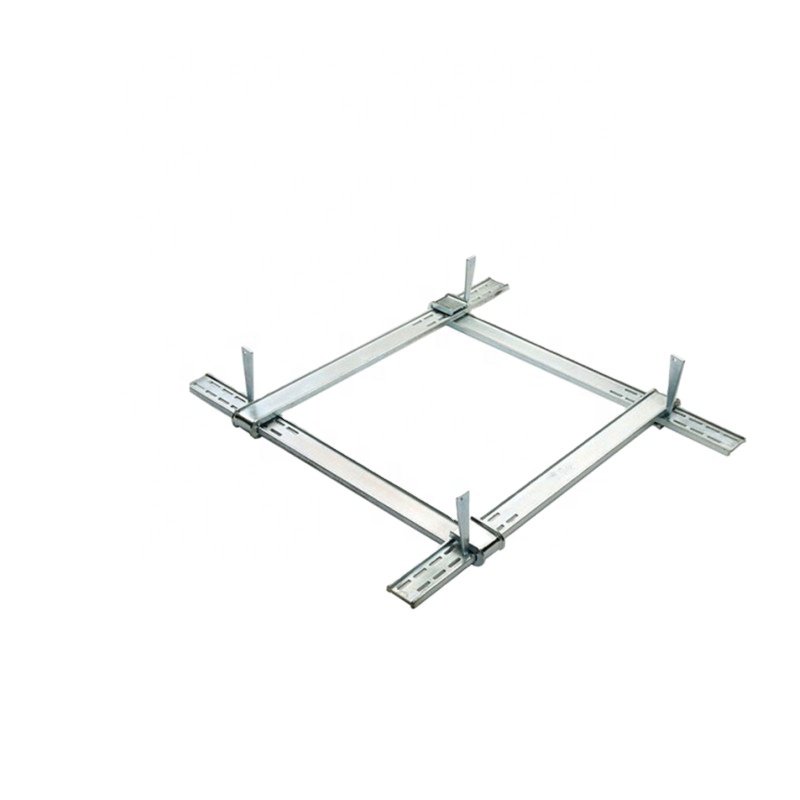

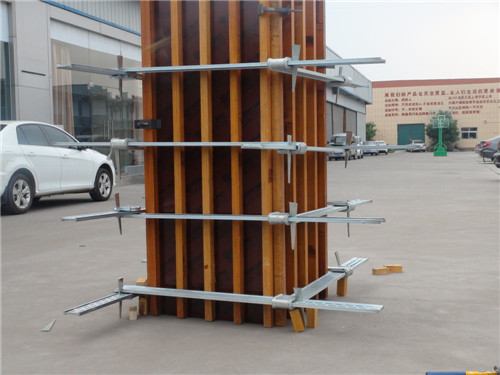

Adjustable column clamps is an innovative steel formwork clamp, which is applicable to the reinforcement of cast-in-site reinforced concrete square column formwork commonly used in engineering construction. Such as mall,hospital,warehouse ect.
The use of adjustable column clamps can greatly improve the efficiency of construction and reduce the labor intensity of workers. With its simple and easy-to-use design, it can effectively ensure the accuracy and stability of the formwork during concrete pouring. Additionally, the high-quality steel material used in the clamps makes them durable and long-lasting. In general, adjustable column clips in construction projects can promote the development of the industry and the improvement of construction standards.

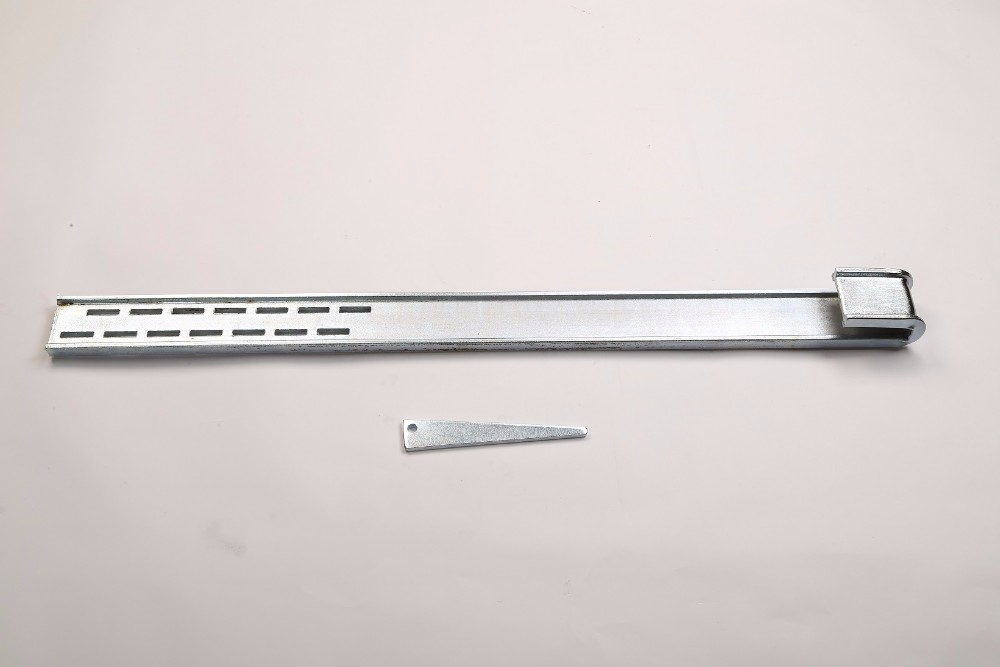

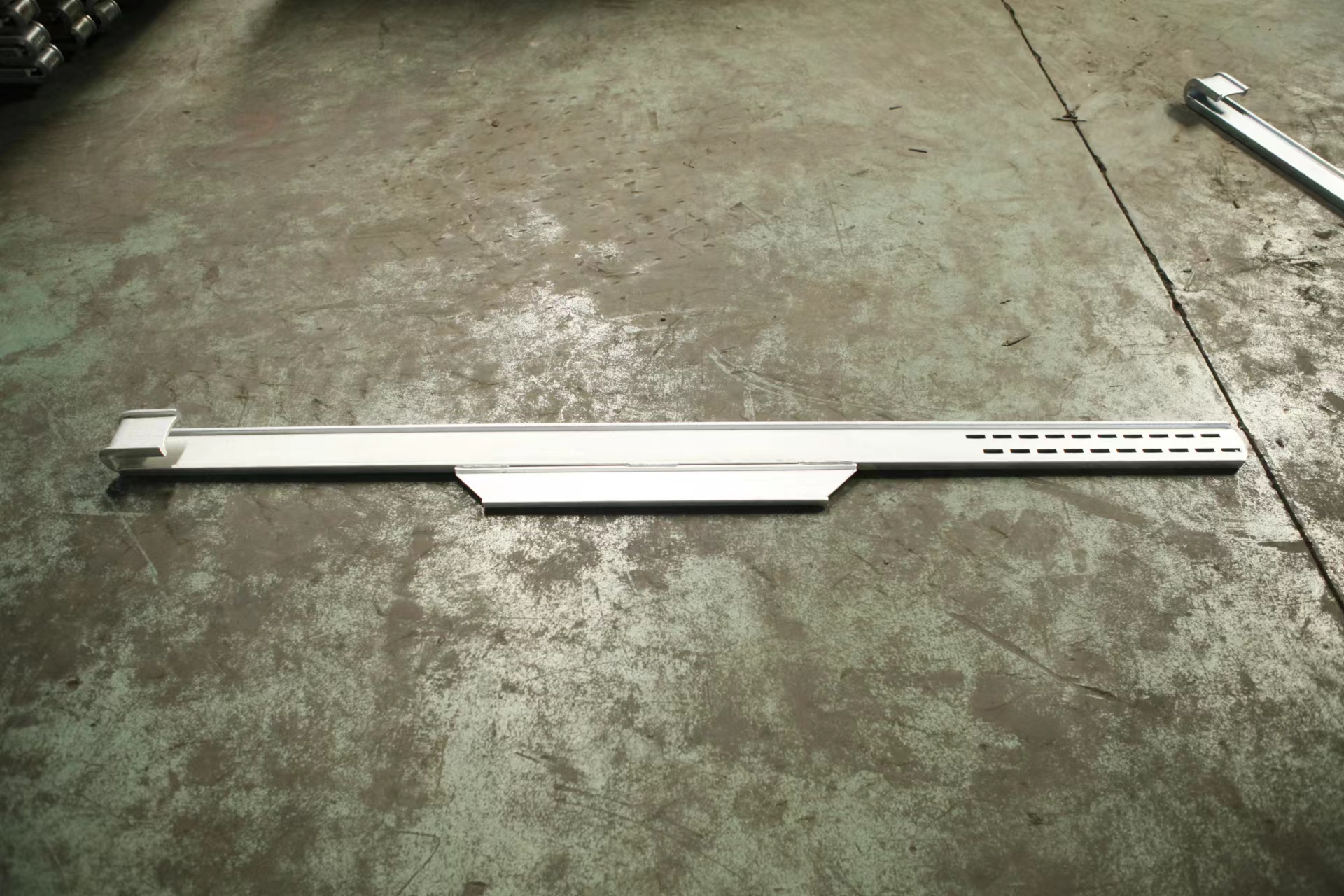

1 set = 4 steel bar+ 4 wedge pin.
✨Specification

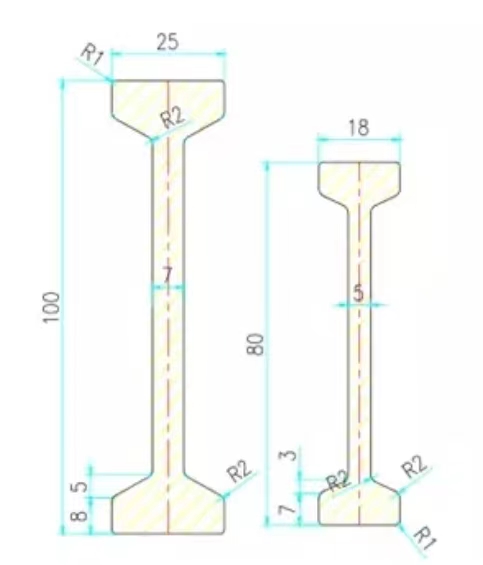

ITEM | Column size, [width of bar] | Thickness | Weight (KG) |
ADJUSTABLE COLUMN CLAMP | 150-200 MM [80mm] | 5-18mm | 15 |
200-400 MM [80mm] | 5-18mm | 20.11 | |
400-600 MM [80mm] | 5-18mm | 23.24 | |
500-800 MM [80mm] | 5-18mm | 27.14 | |
500-800 MM [100mm] | 7-25mm | 48.14 | |
700-1000 MM [100mm] | 7-25mm | 55.44 | |
900-1200 MM [100mm] | 7-25mm | 62.42 | |
1100-1400 MM [100mm] | 7-25mm | 67.94 | |
1300-1600 MM [100mm+] | 7-25mm | 86.26 | |
1500-1800 MM [100mm+] | 7-25mm | 116.54 | |
1900-2100 MM [100mm+] | 7-25mm | 139.34 | |
2200-2500 MM [100mm+] | 7-25mm | 201.14 | |
2500-3000 MM [100mm+] | 7-25mm | 224.82 | |
Column Panel plywood with back LVL (optional) | Width < 2.4 m | 15mm panel, Stud 40*50mm | 15 kg/ M2 |

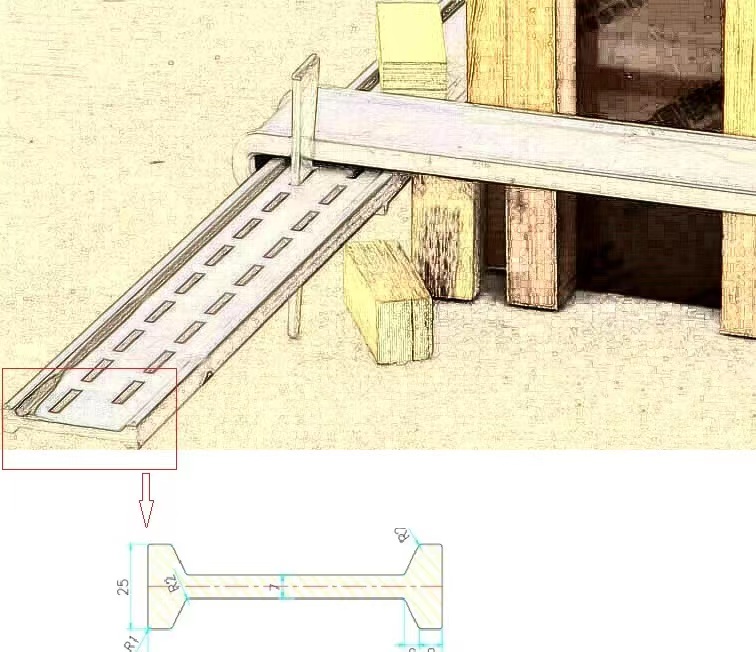

Note: 100mm+means to add side bar like the picture.
✨Products Advantage

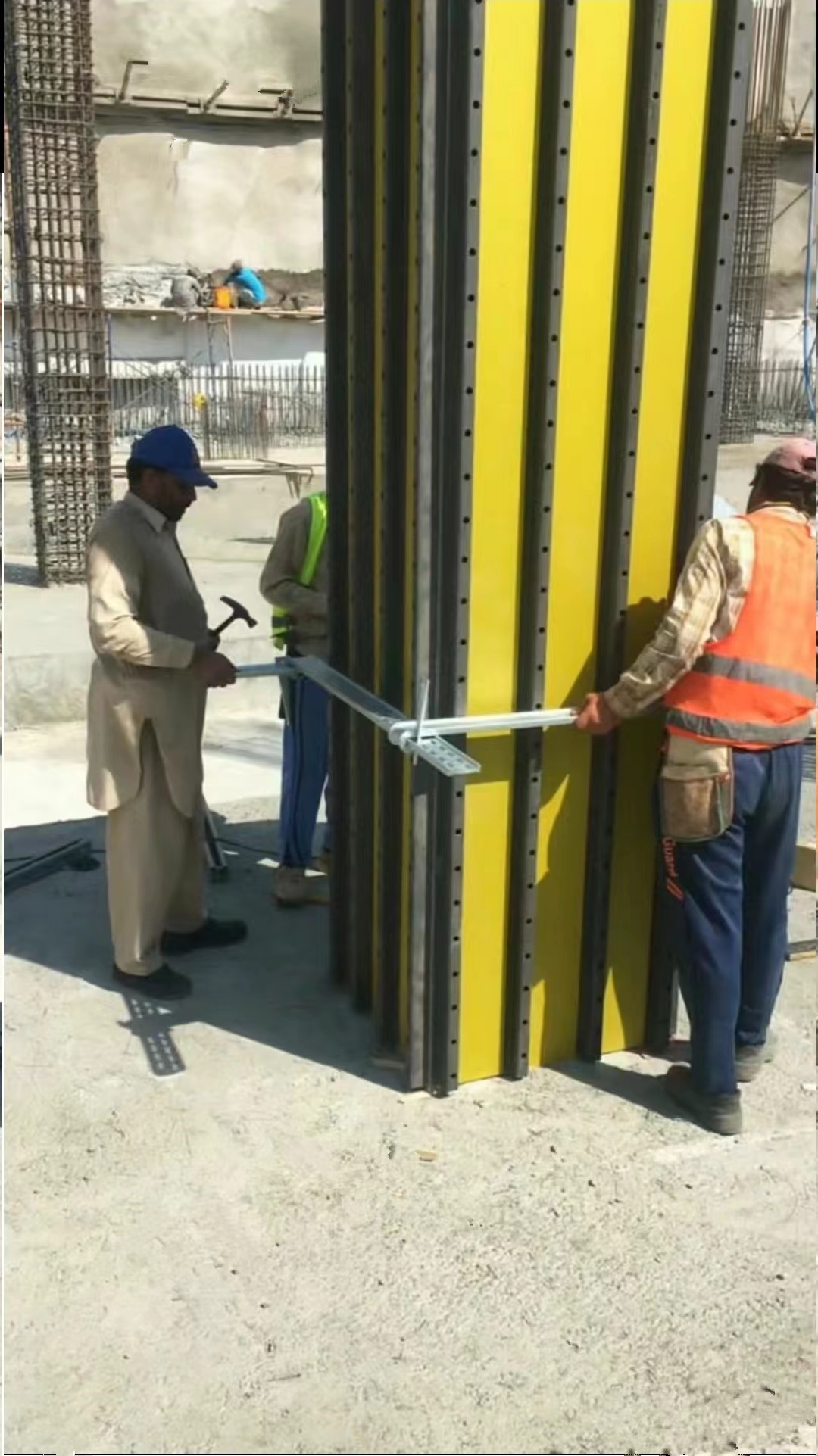

1. Please select the appropriate size of the clamp.
2. When assembling rebar, please note that the direction of parallel bar joints should be the same. The first set of clamps is 150mm from the ground.
3. Insert the wedge pin into the corresponding slot and tighten it with a hammer to complete the fixing of the first group.
4. Refer to the parameter table to install the second set of splints at an appropriate distance and repeat the preceding steps.
