ZM-AFCC
ZEEMO
Easy Install Formwork Accessories Formwork Clamp Adjustable Column Clamp
Item | Column Size (width of bar) | Thickness | Weight | Space of Clamp |
Adjustable Column Clamp | 150-200 MM [80mm] | 5-18mm | 15 | 600MM |
200-400 MM [80mm] | 5-18mm | 20.11 | 500MM | |
400-600 MM [80mm] | 5-18mm | 23.24 | 400MM | |
500-800 MM [80mm] | 5-18mm | 27.14 | 400MM | |
500-800 MM [100mm] | 8-23mm | 48.14 | 400MM | |
700-1000 MM [100mm] | 8-23mm | 55.44 | 350MM | |
900-1200 MM [100mm] | 8-23mm | 62.42 | 350MM | |
1100-1400 MM [100mm] | 8-23mm | 67.94 | 350MM | |
1300-1600 MM [100mm+] | 8-23mm | 86.26 | 300 MM | |
1500-1800 MM [100mm+] | 8-23mm | 116.54 | 300 MM | |
1900-2100 MM [100mmm+] | 8-23mm | 139.34 | 280 MM | |
2200-2500 MM [100mm+ ] | 8-23mm | 201.14 | 250 MM | |
2500-3000 MM [100mm+] | 8-23mm | 224.82 | 250 MM |

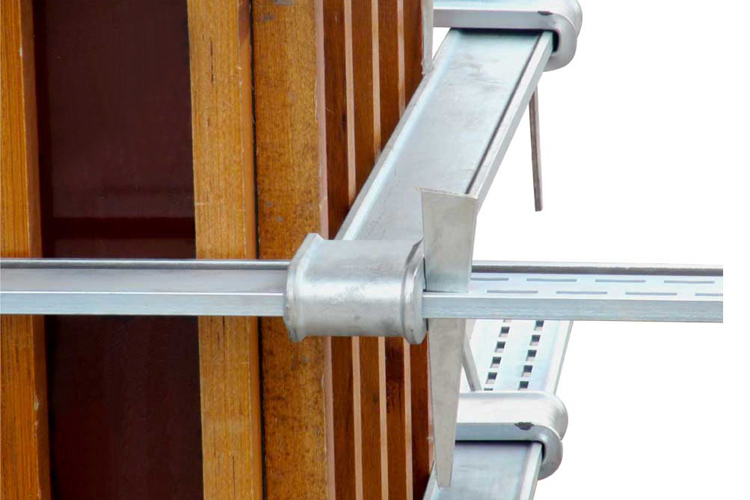

Adjustable Column Formwork Clamp
Easy Install Formwork Accessories Formwork Clamp Adjustable Column Clamp
Item | Column Size (width of bar) | Thickness | Weight | Space of Clamp |
Adjustable Column Clamp | 150-200 MM [80mm] | 5-18mm | 15 | 600MM |
200-400 MM [80mm] | 5-18mm | 20.11 | 500MM | |
400-600 MM [80mm] | 5-18mm | 23.24 | 400MM | |
500-800 MM [80mm] | 5-18mm | 27.14 | 400MM | |
500-800 MM [100mm] | 8-23mm | 48.14 | 400MM | |
700-1000 MM [100mm] | 8-23mm | 55.44 | 350MM | |
900-1200 MM [100mm] | 8-23mm | 62.42 | 350MM | |
1100-1400 MM [100mm] | 8-23mm | 67.94 | 350MM | |
1300-1600 MM [100mm+] | 8-23mm | 86.26 | 300 MM | |
1500-1800 MM [100mm+] | 8-23mm | 116.54 | 300 MM | |
1900-2100 MM [100mmm+] | 8-23mm | 139.34 | 280 MM | |
2200-2500 MM [100mm+ ] | 8-23mm | 201.14 | 250 MM | |
2500-3000 MM [100mm+] | 8-23mm | 224.82 | 250 MM |
Adjustable Column Formwork Clamp
1.Within 3 meters, no need tie rod, no need to punch on film faced plywood, no need to clean the wall, reduce the repair cost in future.
2.Easy operation, saving labor, can be multi-purpose, solve the diameter change problem.

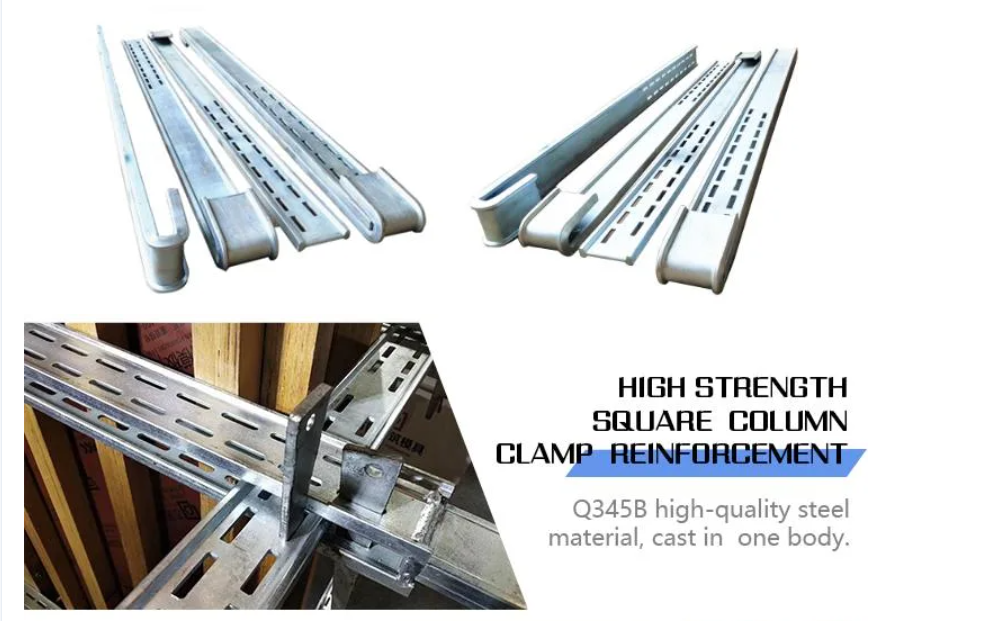

3. High strength, less accessories,simple procedure, convenient installation and disassembly, high turnover times
1.Within 3 meters, no need tie rod, no need to punch on film faced plywood, no need to clean the wall, reduce the repair cost in future.
2.Easy operation, saving labor, can be multi-purpose, solve the diameter change problem.
3. High strength, less accessories,simple procedure, convenient installation and disassembly, high turnover times
