Factory price concrete construction formwork beam clamps

Beam Clamp system from ZEEMO Formwork is a better improvement over the traditional of reinforcement beam formwork by a tie rod free way on fasten tight and find support from the ground.
1 set equal to 2 bar with 2 wedge pin (Wedges pin/Adjustable stand/Bar)
Availability:
Quantity:
  • ZM-BC21

  • Zeemo

Product Description

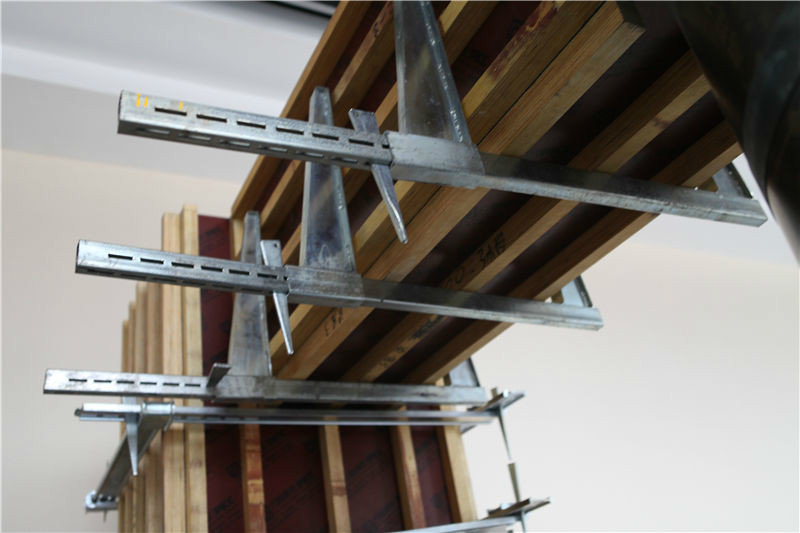

Concrete formwork beam clamps


The Beam Clamp system by ZEEMO is a superior improvement over traditional steel beam formwork. This system securely fastens and provides support from the ground up, eliminating the need for pull rods.


Each set includes two rods and two wedge pins (wedge pin/adjustable support/rod). With its innovative design and ease of use, the Beam Clamp system offers a professional solution for your construction needs.

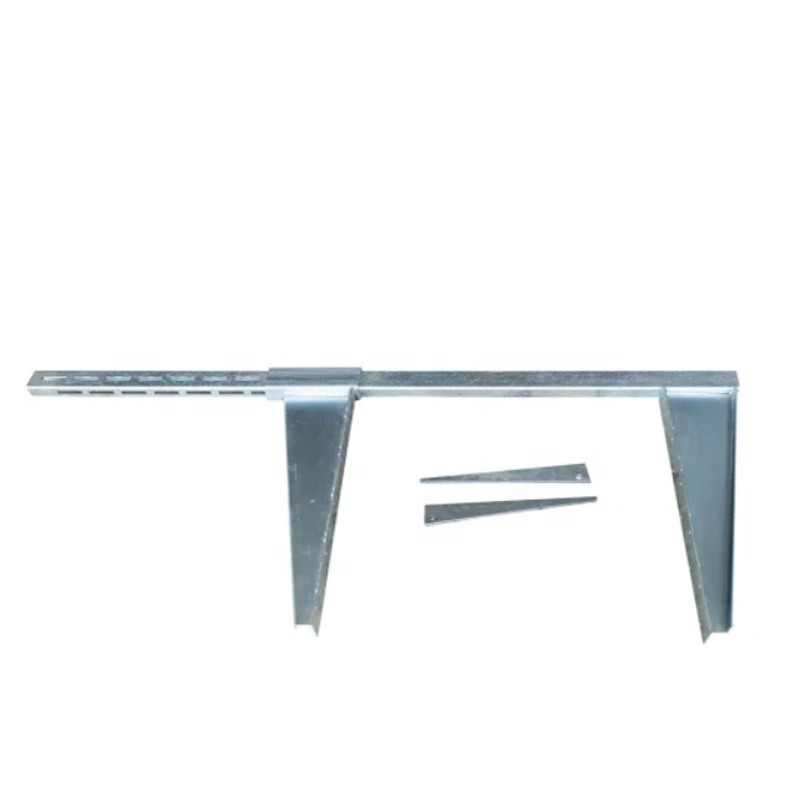

formwork beam clamp

Specification

Material
Q235 Steel galvanized
Standard
DIN GB ISO JIS BA ANSI
Weight
6 kg -7 kg
Use
Slab beam, ground beam, tie beam
Size
200-400mm , 400-600mm
Height
510mm

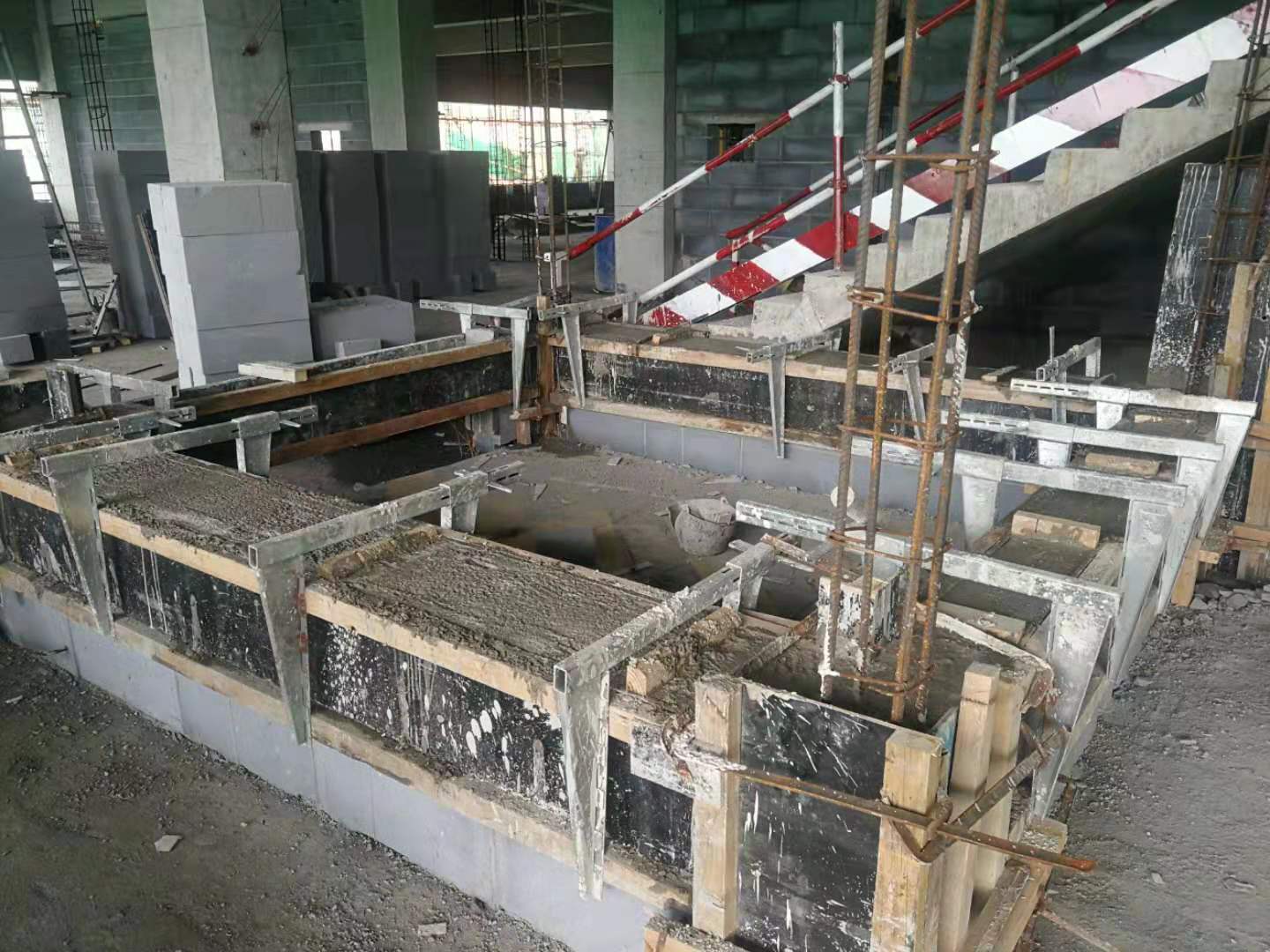

beam clamps
Application:

To withstand the pressure against the beam formwork while concrete pouring


Main effect:
1. Fasten the beam formwork
2. Support the beam formwork
3. Withstand the pressure from the beam formwork while concrete forming.

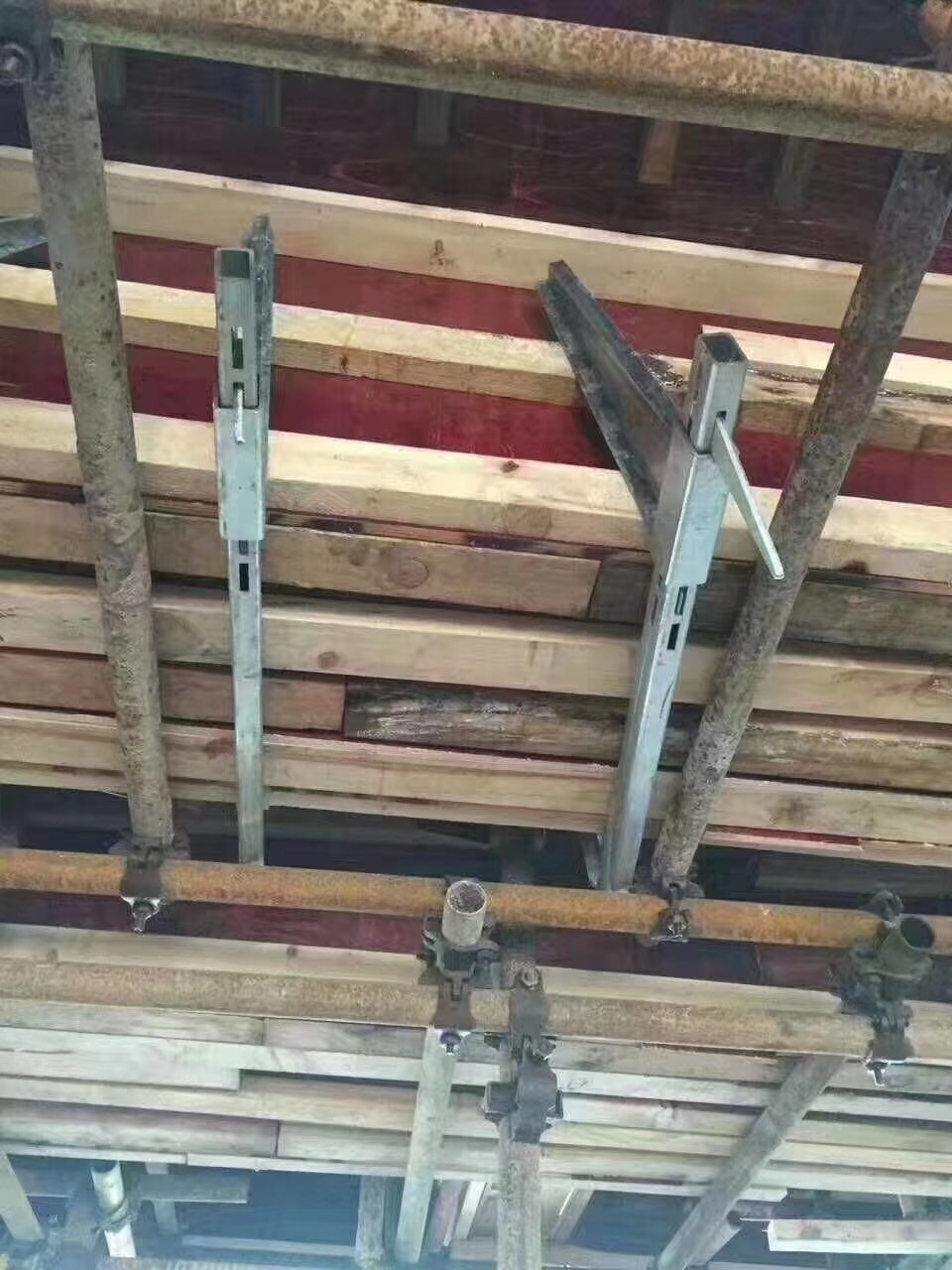

galvanized clamp
steel clamp

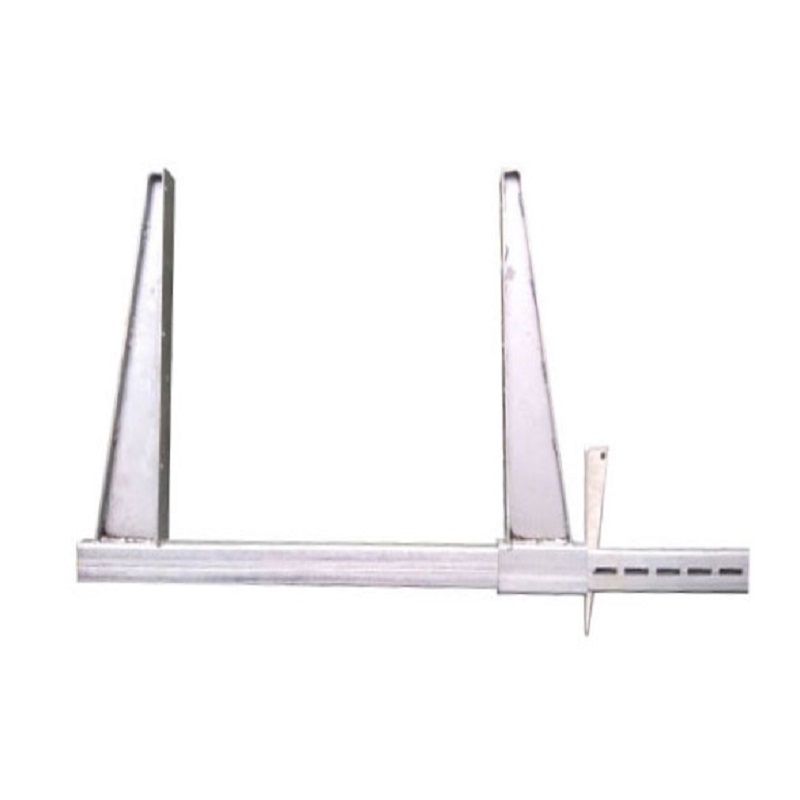

metal clips
Features:

1. Made by Q235B steel,galvanized
2. Adjustable size by slots
3. Two wedge pins to keep fastening
Advantages:

1. Quick loading and unloading.

2. Lightweight and easy to operate.

3. Self support.

4. Adjustable, covering all ranges of 200-600mm width, up to 800mm, and 200-600mm.

5. Highly reusable tools.


beam formwork

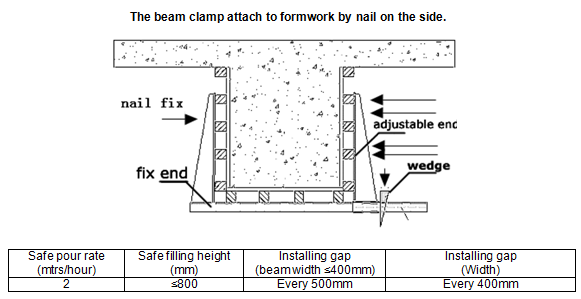

Intallation:
To fasten the beam formwork ,choose the right dimension beam clamp available from which 200mm to 600mm,place the fix end and bottom against to the formwork. Push the adjustable end against to the other side of the beam,plug in the wedge and fasten the clamp by knocking the wedge down by hammer.

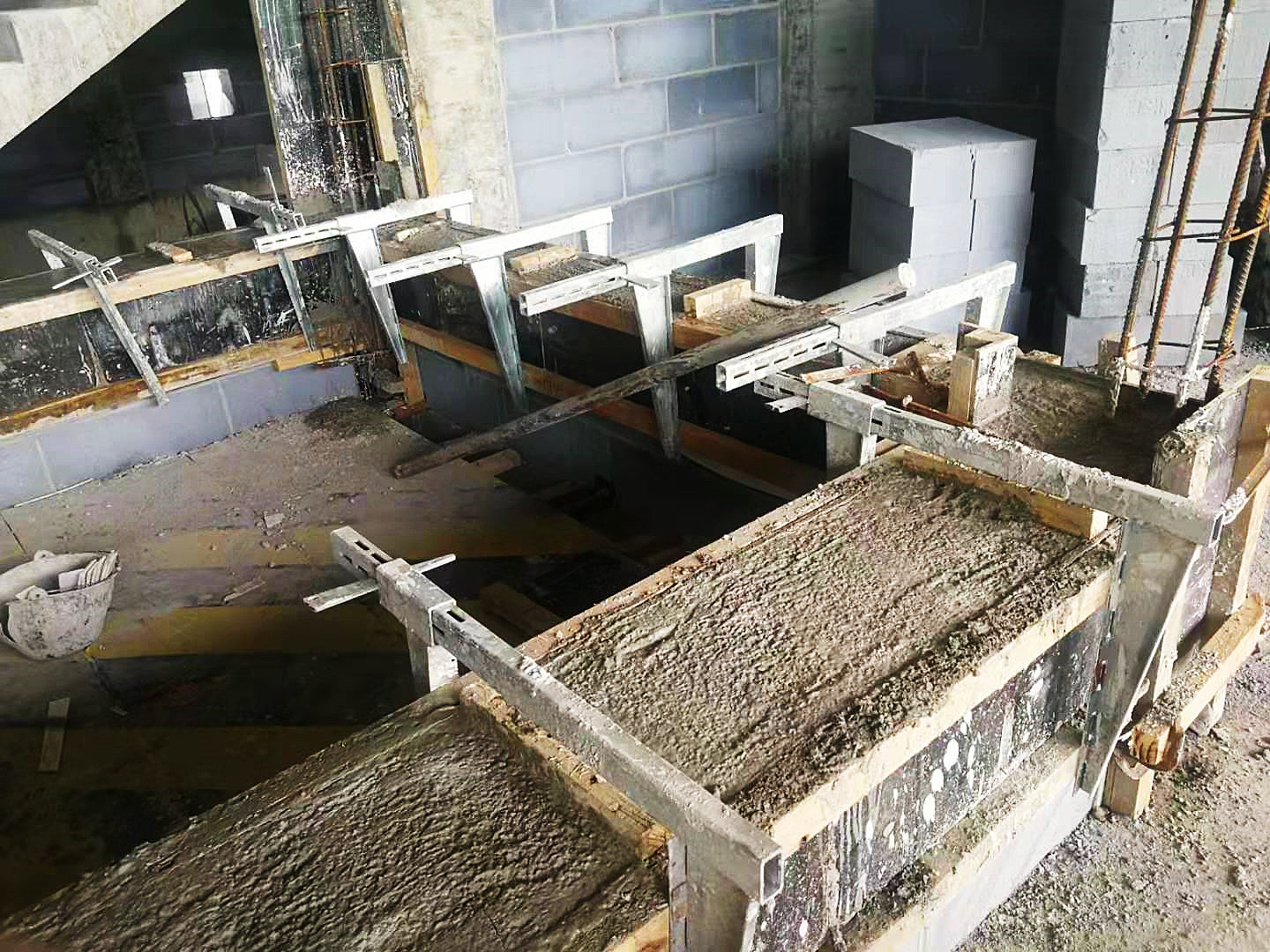

More picture:
formwork accessories

Q235steel


Certifications





Packing:

steel pallet , 50 sets / pallet


Delivery:

7 days after deposit
