Construction wooden formwork system H20 beam

Timber beam is a very important part of formwork system and has been widely applied in construction.Not only used in wall /column / slab / core formwork in High rise commercial project, but also in public infra such as Bridge /Tunnel/ Airport/Powerplant/ water treatment etc.
Availability:
Quantity:
Inquire Add to Basket

  • ZM-TB27

  • Zeemo

Product Description
Waterproof H20 Wood Beam For Formwork System


SPECIFICATION:
H20 timber beam
spruce H beam
H20 Size
Height 200mm , width 80mm
Available length (M)
1.5  1.9  2.45   2.75   2.9   3.0   3.3   3.6   3.9   4.5   4.9   5.9 ect.
Flange
North Europe solid wood spruce ,width 80mm thickness 40mm
Web
Plywood 27mm * 150mm
Glue
WBP glue
Weight
4.5 kg/m
Moisture Content
12% ex workshop
H20 beam
Beam formwork


Custom size:
H20 as well as H16 can be made into any length within 5.9 meter.
As required, standard holes can be drilled in the two ends of timber beams. We can lengthen the timber beam by end-to-end join. According to customers’ demand, we can produce timer beams with any length.

PHYSICAL PROPERTIES:

Test Items
European Standard
Test Data
 Allowable Values
DIN 1052-1:1988-04
 Limits of load-bearing Capacity
DIN 1052:2008-12/Eurocode 5
H20 Beam
H20 Beam ECO
 Shearing Resistance (KN)
11
23.9
29.13
37.22
 Bending Resistance( KN )
5
10.9
15.74
19.77
 Bearing Resistance (KN)
22
47.8
50.20
63.30
H16 wooden beam
FEATURES:

1 Flange is made of imported Finnish spruce
2 Web is made of Plywood , WBP adhesive
3 Two ends of each beam could be sealed with plastic cap or steel cap to protect it from moisture,crash,or harm to labor
4 Yellow Waterproof painting.
5 EN13377 Standard qualified.
Waterproof timber beam

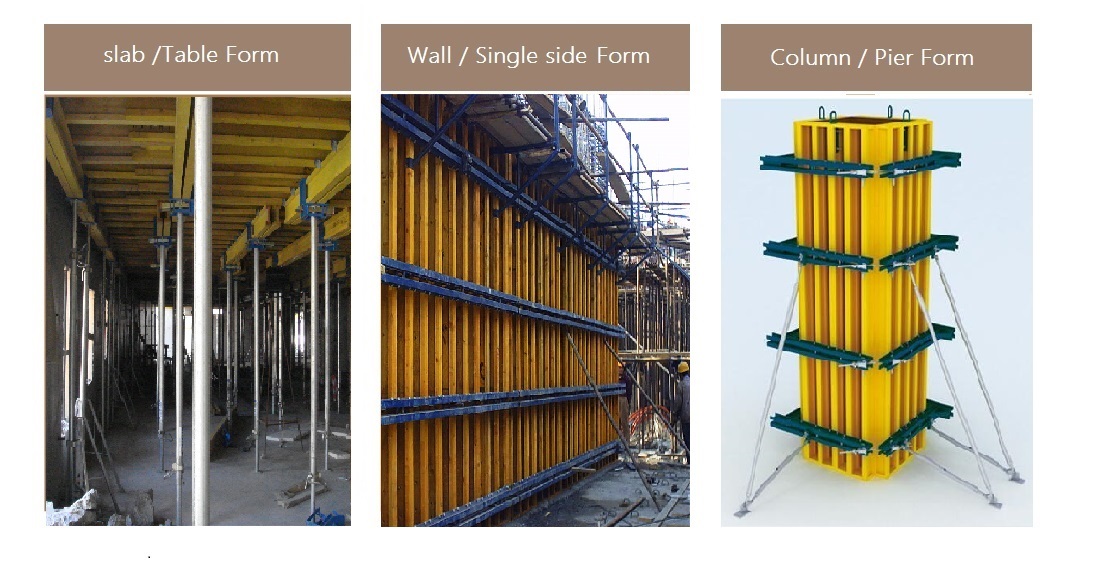

Products Application
               Timber beam is a very important part of formwork system and has been widely applied in construction.Not only used in wall /column / slab / core formwork in High rise commercial project, but also in public infra such as Bridge /Tunnel/ Airport/Powerplant/ water treatment etc.
Project in Dubai:
Doka h20 beams
high quality
Recommend Products

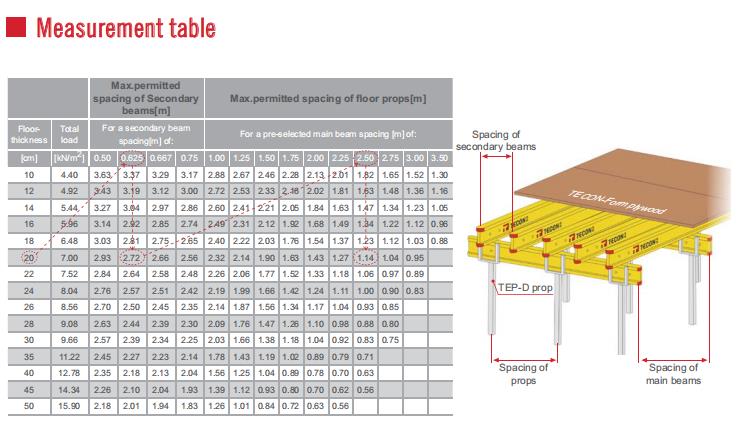

Know How of H20 & Props in Slab:
table formwork
column formwork
H20 beam formwork
Packing & Delivery
Packing Details:
1.export package covered with waterproof shrinking film& craft paper, bundle with steel stripes outside.
2. packing in pallet, 150pcs/ pallet or special logistic packing according to customer request.

Delivery Details:   5-10 days after order
yellow plywood beam
H16 beams
Company Profile

Shandong Zeemo Construction Technology Co Ltd is a member of Dongstar Group , a multiple industry group in filmface plywood ,construction formwork system , Scaffolding & accessories. President Mr. Wei, is nominted as the president of China Shuttering Board Committee .
Our core :

integrating these formwork products to compose an optimium solution.
Our intelligent logistic net could deliver products timely & cost effectively.
Culture:
we are one family, members care each other, cooperate intimately, we sharing dream, idea and love in family. We holding same duty-- to serve clients.
Enterrise responsibility:
we cherish clients’ trust , oriented to solve the solution for project.
Our vision:
making the project Zero Emission, Efficient, Money-saving ,Outstanding.
FAQ
Q1. What do you do?
A: We manufacture and integrating existing formwork and scaffolding products to compose a optimium solution for pouring concrete structure in the field of housing, multi-story structure, high rise buildings, towers, sports stadiums, bridges, hydropower stations, industrial structures etc.

Q2. How many construction projects have you accomplished?
A: 400 both in China and abroad.

Q3. Have you accomplished any landmark?
A: Yes, we have. For example, PAFC (660 meters tall), The 21 Century Building, 2008 Beijing Olympic Main Stadium, CCTV New Site,Colombo Lotus Tower(Sri Lanka), Hong Kong-Zhuhai-Macau Bridge, Gezhouba Pubugou Hydropower Station etc.

Q4. What can you do for us?
A.We offer our suggestions, drawings of formwork layout, and quotations to the owners, design institutes, or contractors of the construction projects.
B.We sell our products to the contractors, building companies, or trading companies
C.We support our worldwide peer companies with our outstanding formwork or scaffolding products.
D.We provide remote or on-site instruction to the builders.

Q5. What do you need in order to make a brief design and quotation when we have a construction project to be built?
A: Structural drawing and section drawing.

Q6. How long does it take to make a brief design and quotation after we offer the structural drawing?
A: In general, it takes 5~7 days based on specific requirements of construction project.

Q7. How long dose it take to manufacture the products after the signing of contract?
A: In general, it takes 30~60 days based on the type and quantity of products to be produced.

Q8. Are your products available for leasing?
A: Our products are available for leasing in Indonesia, Singapore, Dubai, Australia, New Zealand. It depends on local relevant regulations in other countries.
