Chinese Manufacturer Peri Doka Concrete Column Beam Formwork Clamp

Manufacturer Peri Doka Concrete Column Beam Formwork Clamp
Availability:
Quantity:
Inquire Add to Basket

  • HW-09

  • ZEEMO

Products Description
Timber beam column formwork is used for the concrete pouring of Column. The application of column box formwork has greatly increased the construction efficiency and reduced the cost. The system is convenient for construction and it is easy to control the quality.
The system has four parts: plywood, timber beam , steel waling and Pull-push props. Pull-push props can be designed according to the project or simply select the scaffold. Tie-yoke and tie-rod are used to reinforce the corner.
Timber Beam Column Formwork
Timber Beam Column Formwork is used for the concrete pouring of square or rectangle column.
Adjustable column formwork
The adjustment of adjustable column formwork is realized by changing the steel waling relative position.
Specification
Packing
By steel pallet or by strap in bundle, or according to client's request
Type
concrete column formwork
Warranty
1 Year
After-sale Service
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
Project Solution Capability
graphic design, 3D model design, total solution for projects
Application
Apartment,Commercial construction,Infrastructure
Design Style
Minimalist
Place of Origin
Shandong, China
Feature
Modular formwork, can meet high fresh concrete pressure up to 80KN
Brand Name
ZEEMO
Model Number
HC-2
Permitted fresh concrete pressure:
80 KN/SQM
Material
H20 timber, Steel waler
Standard
EN13377
H20 Timber beam
imported spruce flange, plywood web
MAX Pouring Height
Plywood
Weight
Leading Time
9 meters
18mm hardwood
65kg/SQM
35 days

Ajustable Column Formwork

The adjustment of adjustable column formwork is realized by changing the steel waling relative position.
The steel waling of standard adjustable column formwork has three specifications, this can satisfy the need of concreting of column with side length from 200mm to 1200mm.  When the steel waling are 1200-1500 mm long, we can adjust the section dimension from 800*800 mm to 400*400 mm or any size column with side length from 400mm-800mm, squre or rectangle.
The length of steel waling(mm)
The size of column(mm)
1500-1800
800-1200
1200-1500
400-800
900-1200
200-400

Advantages

Advantages
1. Available for all size wall , flexible panel height up to 9.0 meter or stack to be higher, or connect to be wider with
exisiting girder/waling length.2. Allowed fresh concrete pressure : up to 80KN/ SQM.
3. Capable for any shape or corner angles , we can prefabricate the special shape waling accroding to your drawing.
4. Fare Face Concrete ensured.
5. Time and Money saving formwork. Pre-assemble formwork can improve the efficiency.
Recommend Products
Our Factory
Shandong Zeemo Construction Technology Co Ltd is a member of Dongstar Group , a multiple industry group in filmface plywood ,construction formwork system , Scaffolding & accessories. President Mr. Wei, is nominted as the president of China Shuttering Board Committee . Our core is integrating these formwork products to compose an optimium solution. Our intelligent logistic net can deliver products timely & cost effectively. Service team will follow all the way.
CULTURE
we are one family, members care each other, cooperate intimately, we sharing dream, idea and love in family. We holding same duty-- to serve clients .
ENTERRISE RESPONSIBILITY
we cherish clients' trust , oriented to solve the solution for project. Vision is making the project Zero Emission, Efficient, Money Saving ,Outstanding.

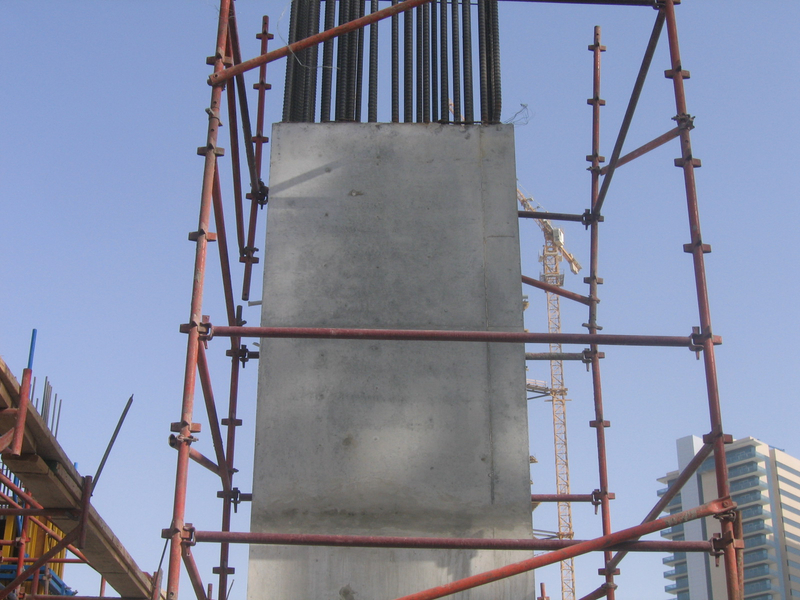

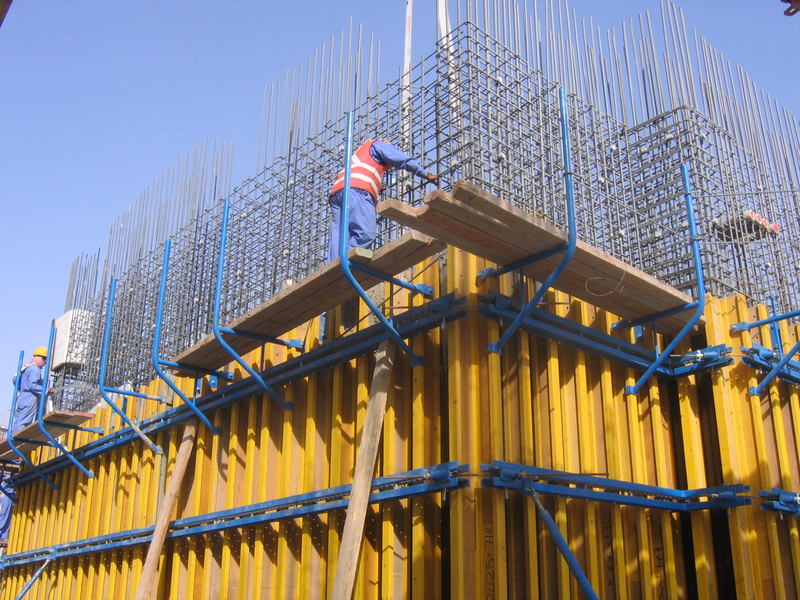

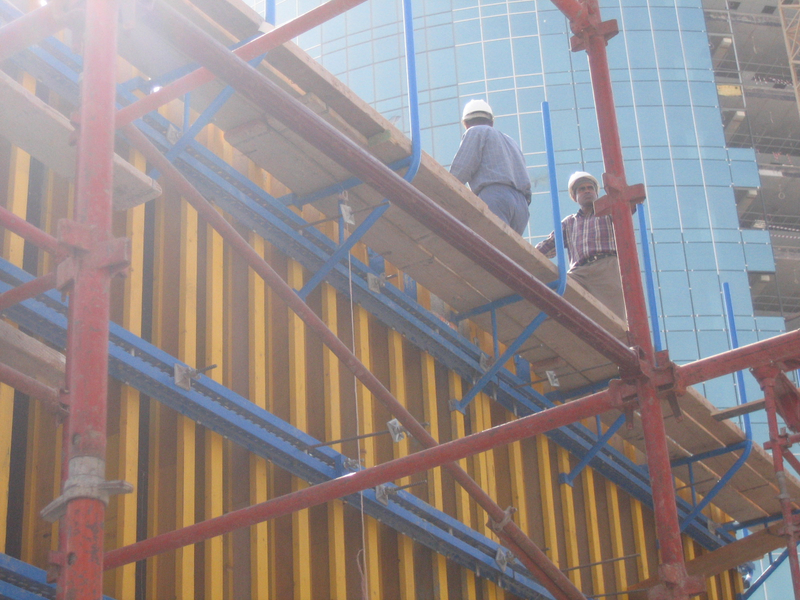

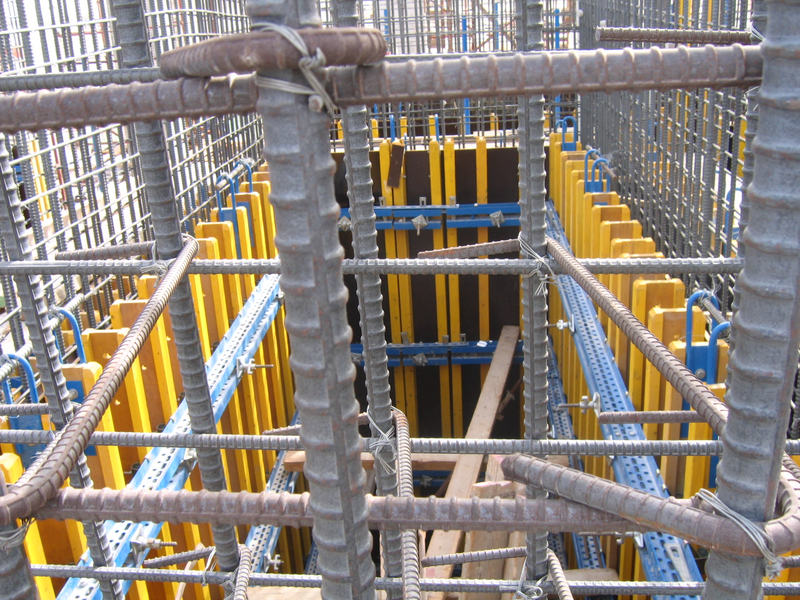

Customer Photos
Contact Us
Certifications
✨FAQ

1. who are we?
We are based in Shandong, China, start from 2022,sell to Domestic Market(50.00%),Mid East(20.00%),Central America(10.00%),South
America(10.00%),South Asia(10.00%),Southeast Asia(10.00%),North America(10.00%),Eastern Asia(5.00%),Africa(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
H20 FORMWORK,Climb formwork,formwork clamp,scffold plank,filmface plywood.
4. why should you buy from us not from other suppliers?
Our core is integrating these formwork products to compose an optimium solution. Our intelligent logistic net can deliver products timely & cost effectively. Service team will follow all the way.
