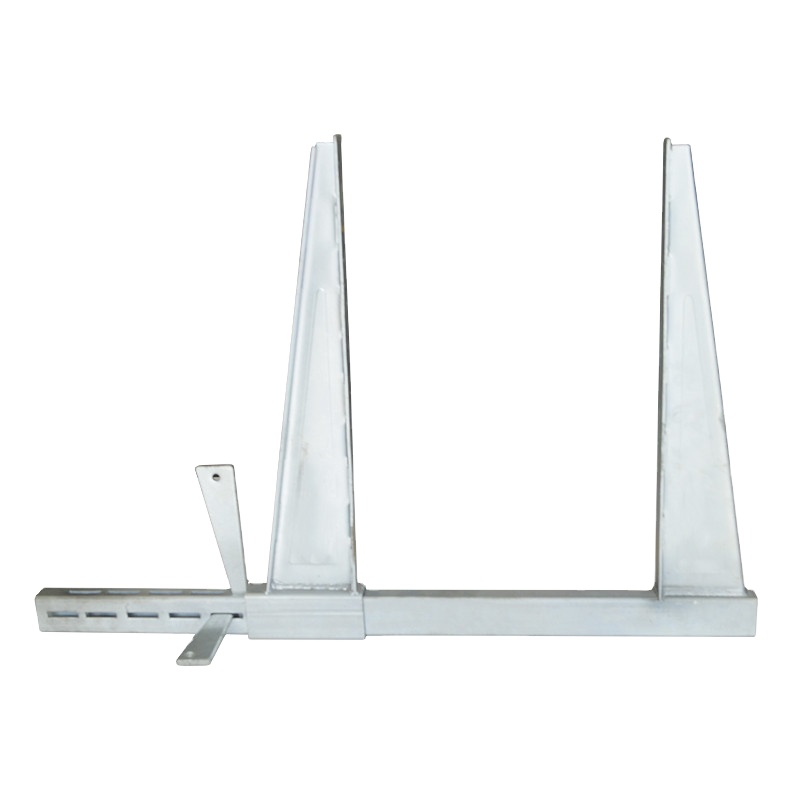

Adjustable formwork beam clamp

Zeemo beam formwork clamp is to withstand the pressure against the beam formwork while concrete pouring.
Availability:
Quantity:
  • SLB-3

  • Zeemo

  • SLB-3

Product Description

Introducing the Adjustable Formwork Beam Clamp by ZEEMO - the enhanced alternative to traditional beam formwork reinforcement methods. This innovative clamp system eliminates the need for tie rods and securely fastens the formwork while providing reliable ground support.

Designed to meet the highest industry standards, our Adjustable Formwork Beam Clamp offers a professional solution for efficient and durable formwork construction. With its user-friendly design and reliable performance, this clamp system is a must-have for any construction project requiring reinforced beam formwork. Trust ZEEMO for all your formwork needs and experience the difference in quality and efficiency.


Specification

Size
Weight
Clamp space
Height
Raw Material
200-400mm
6.7kg
600mm
550mm, can make beam height up to 800mm
Steel Q235,
Galvanized,      square tube 40*50mm,  Accessory: 2 pins
400-600mm
7.9kg
500mm


Feature

1. Swiftly manage, set up & take apart.
2. Featherweight for effortless operation.
3. Independent and self-sustaining.
4. Adaptable, encompassing a width range of 200-600mm, with a maximum height of 800mm.
5. Tools that can be used repeatedly with great efficiency.


Application

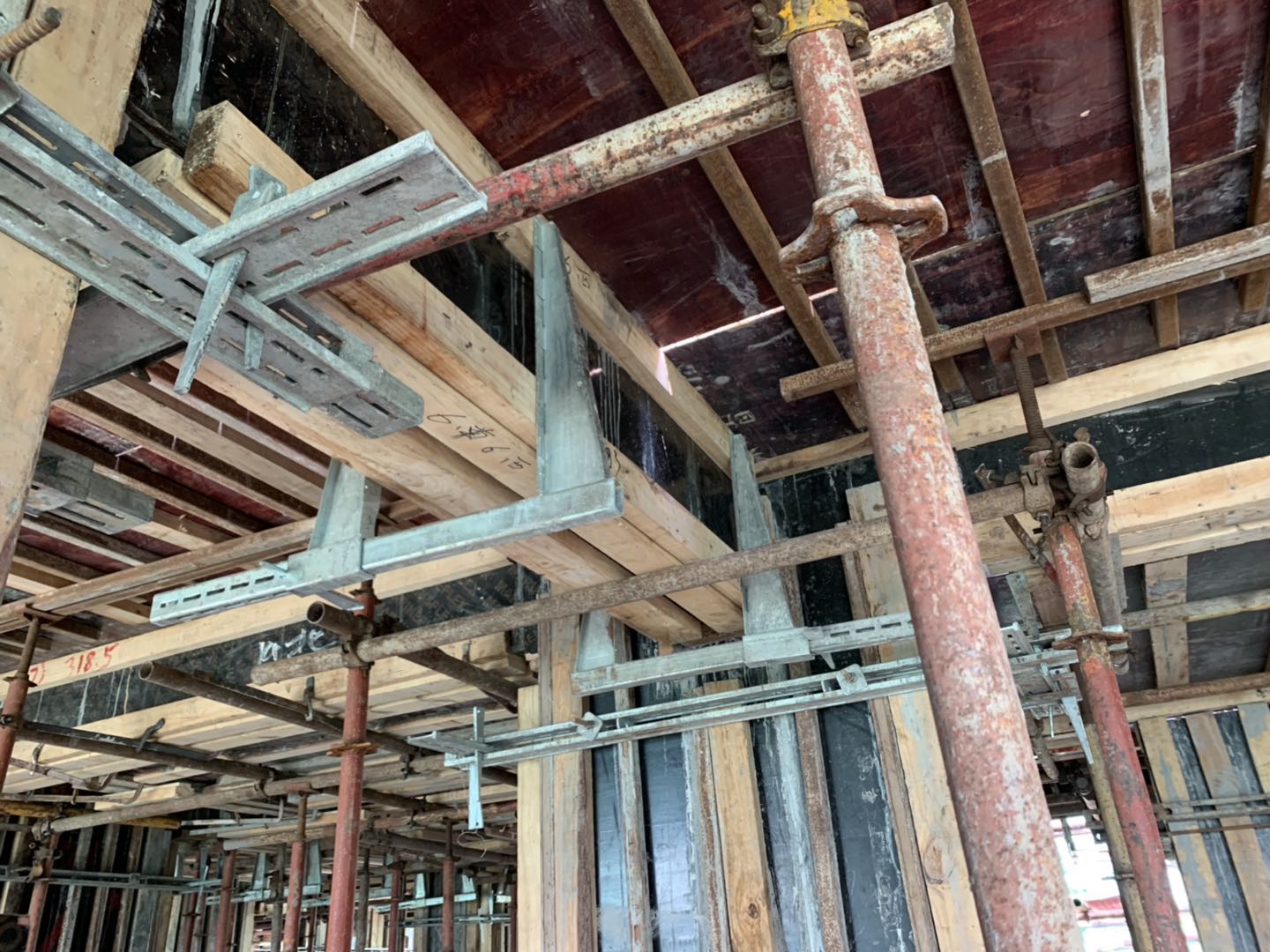

To withstand the pressure against the beam formwork while concrete pouring

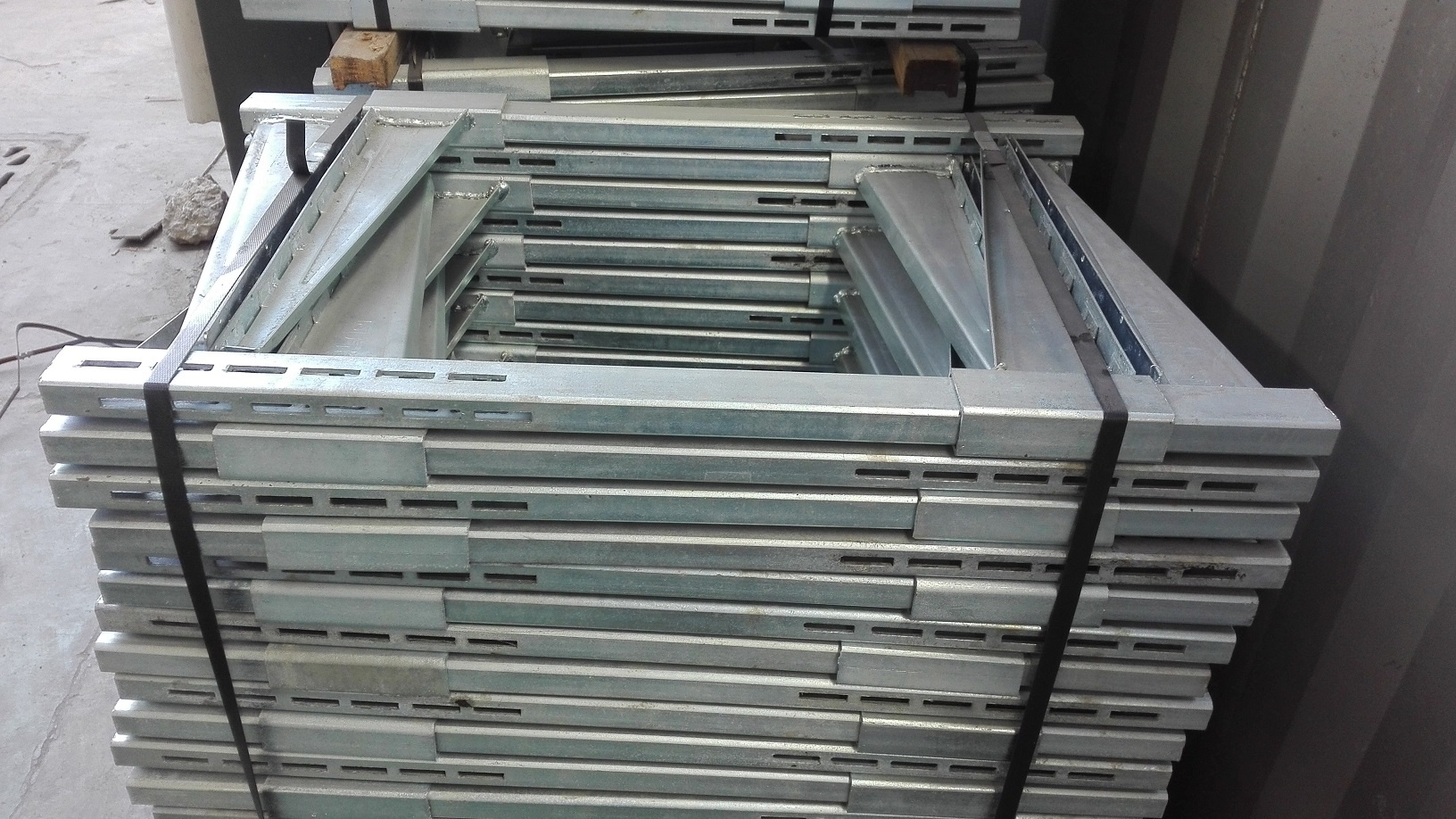

Packing & Delivery

The export package is securely wrapped with waterproof shrink film and craft paper. It is then bundled with steel stripes on the outside, or according to the specific requirements of the customer.
