ZEEMO 48/60mm Adjustable Telescopic Galvanized/Painting Scaffolding Steel Props

  • Material: Q235,Q345 Steel
  • Warranty: more than 5 years
Size:
40-48 mm
48-56 mm
48/60 mm
Availability:
Quantity:
Inquire Add to Basket

  • ZM-SSFP

  • ZEEMO

steel props

1. Brief Introduction


 Adjustable Steel Floor Prop is a kind of support component widely used in any vertical and any shape of floor formwork. The structure is simple, flexible, assemble is convenient, so it is support component economical and practical.

(1) Connection Pin

(2) Adjust Screw Tube

(3) Adjust Nut

(4) Handle

The adjustable floor prop mainly from inside and outer of the relative positions of the different fixed point to achieve. The fine-tuning of the branch located at the scene, according to the actual height adjustment.

2. Components
Article No.

Name
Weight
 (KG)
1
250A floor prop (75/60)
13.63
2
300A floor prop (75/60)
15.40
3
350A floor prop (75/60)
18.63
4
400A floor prop (75/60)
25.32
5
250B floor prop (60/48)
10.06
6
300B floor prop (60/48)
13.18
7
350B floor prop (60/48)
17.79
8
550B floor prop (88.5/75.5)
29.30
3.  The adjustable scope of the floor support
The adjustable scope of the floor support
Floor prop
Scope
2500mm
1400~2500mm
3000mm
1650~3000mm
3500mm
1900~3500mm
4000mm
2150~4000mm
5500mm
2900~5500mm
4. Floor Prop Bearing Capacity Table


Product Name
Adjustable Steel Scaffolding Prop
Tube diameter
40-48 mm / 48-56 mm / 48/60 mm
Tube thickness
1.6mm-2.5mm
Plate
120*120*5/6mm


Length
Light Duty Prop:
0.6-1.1m/0.8-1.4m/1.6-2.9m/1.8-3.2m/2.0-3.6m/2.2-4.0m
Heavy Duty Prop:
1.6-2.9m/1.8-3.2m/2.0-3.5m/2.0-3.6m/2.2-4m/3.0-5.0m/3.5-6m
Plate type
suqare plate or flower plate
Surface finished
painted, powder coated, galvanized
Packing
1500 pcs or 2000 pcs / 20' FT container

scaffold props

Project :TWO TOWERS
Date : 2006
Builder: NANTONG LIUJIAN CONSTRUCTION GROUP CO.

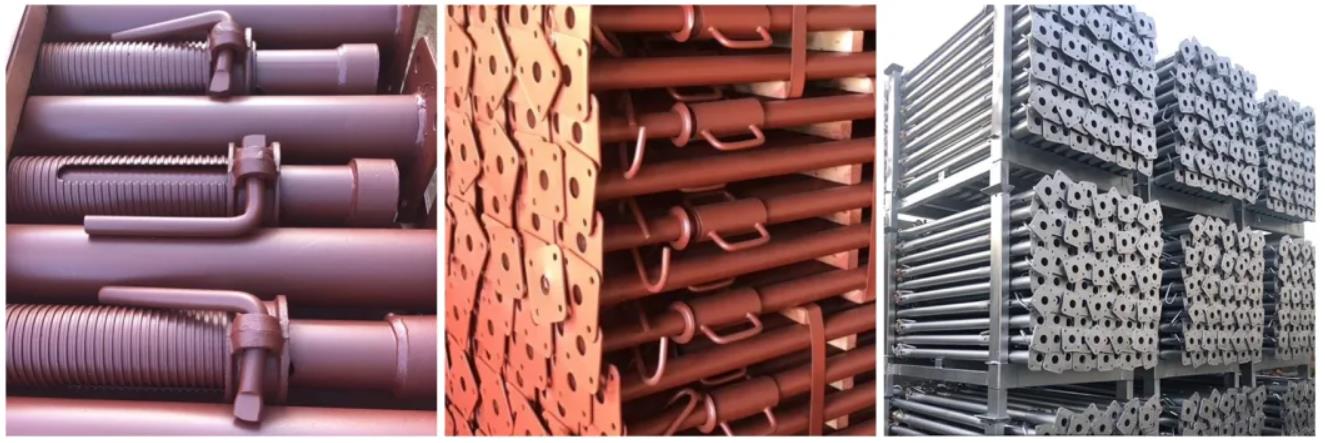

Packing & Delivery
packed in bundle or according to clients requirement
