ZEEMO 48/60MM Galvanized Adjustable Shoring Steel Scaffolding Prop

  • Surface: Hot Dipped Galvnazied
  • Material: Q345 Steel
Availability:
Quantity:
Inquire Add to Basket

  • ZM-SSP

  • ZEEMO

Product Description

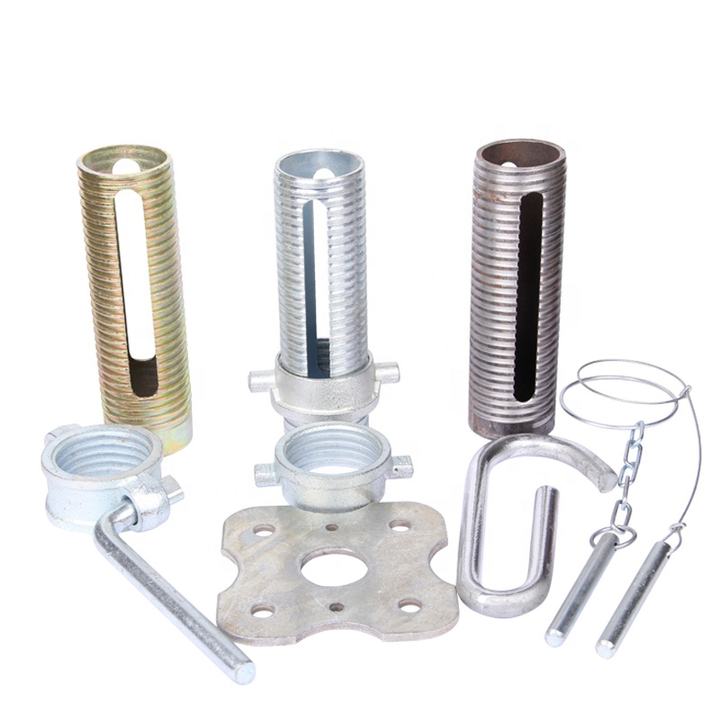

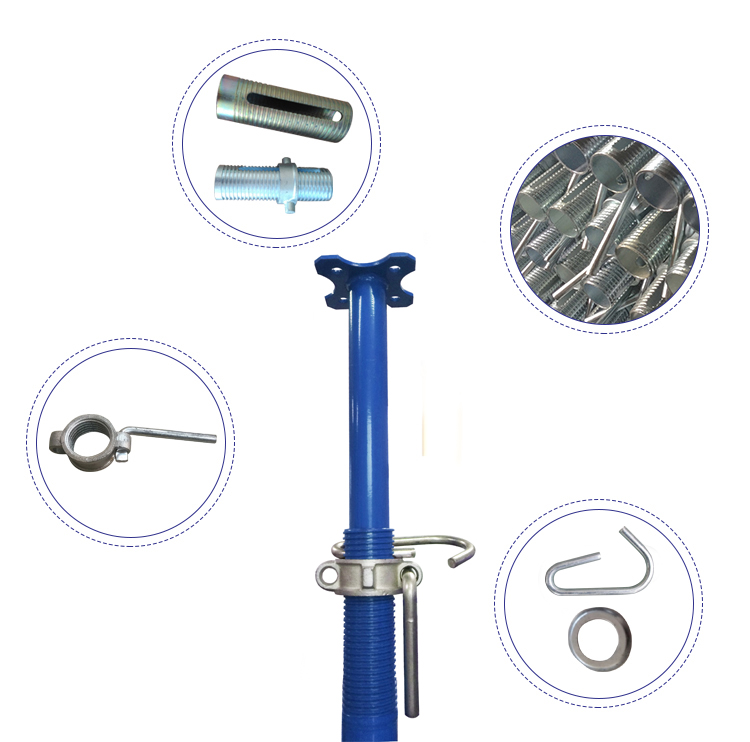

ADJUSTABLE STEEL SHORING PROP is mainly made of base plate, outer tube, inner tube, adjustable tube, swivel nut,cotter pin, upper plate and the accessories of folding tripod, head jack.

1. Brief Introduction
Adjustable Steel Floor Prop is a kind of support component widely used in any vertical and any shape of floor formwork. The structure is simple, flexible, assemble is convenient, so it is support component economical and practical.

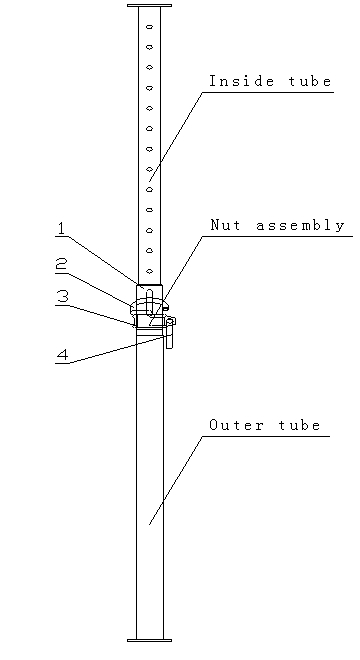

(1) Connection Pin

(2) Adjust Screw Tube

(3) Adjust Nut

(4) Handle

The adjustable floor prop mainly from inside and outer of the relative positions of the different fixed point to achieve. The fine-tuning of the branch located at the scene, according to the actual height adjustment.

2. Components
Article No.

Name
Weight
 (KG)
1
250A floor prop (75/60)
13.63
2
300A floor prop (75/60)
15.40
3
350A floor prop (75/60)
18.63
4
400A floor prop (75/60)
25.32
5
250B floor prop (60/48)
10.06
6
300B floor prop (60/48)
13.18
7
350B floor prop (60/48)
17.79
8
550B floor prop (88.5/75.5)
29.30
3. Floor Prop Bearing Capacity Table


Specification
Product Name
Galvanized Steel Prop Telescopic Adjustable Steel Props
Tube diameter
40-48 mm / 48-56 mm / 48/60 mm
Tube thickness
1.6mm-4mm
Plate
120*120*4/5/6mm

Length (Light Duty Prop)

0.6-1.1m/0.8-1.4m/1.6-2.9m/1.8-3.2m/2.0-3.6m/2.2-4.0m

Length(Heavy Duty Prop)

1.6-2.9m/1.8-3.2m/2.0-3.5m/2.0-3.6m/2.2-4m/3.0-5.0m/3.5-6m

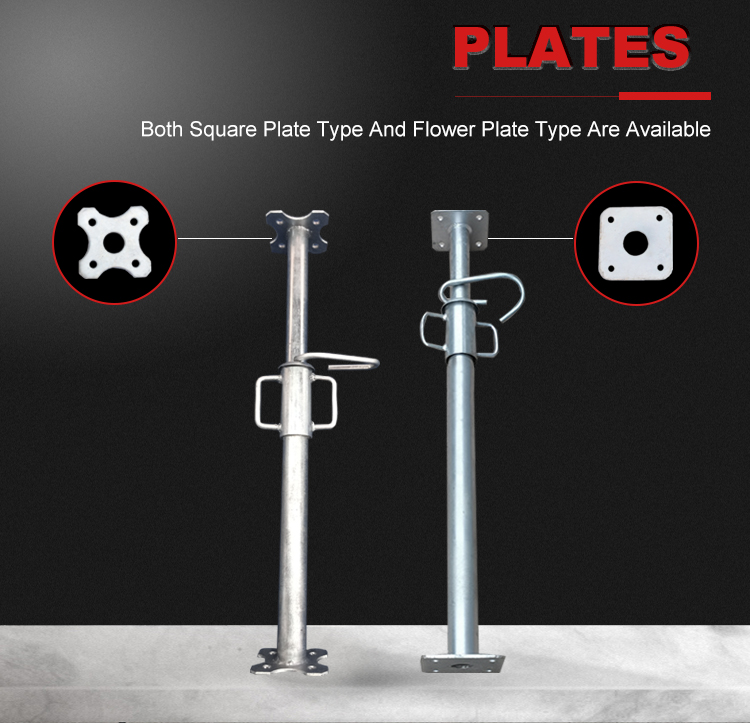

Plate type
suqare plate or flower plate
Surface finished
painted, powder coated, galvanized
Packing
1500 pcs or 2000 pcs / 20' FT container

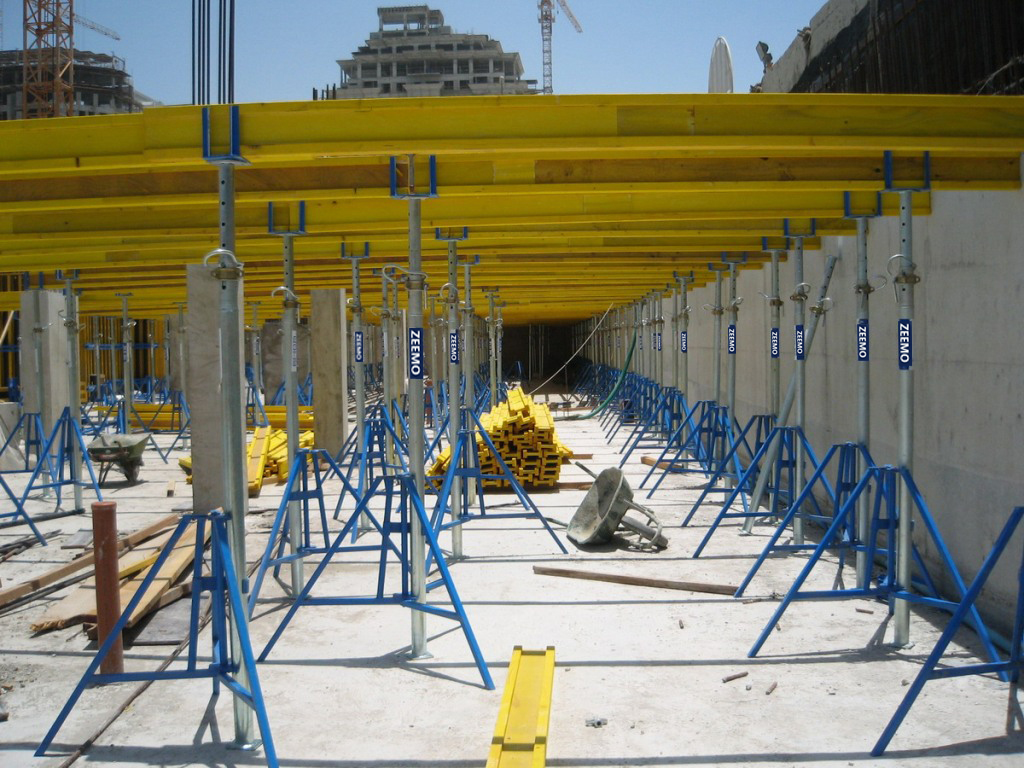

Project :TWO TOWERS
Date : 2006
Builder: NANTONG LIUJIAN CONSTRUCTION GROUP CO.
