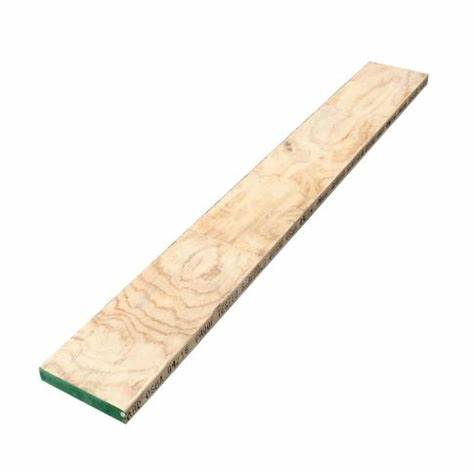

High quality scaffolding board pine wood LVL plank

LVL (Laminated Veneer Lumber) is a kind of plywood which is made from Peeling or chipping veneers. After drying and gluing the veneers, we put all of them or most of them together transversely, then hot press them. If all of the veneers are put transversely, we call it LVL.
Availability:
Quantity:
Inquire Add to Basket

  • ZM-SP38

  • Zeemo

Specification
High quality scaffolding board pine wood  LVL plank

LVL (Laminated Veneer Lumber) is a kind of plywood which is made from Peeling or chipping veneers. After drying and gluing the veneers, we put all of them or most of them together transversely, then hot press them. If all of the veneers are put transversely, we call it LVL.
plank lvl

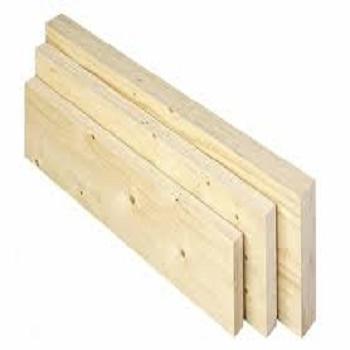

pine wood

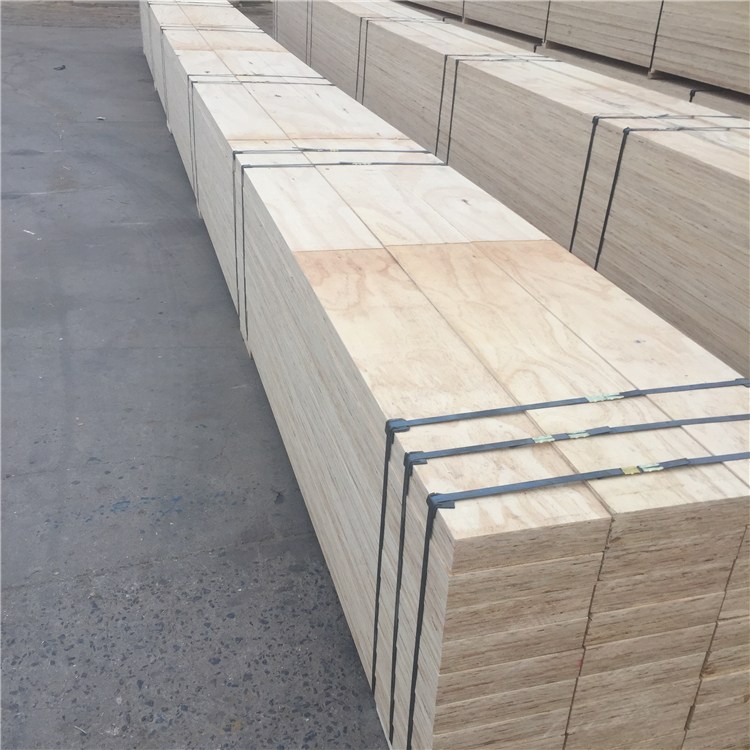

scaffold plank
Size
Width 225 mm * Length: 500/1000/1500/2000/2500/3000/4000 mm
Thickness
38mm
Tolerance
+/-1mm
Core
pine,Larch
Glue emission level
Carb P2(EPA), E0,
Usage
scaffolding planks
Moisture Content
12%~15%
Product Description
scaffolding accessories

FEATURES
1.Flat, beautiful, Low moisture content, Without moldy effect;
2.High design values for bending, stiffness and shear strength ;
3.Resists shrinking, warping, splitting and checking ;
4.Ordinary nail assembly - installs as easily as ordinary lumber;
5.High strength-to-weight ratio - more than 40 stronger than solid sawn products

TEST RESULT
SPECIMEN SPECIFICATION
38*225*3048mm ( Thickness * Width * Length )
Test Item
Test Method
Test Result
Standard
Conclusion
Stiffness Test
AS/NZS
1572013
Appendix A
Load on the edge at the
midspan
Defection=16.46 mm
≦ 18mm
PASS
The sample did not dislodge from the point of support
Requirement in AS/NZS 1577:2013
Load on the center of the midspan
Defection =17.28
≦ 18mm
The sample did not dislodge from the point of support
Requirement in AS/NZS 1577:2013

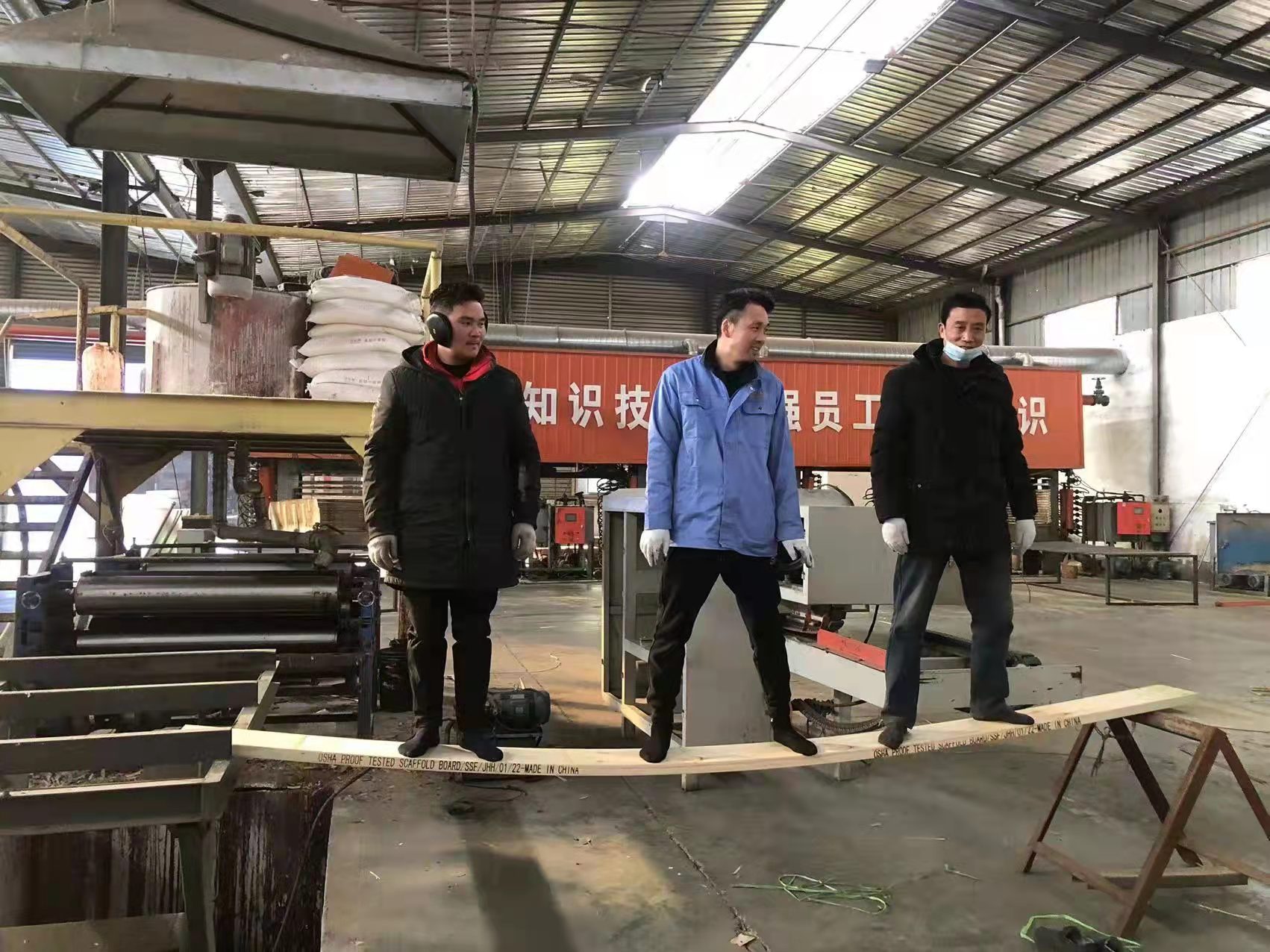

Strength Test
AS/NZS
1572013
Appendix B
Paragraph B4(a) to (e)
Permanent deformation
1.75 mm
≦ 3.6mm
PASS
Observation
1. The sample did not dislodge from the point of support
2. Plank does not show any visual signs of distress,bucking,and audible signs of distress
Requirement in AS/NZS 1577:2013
Load at failure
8.61 KN
≧4.84 KN
Mode of failure
The sample failed progressively and did not break into separate parts
Requirement in AS/NZS 1577:2013
plywood plank

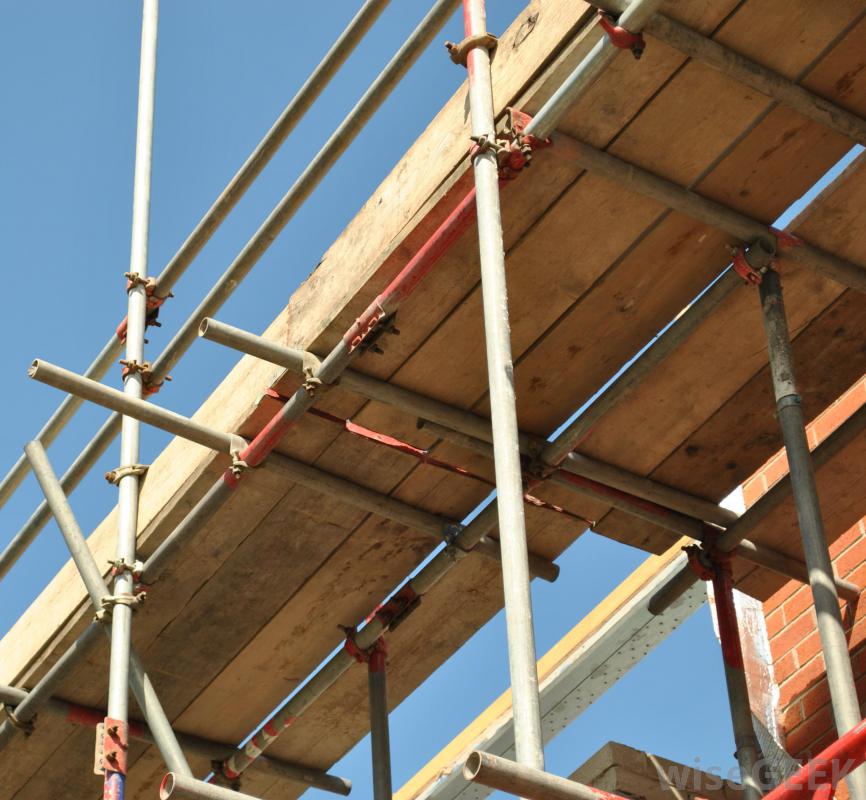

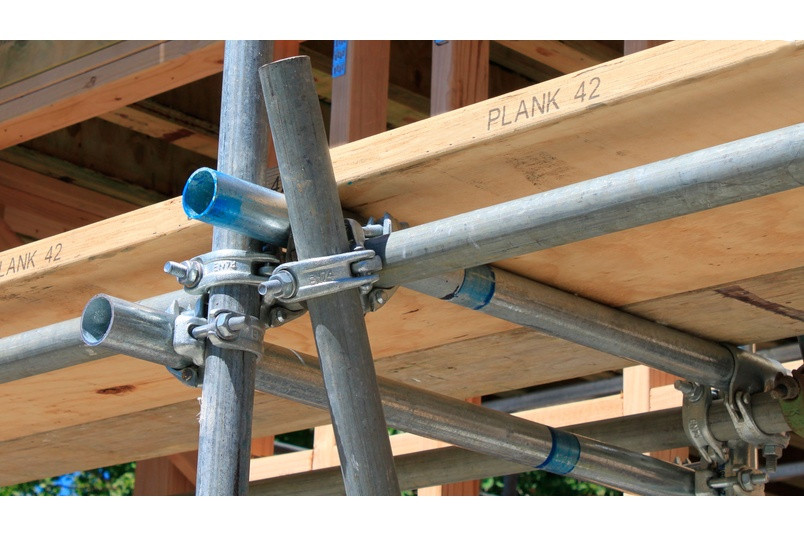

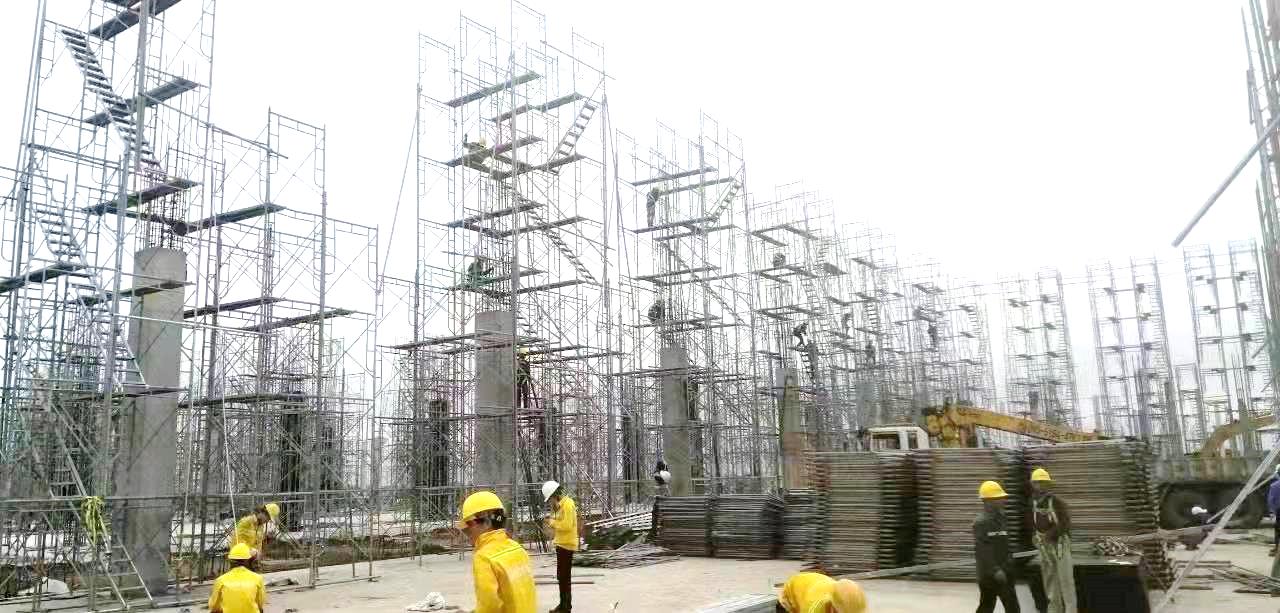

Application

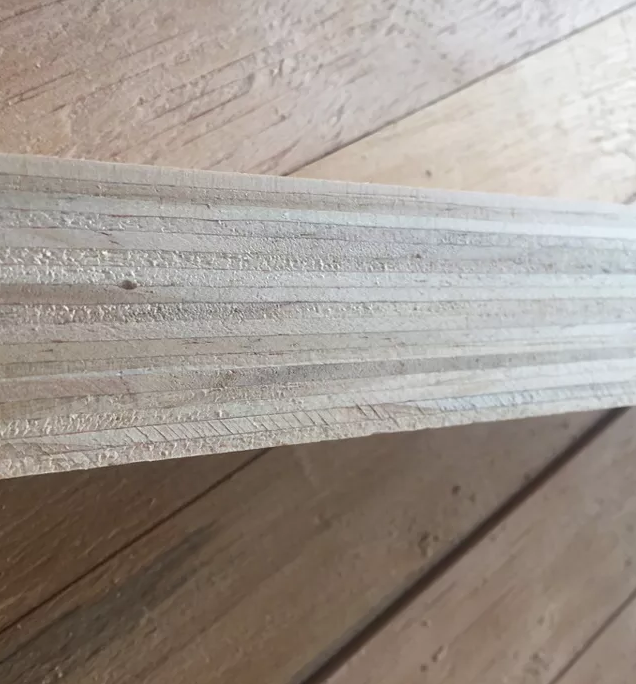

lvl wood

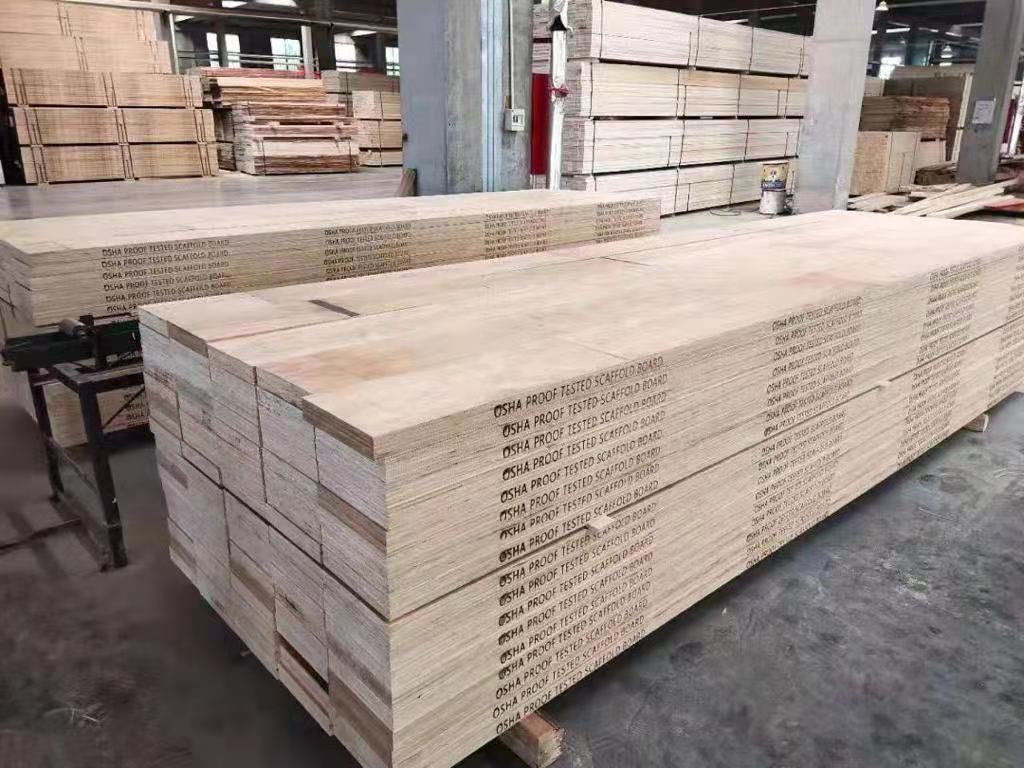

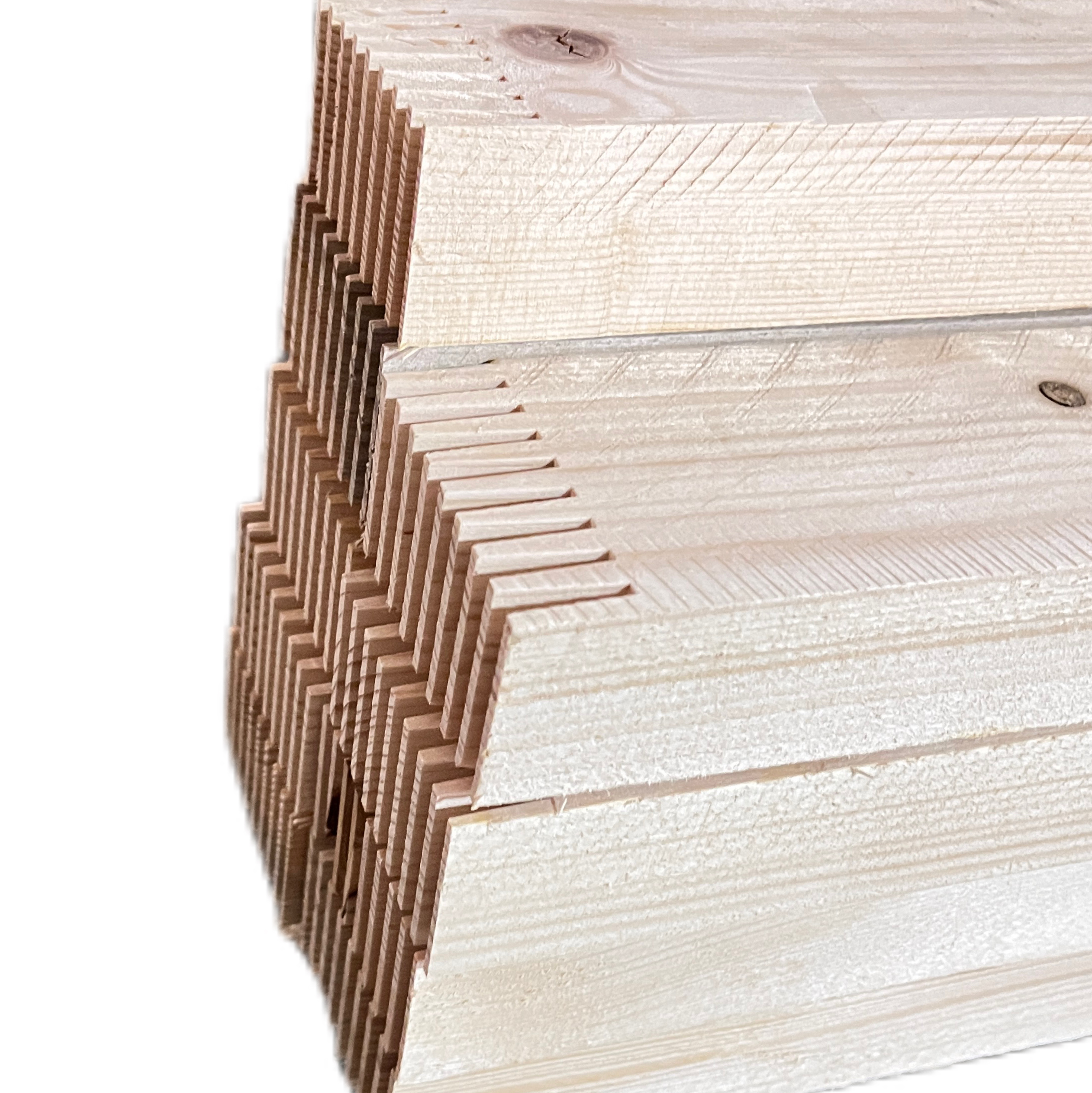

LVL PLANK

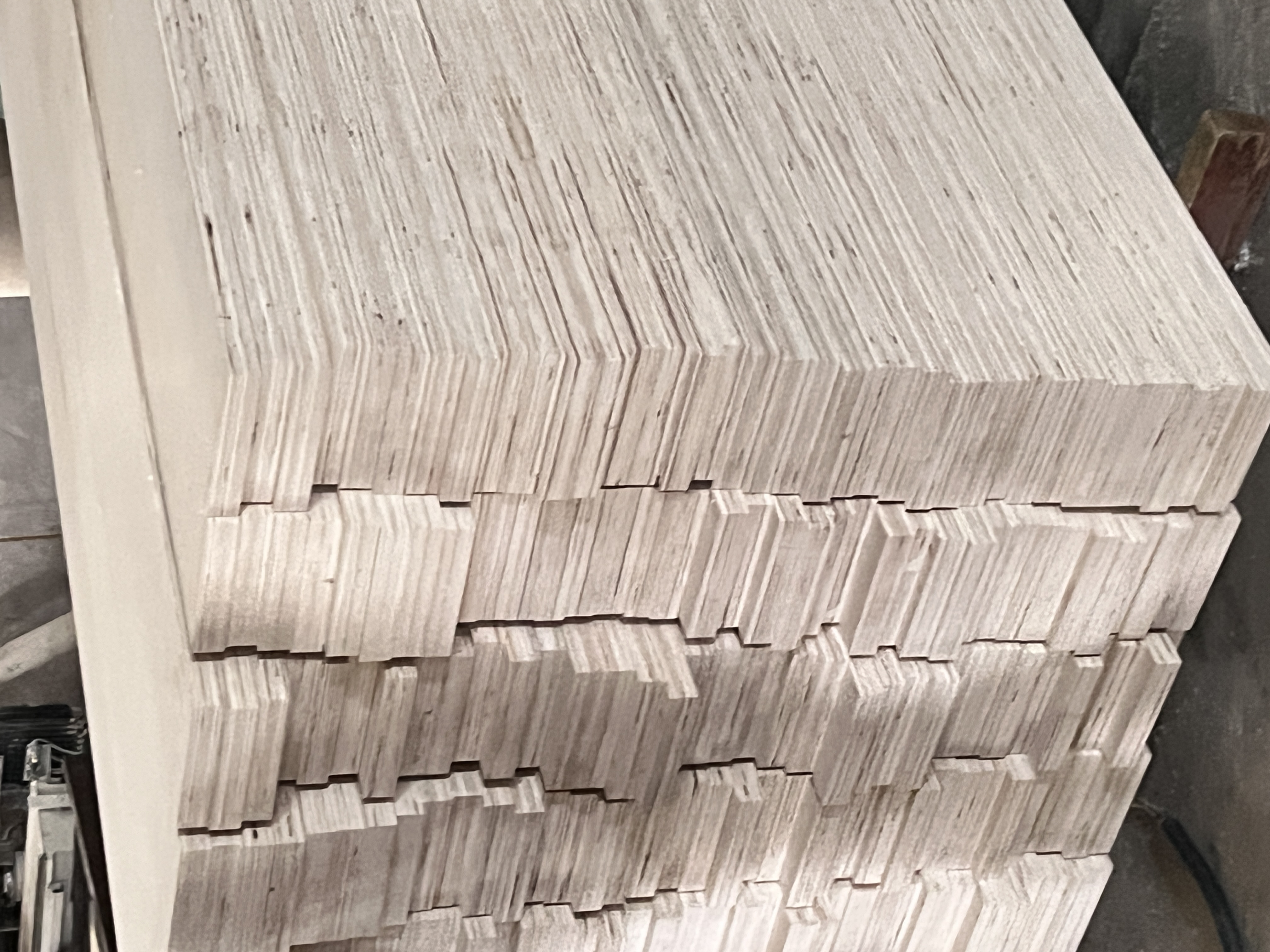

Pine planks
