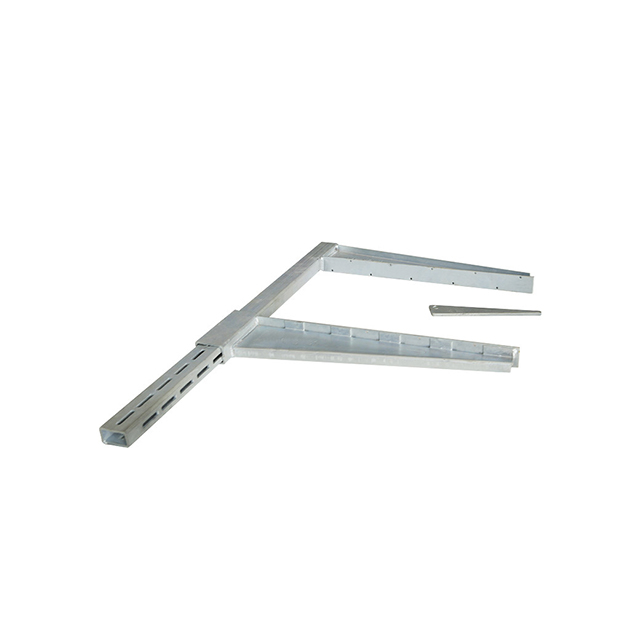

Beam Clamp system from ZEEMO Formwork is a better improvement over the traditional of reinforcement beam formwork by a tie rod free way on fasten tight and find support from the ground.
Accessories: 1 set equal to 2 bar with 2 wedge pin (Wedges pin/Adjustable stand/Bar)
Application:

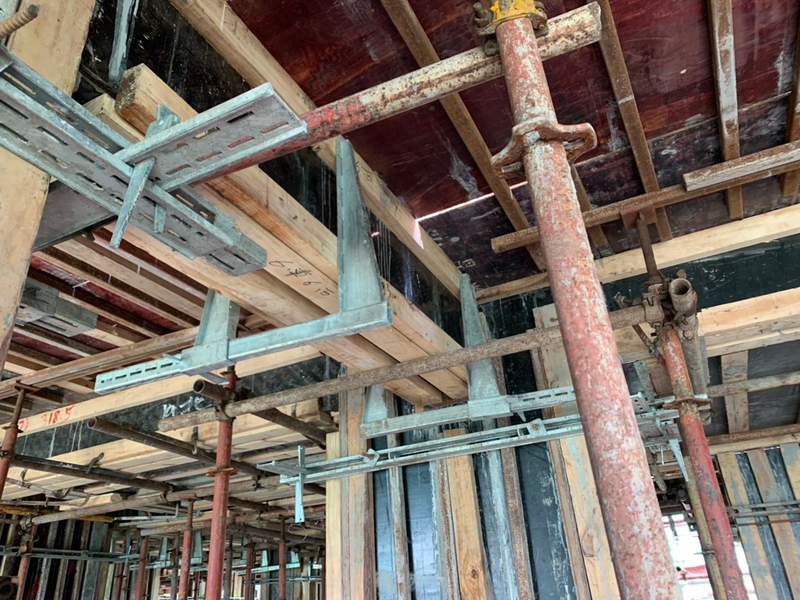

To withstand the pressure against the beam formwork while concrete pouring
Main effect:
1. Fasten the beam formwork
2. Support the beam formwork
3. Withstand the pressure from the beam formwork while concrete forming.
Features:
1. Made by Q235B steel,galvanized
2. Adjustable size by slots
3. Two wedge pins to keep fastening
Advantages:
1. Quick handle, installation & dismantle. 2. Lightweight make simple in operation. 3. Self-supportive 4. Adjustable ,covering all range in 200-600mm width,height upto 800mm,200-600mm 5. Highly re-usable tools
Intallation:

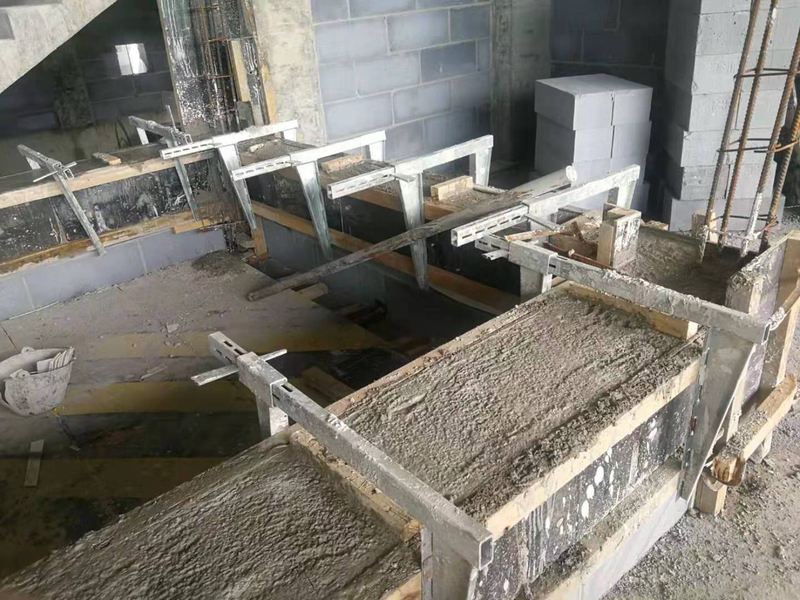

To fasten the beam formwork ,choose the right dimension beam clamp available from which 200mm to 600mm,place the fix end and bottom against to the formwork. Push the adjustable end against to the other side of the beam,plug in the wedge and fasten the clamp by knocking the wedge down by hammer.
Contact Us
Product Description
Material
Q235 Steel galvanized
Standard
DIN GB ISO JIS BA ANSI
Grade
Premium
Tool
Hammer
Weight
6 kg -7 kg
Use
Slab beam, ground beam, tie beam
Size
200-400mm , 400-600mm
Height
510mm
