3-ply panel

3-ply panel

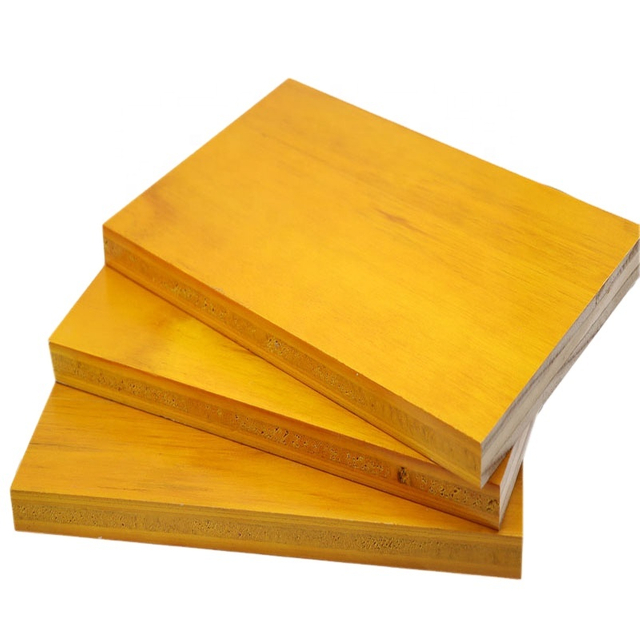

The 3-ply panel is composed of three layers of solid wood, the inner layer of wood is perpendicular to the outer layer, which gives it excellent stability. In general, the thickness of the outer layer of wood is 2 to 5 mm, and the thickness of the inner layer is 5 to 15 mm. Usually used indoors, it can be used for concrete formwork after lamination or coating.

5-ply pane is to add more planks on the basis of three layers. It can be used outdoors, but avoid using it alone to construct permanent structures such as warehouses and houses.

Multilayer refers to seven or more layers of plywood. Multi-layer plywood is strong and durable, and can be used for heavy-duty parts such as roofs and frames.

Interestingly, plywood with more layers is stronger for the same thickness.

ZEEMO supports customization:

1.Higher resistance: Thanks to the reduced slats and lack of perimeter frame in the inner layer.

2.Longer lasting: The melamine coating along with the addition of iron oxide allows for a stronger resistance to abrasion and exposure to at mospheric agents.

3.Easy of cut: The absence of a perimeter frame in the inner layer allows the panel to be freely cut at any point without altering its original structure.

4.No plugs or surface resin accumulation: our production process allows us to eliminate any traces of resin and avoid knothole plugs.

5.Not shiny but resistant: the specialized coating used on the surface is not shiny, but has been developed to last over time and protect the panel.

6.The surfaces of the panels undergo specialized heat treatment in order to obtain high resistances to abrasion and weather, consequently displaying a less glossy surface.
